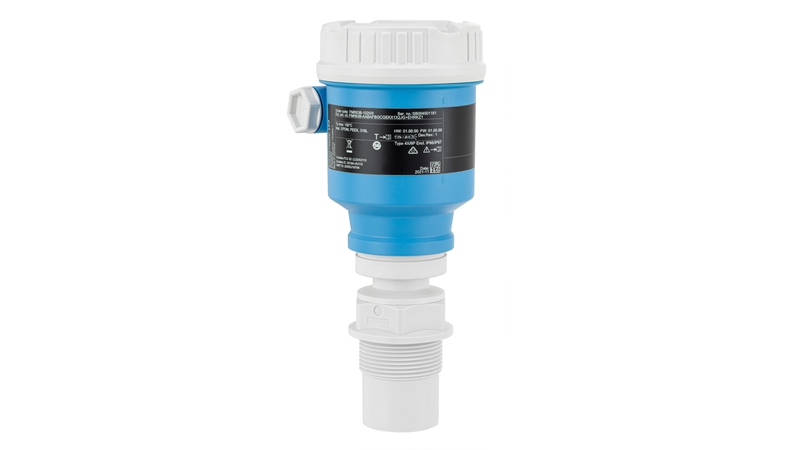

Endress+Hauser Micropilot FMR60B – 80 GHz radar sensor
| Accuracy | +/-1 mm (0.04 in) |
|---|---|
| Ambient temperature | -40 … +85 °C (-40 … +185 °F) |
| Application limits | Process temp. <-40°C (-40°F) or > 200°C (392°F) -> FMR62B Very aggressive media -> FMR62B Turbulences, stilling well and bypass -> FMR62B Strong foam and interfaces --> FMP5x |
| Certificates / Approvals | IEC Ex, ATEX, CSA C/US, EAC Ex, JPN Ex, KC Ex, INMETRO Ex, NEPSI Ex, UK Ex |
| Characteristic / Application | For simple continuous non-contact level measurements in liquids, pastes, and slurries; Not influenced by changing media, temperature differences, gas phases or steam; For vessels with many internals |
| Communication | 4...20 mA HART Additional analog or switch output PROFIBUS PA PROFINET with Ethernet-APL Bluetooth® wireless technology and app (optional) |
| Design approvals | Acceptance test certificate 3.1, EN10204; Declaration of Conformity ASME B31.3; AD2000; PMI test; CRN approval |
| Frequency | W-Band (~80 GHz) |
| Hygienic approvals | EU Food Contact Material (EC) 1935/2004; US Food Contact Material FDA CFR 21 |
| Main wetted parts | PVDF, PTFE or PEEK |
| Marine approval | ABS, LR, BV, RINA, DNV |
| Max. measurement distance | 50 m (164 ft) |
| Measuring principle | Level radar |
| Options | Display, Customized settings, App 'SmartBlue' for commissioning and operation via Bluetooth Gas-tight implementation; Overvoltage protection; PWIS free |
| Process Connection | Thread: G3/4" and 1-1/2", MNPT 3/4" and 1-1/2"; Flange: UNI DN80...DN150; Mounting bracket |
| Process pressure / max. overpressure limit | Vacuum...20 bar (290 psi) |
| Process temperature | -40 … +200 °C (-40 … +392 °F) |
| Safety approvals | Overfill protection WHG; SIL 2 |
| Specialities | Heartbeat Technology; SIL 2 according to IEC 61508; Bluetooth® commissioning; Operation and maintenance with SmartBlue App; HistoROM; RFID TAG for easy identification |
| Supply / Communication | 2-wire (HART/ PROFIBUS PA) PROFINET with Ethernet-APL Bluetooth® wireless technology |
Frequently Asked Questions
How do I get pricing for FMR60B?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the FMR60B?
FMR60B is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of FMR60B?
Key specifications include Accuracy: +/-1 mm (0.04 in); Ambient temperature: -40 … +85 °C (-40 … +185 °F); Application limits: Process temp. <-40°C (-40°F) or > 200°C (392°F) -> FMR62B Very aggressive media -> FMR62B Turbulences, stilling well and bypass -> FMR62B Strong foam and interfaces --> FMP5x; Certificates / Approvals: IEC Ex, ATEX, CSA C/US, EAC Ex, JPN Ex, KC Ex, INMETRO Ex, NEPSI Ex, UK Ex. The full specification table on this page lists every published attribute for this part.
How quickly can FMR60B ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Endress+Hauser Endress+Hauser Radar measurementMicropilot FMR60

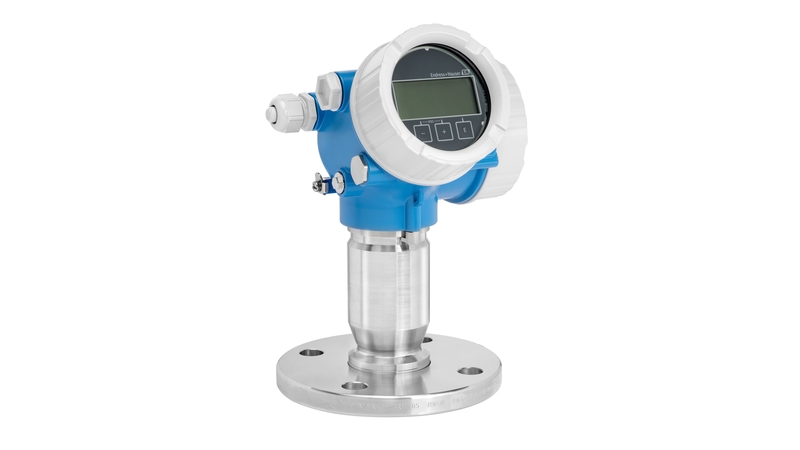

Endress+Hauser Endress+Hauser Radar measurementMicropilot FMR62
