Endress+Hauser Micropilot FMR56
| Accuracy | +/- 3 mm (0.12 in) |
|---|---|
| Ambient temperature | -40 °C...+80 °C (-40 °F...+176 °F) |
| Antenna | Horn DN80/3", PP plated Horn DN100/4", PP plated |
| Application limits | DK < 1.6 Reduction of the max. possible measuring range through: Media with poor reflection properties Angle of repose Extremely loose surfaces of bulk solids, e.g. bulk solids with low bulk weight for pneumatic filling Build-up, above all of moist products |
| Certificates / Approvals | ATEX, FM, CSA C/US, IEC Ex, INMETRO, NEPSI, EAC Ex, KC, UK Ex |
| Characteristic / Application | For simple applications: Reliable non-contact level measurements in silos or storage tanks for bulk solids |
| Communication | 4...20 mA HART PROFIBUS PA FOUNDATION Fieldbus Bluetooth® wireless technology |
| Frequency | K-band (~26 GHz) |
| Main wetted parts | PP, UP |
| Max. measurement distance | 30 m (98 ft) |
| Measuring principle | Level radar solid |
| Options | Display, Customized parameterization Remote operation via SmartBlue App using Bluetooth® |
| Process Connection | Flange: UNI DN80...DN150 (3"...6") Mounting bracket |
| Process pressure / max. overpressure limit | Vacuum...3 bar (Vacuum...43.5 psi) |
| Process temperature | -40 °C...+80 °C (-40 °F...+176 °F) |
| Safety approvals | SIL |
| Specialities | Heartbeat Technology, Bluetooth® commissioning, Operation and maintenance SmartBlue App, Safety and reliability with Multi- Echo Tracking, HistoROM, RFID TAG for easy identification, |
| Supply / Communication | 2-wire (HART/ PROFIBUS PA/ FOUNDATION Fieldbus) 4-wire (HART) Bluetooth® wireless technology and App (optional) |
Frequently Asked Questions
How do I get pricing for FMR56?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the FMR56?
FMR56 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of FMR56?
Key specifications include Accuracy: +/- 3 mm (0.12 in); Ambient temperature: -40 °C...+80 °C (-40 °F...+176 °F); Antenna: Horn DN80/3", PP plated Horn DN100/4", PP plated; Application limits: DK < 1.6 Reduction of the max. possible measuring range through: Media with poor reflection properties Angle of repose Extremely loose surfaces of bulk solids, e.g. bulk solids with low bulk weight for pneumatic filling Build-up, above all of moist products. The full specification table on this page lists every published attribute for this part.
How quickly can FMR56 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

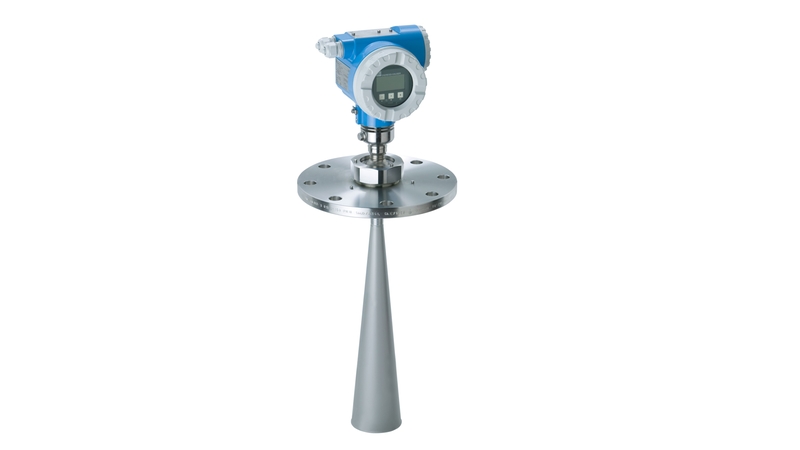

Endress+Hauser Endress+Hauser Micropilot S FMR540
Endress+Hauser Endress+Hauser Radar measurementTime-of-FlightMicropilot FMR57
Endress+Hauser Endress+Hauser Radar measurementMicropilot FMR60

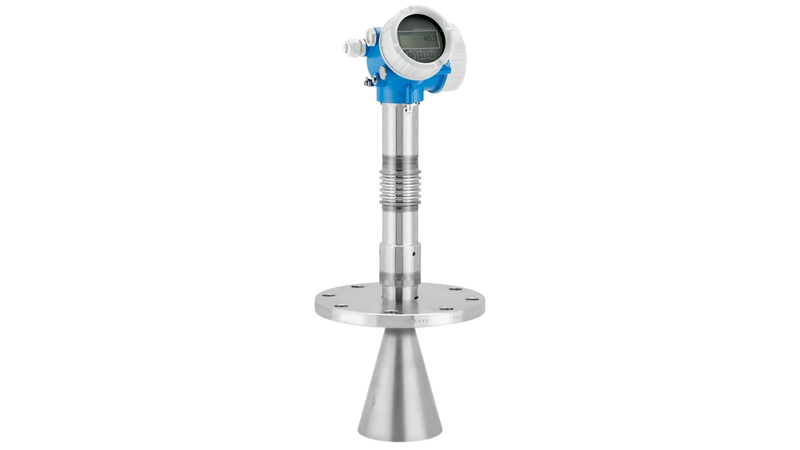

Endress+Hauser Endress+Hauser Radar measurementTime-of-FlightMicropilot FMR54
