Endress+Hauser Proline Promass S 300 Coriolis flowmeter
| Ambient temperature range | Standard: –40 to +60 °C (–40 to +140 °F) Option: –50 to +60 °C (–58 to +140 °F) |
|---|---|
| Degree of protection | IP66/67, type 4X enclosure IP69 |
| Digital communication | HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, MODBUS TCP over Ethernet-APL, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA |
| Display/Operation | 4-line backlit display with touch + control (operation from outside) Configuration via local display and operating tools possible Remote display available |
| Functional safety | Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511 |
| Hazardous area approvals | ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, UK Ex, KC |
| Hygienic approvals and certificates | 3-A, EHEDG, cGMP |
| Inputs | Status input 4-20 mA input |
| Material certificates | 3.1 material |
| Max. measurement error | Mass flow (liquid): ±0.10 % Volume flow (liquid): ±0.10 % Density (liquid): ±0.0005 g/cm³ |
| Max. process pressure | PN 40, Class 150, 20K |
| Measured variables | Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration |
| Measuring principle | Coriolis |
| Measuring range | 0 to 70 000 kg/h (0 to 2570 lb/min) |
| Medium temperature range | –50 to +150 °C (–58 to +302 °F) |
| Metrological approvals and certificates | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation) |
| Nominal diameter range | DN 8 to 50 (⅜ to 2") |
| Outputs | 3 outputs: 4-20 mA HART (active/passive) 4-20 mA WirelessHART 4-20 mA (active/passive) Pulse/frequency/switch output (active/passive) Double pulse output (active/passive) Relay output |
| Power Supply | DC 24 V AC 100 to 230 V AC 100 to 230 V / DC 24 V (non-hazardous area) |
| Pressure approvals and certificates | PED, CRN |
| Product headline | Easy‐to‐clean, self‐drainable single‐tube system with a compact, easily accessible transmitter. Dedicated to applications requiring optimal cleanability under hygienic conditions. |
| Product safety | CE, C-tick, EAC marking |
| Sensor features | Increased process safety – easily cleanable and fully self-drainable tube design. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs. Large range of hygienic process connections. 3-A and EHEDG conform. Fast recovery from CIP/SIP. |
| Sensor housing material | 1.4301 (304), corrosion resistant |
| Transmitter features | Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology. Compact hygienic dual-compartment housing with IP69 and up to 3 I/Os. Backlit display with touch control and WLAN access. Remote display available. |
| Transmitter housing material | AlSi10Mg, coated; stainless steel for hygenic transmitter design |
| Wetted materials | Measuring tube: 1.4435 (316L) Connection: 1.4435 (316L); 1.4404 (316/316L)" |
Frequently Asked Questions
How do I get pricing for 8S3B?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 8S3B?
8S3B is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 8S3B?
Key specifications include Ambient temperature range: Standard: –40 to +60 °C (–40 to +140 °F) Option: –50 to +60 °C (–58 to +140 °F); Degree of protection: IP66/67, type 4X enclosure IP69; Digital communication: HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, MODBUS TCP over Ethernet-APL, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA; Display/Operation: 4-line backlit display with touch + control (operation from outside) Configuration via local display and operating tools possible Remote display available. The full specification table on this page lists every published attribute for this part.
How quickly can 8S3B ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

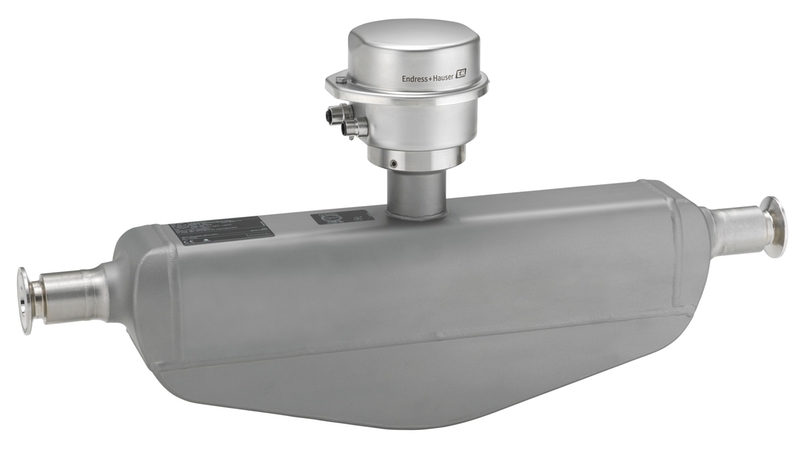

Endress+Hauser Endress+Hauser Proline Promass S 100 Coriolis flowmeter
Endress+Hauser Endress+Hauser Proline Promass S 500 Coriolis flowmeter

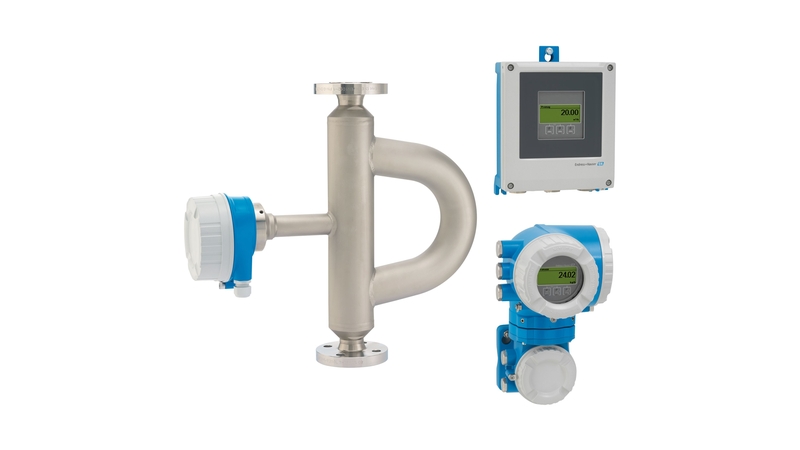

Endress+Hauser Endress+Hauser Proline Promass Q 500 Coriolis flowmeter

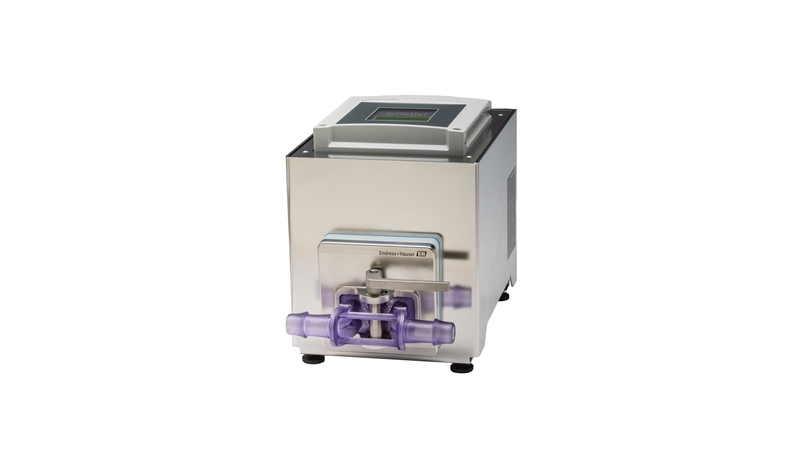

Endress+Hauser Endress+Hauser Proline Promass U 500 Coriolis flowmeter

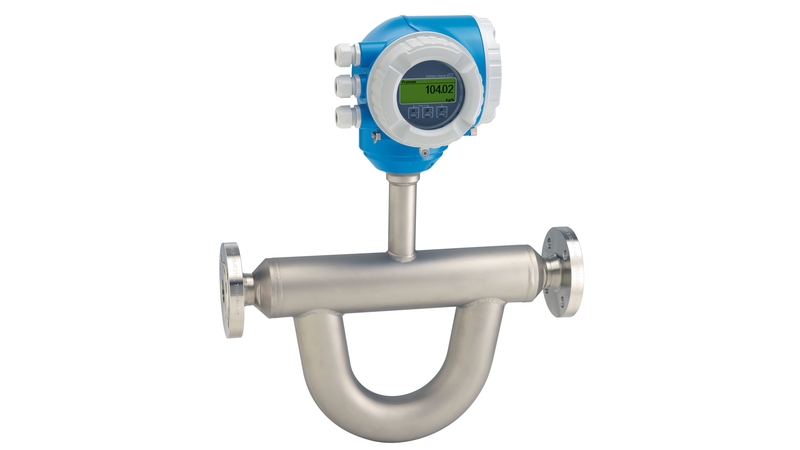

Endress+Hauser Endress+Hauser Proline Promass Q 300 Coriolis flowmeter
