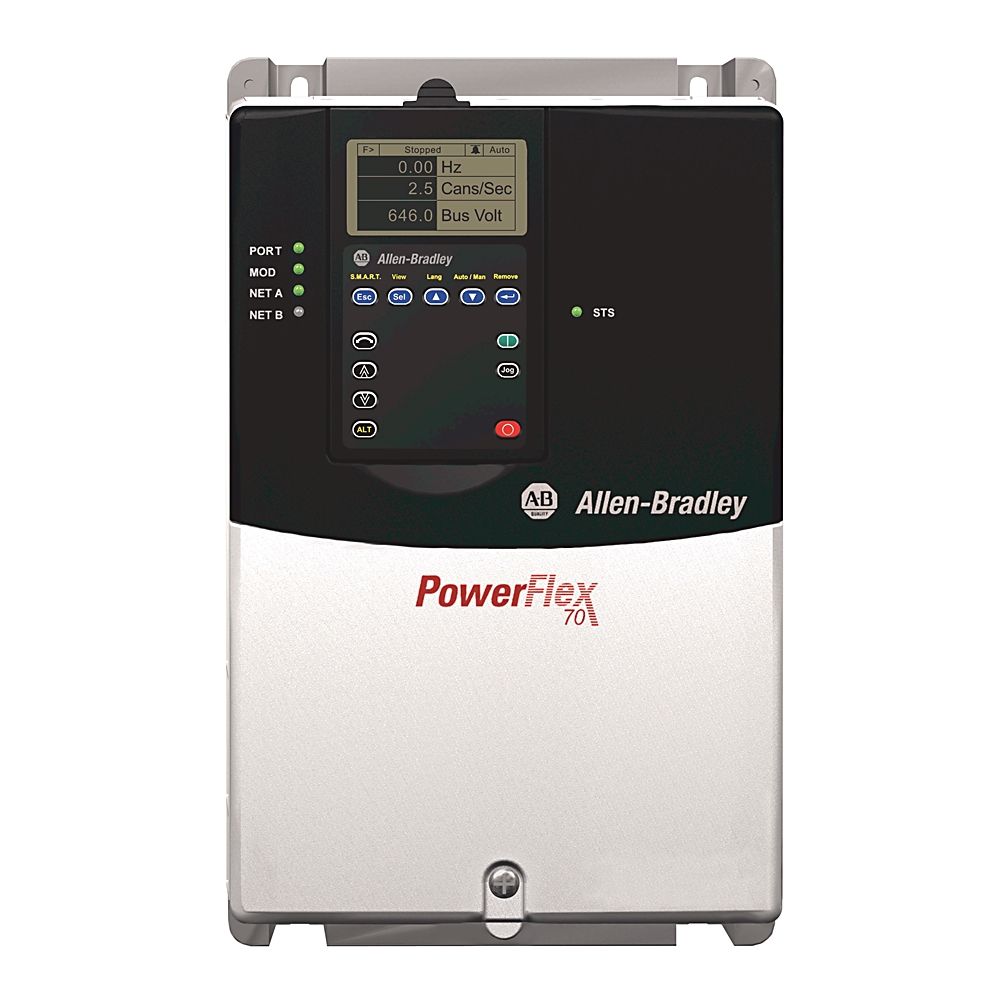

Allen-Bradley PowerFlex 70 AC Drive 9 A at 7.5 Hp 20A 20AE9P0A3AYNNNG0
Allen-Bradley 20AE9P0A3AYNNNG0 - industrial components - Storage Temperature: -40 °C; Relative Humidity: 5...95% noncondensing; Lifecycle Status: Discontinued.
The 20AE9P0A3AYNNNG0 from Allen-Bradley is listed under industrial components in our catalog. The manufacturer's published data for this part number specifies Storage Temperature: -40 °C and Relative Humidity: 5...95% noncondensing.
Published specifications for this part include Lifecycle Status: Discontinued; Build America, Buy America: No; Repair Options Available: Yes; Degree of protection (IP): IP20; Degree of protection (NEMA): 1; Altitude: 1000 m (3300 ft.) maximum without derating; Application in domestic- and commercial area permitted: true; Application in industrial area permitted: true; Efficiency: 97.5% at rated A, nominal line volts; Input frequency tolerance: 47 Hz; Integrated breaking resistance: false; Internal dynamic brake resistors: 115 ohm. See the Specifications tab on this page for the full technical table.
| Altitude | 1000 m (3300 ft.) maximum without derating |
|---|---|
| Application in domestic- and commercial area permitted | true |
| Application in industrial area permitted | true |
| Build America, Buy America | No |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | 1 |
| Efficiency | 97.5% at rated A, nominal line volts |
| Input frequency tolerance | 47 Hz |
| Integrated breaking resistance | false |
| Internal dynamic brake resistors | 115 ohm |
| Lifecycle Status | Discontinued |
| Line voltage, nom | 600V @ 500...600V drive rating, 575V nominal motor voltage |
| Mains frequency | 60 Hz |
| Mains voltage | 600 V |
| Number of analogue inputs | 2 |
| Number of analogue outputs | 1 |
| Number of digital inputs | 6 |
| Number of digital outputs | 2 |
| Number of HW-interfaces RS-232 | 2 |
| Number of HW-interfaces RS-485 | 2 |
| Number of HW-interfaces USB | 2 |
| Number of phases input | 3 |
| Number of phases output | 3 |
| Relative Humidity | 5...95% noncondensing |
| Relative symmetric net voltage tolerance | 10 % |
| Repair Options Available | Yes |
| Shock | 15 G peak for 11 ms duration (±1.0 ms) |
| Storage Temperature | -40 °C |
| Supporting protocol for CAN | true |
| Supporting protocol for DeviceNet | true |
| Supporting protocol for EtherNet/IP | true |
| Supporting protocol for Modbus | true |
| Supporting protocol for PROFIBUS | true |
| Supporting protocol for TCP/IP | true |
| Vibration | 0.152 mm (0.006 in) displacement, 1 G peak |
| Voltage tolerance | -10 % |
| With control element | true |
Frequently Asked Questions
How do I get pricing for 20AE9P0A3AYNNNG0?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 20AE9P0A3AYNNNG0?
20AE9P0A3AYNNNG0 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 20AE9P0A3AYNNNG0?
Key specifications include Altitude: 1000 m (3300 ft.) maximum without derating; Application in domestic- and commercial area permitted: true; Application in industrial area permitted: true; Build America, Buy America: No. The full specification table on this page lists every published attribute for this part.
How quickly can 20AE9P0A3AYNNNG0 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
