Weidmuller SAKK 4
Weidmuller 9502600000 - Feed-through and PE terminal Blocks - Width: 8 mm mm; Height: 40 mm mm; Storage Temperature: -25 °C...55 °C.
This listing covers the Weidmuller 9502600000, a part number in the Feed-through and PE terminal Blocks category. The manufacturer's published data for this part number specifies Width: 8 mm mm and Height: 40 mm mm.
Feed-through terminal block, Screw connection, beige, 4 mm², 32 A, 800 V, Number of connections: 2
Key manufacturer data on file for this item includes Storage Temperature: -25 °C...55 °C; Nominal current: 32 A; Type of mounting: Snap-on; Ambient temperature: -60 °C…205 °C; Type: SAKK 4; Depth: 53 mm; Net weight: 30.14 g; Colour: beige; Rated voltage: 800 V; Stripping length: 10 mm; Blade Size: 0.6 x 3.5 mm; ROHS: Conform. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature | -60 °C…205 °C |
|---|---|
| Basic material | Ceramic |
| Blade Size | 0.6 x 3.5 mm |
| Certificate No. (ATEX) | TUEV18ATEX8208U |
| Certificate No. (CSA) | 12400-290 |
| Certificate No. (cURusEX) | E184763 |
| Certificate No. (IECEX) | IECEXTUR18.0018U |
| Certificate No. (UR) | E60693 |
| Clamping range, max. | 6 mm² |
| Clamping range, min. | 0.33 mm² |
| Clamping screw | M 3 |
| Colour | beige |
| Conductor size Factory wiring max. (UR) | 12 AWG |
| Conductor size Factory wiring min. (UR) | 26 AWG |
| Conductor size Field wiring max. (UR) | 12 AWG |
| Conductor size Field wiring min. (UR) | 26 AWG |
| Connection cross-section, finely stranded, min. | 0.33 mm² |
| Connection cross-section, stranded, max. | 4 mm² |
| Connection cross-section, stranded, min. | 0.33 mm² |
| Connection direction | on side |
| Connection type, additional connection | Screw connection |
| Continuous operating temp., max. | 250 °C |
| Continuous operating temp., min. | -60 °C |
| Current (ATEX) | 32 A |
| Current (IECEX) | 32 A |
| Current at maximum wires | 41 A |
| Current size C (CSA) | 36 A |
| Current size C (UR) | 30 A |
| Depth | 53 mm |
| Depth (inches) | 2.087 inch |
| ECLASS 14.0 | 27-25-01-01 |
| ECLASS 15.0 | 27-25-01-01 |
| End cover plate required | Yes |
| ETIM 10.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| Ex 2014/34/EU label | II 2 G D |
| Explosion-tested version | Yes |
| Gauge to IEC 60947-1 | A4 |
| GTIN (EAN) | 4008190550585 |
| Height | 40 mm mm |
| Height (inches) | 1.575 inch |
| Installation advice | Direct mounting |
| Levels cross-connected internally | No |
| Marking EN 60079-7 | Ex eb II C Gb |
| Max. voltage (ATEX) | 440 V |
| Max. voltage (IECEX) | 440 V |
| Mounting rail | TS 32 |
| N-function | No |
| Net weight | 30.14 g |
| Nominal current | 32 A |
| Number of clamping points per level | 2 |
| Number of connections | 2 |
| Number of levels | 1 |
| Number of potentials | 1 |
| Number of potentials per tier | 1 |
| Number of similar terminals | 1 |
| Open sides | right |
| Order No. | 9502600000 |
| PE connection | No |
| PE function | No |
| PEN function | No |
| Pollution severity | 3 |
| Power loss in accordance with IEC 60947-7-x | 1.02 W |
| Qty. | 25 items |
| Rated cross-section | 4 mm² |
| Rated DC voltage | 800 V |
| Rated impulse withstand voltage | 8 kV |
| Rated voltage | 800 V |
| REACH SVHC | No SVHC above 0.1 wt% |
| ROHS | Conform |
| RoHS Compliance Status | Compliant without exemption |
| Standards | IEC 60947-7-1 |
| Storage Temperature | -25 °C...55 °C |
| Stripping length | 10 mm |
| Tightening torque (max) | 0.5 Nm Nm |
| Tightening torque, min. | 0.5 Nm |
| Type | SAKK 4 |
| Type of connection | Screw connection |
| Type of mounting | Snap-on |
| UL 94 flammability rating | None |
| Version | Feed-through terminal block, Screw connection, beige, 4 mm², 32 A, 800 V, Number of connections: 2 |
| Voltage size C (CSA) | 600 V |
| Voltage size C (UR) | 600 V |
| Volume resistance according to IEC 60947-7-x | 1 mΩ |
| Width | 8 mm mm |
| Width (inches) | 0.315 inch |
| Wire connection cross section AWG, max. | AWG 10 |
| Wire connection cross section AWG, min. | AWG 22 |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross section, finely stranded, min. | 0.33 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.33 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.33 mm² |
| Wire connection cross-section, solid core, max. | 6 mm² |
| Wire connection cross-section, solid core, min. | 0.33 mm² |
| Wire cross section max. (ATEX) | 6 mm² |
| Wire cross section max. (CSA) | 10 AWG |
| Wire cross section max. (IECEX) | 6 mm² |
| Wire cross section min. (CSA) | 26 AWG |
Frequently Asked Questions
How do I get pricing for 9502600000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 9502600000?
9502600000 is a Weidmuller part. KKM Solutions sources Weidmuller components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 9502600000?
Key specifications include Ambient temperature: -60 °C…205 °C; Basic material: Ceramic; Blade Size: 0.6 x 3.5 mm; Certificate No. (ATEX): TUEV18ATEX8208U. The full specification table on this page lists every published attribute for this part.
How quickly can 9502600000 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Weidmuller Weidmuller SB S S2C 2.5

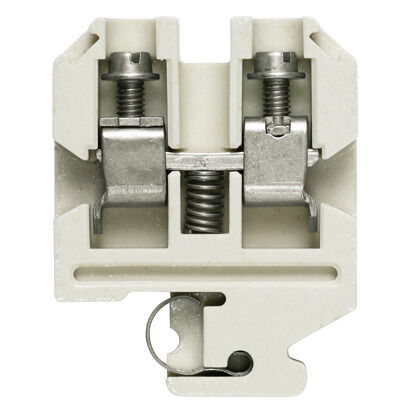

Weidmuller Weidmuller SAKK 10
