Weidmuller S2T 2.5

Name: Weidmuller S2T 2.5
Brand: Weidmuller
SKU: 2902380000

Brand: Weidmuller SKU: 2902380000 Mfr Part #: 2902380000

Ships Same Day* Worldwide Shipping

Multi-tier modular terminal, SNAP IN, dark beige, 2.5 mm², 800 V, Number of connections: 4, Number of levels: 2, TS 35, V-0

Ambient temperature	-60 °C…85 °C
Basic material	Wemid
Blade Size	0.6 x 3.5 mm
Certificate No. (ATEX)	TUEV22ATEX8925U
Certificate No. (CSA)	227442-80219640
Certificate No. (cURus)	E60693
Certificate No. (cURusEX)	E184763
Certificate No. (IECEX)	IECEXTUR22.0073U
Clamping range, max.	4 mm²
Clamping range, min.	0.34 mm²
Colour	dark beige
Colour of operational elements	green
Conductor size Factory wiring max. (cURus)	12 AWG
Conductor size Factory wiring min. (cURus)	22 AWG
Conductor size Field wiring max. (cURus)	12 AWG
Conductor size Field wiring min. (cURus)	22 AWG
Connection cross-section, finely stranded, max.	2.5 mm²
Connection cross-section, finely stranded, min.	0.34 mm²
Connection cross-section, stranded, max.	2.5 mm²
Connection cross-section, stranded, min.	0.34 mm²
Connection direction	top
Connection type, additional connection	SNAP IN
Continuous operating temp., max.	130 °C
Continuous operating temp., min.	-60 °C
Current (ATEX)	19 A
Current (IECEX)	19 A
Current at maximum wires	22 A
Current size B (CSA)	20 A
Current size B (cURus)	20 A
Current size C (CSA)	20 A
Current size C (cURus)	20 A
Current size D (CSA)	5 A
Current size D (cURus)	5 A
Depth	52 mm
Depth (inches)	2.047 inch
ECLASS 14.0	27-25-01-02
ECLASS 15.0	27-25-01-02
End cover plate required	Yes
ETIM 10.0	EC000897
ETIM 8.0	EC000897
ETIM 9.0	EC000897
Explosion-tested version	No
Gauge to IEC 60947-1	A2
GTIN (EAN)	4099986004795
Height	95 mm mm
Height (inches)	3.74 inch
Levels cross-connected internally	No
Max. voltage (ATEX)	550 V
Max. voltage (IECEX)	550 V
Mounting rail	TS 35
N-function	No
Net weight	15.177 g
Nominal current	22 A
Number of clamping points per level	2
Number of connections	4
Number of levels	2
Number of potentials	2
Number of potentials per tier	1
Open sides	right
Order No.	2902380000
PE connection	No
PE function	No
PEN function	No
Pollution severity	3
Power loss in accordance with IEC 60947-7-x	0.77 W
Qty.	50 items
Rated cross-section	2.5 mm²
Rated DC voltage	800 V
Rated impulse withstand voltage	8 kV
Rated voltage	800 V
REACH SVHC	No SVHC above 0.1 wt%
ROHS	Conform
RoHS Compliance Status	Compliant without exemption
Snap-on	Yes
Standards	IEC 60947-7-1
Storage Temperature	-25 °C...55 °C
Stripping length	10 mm
Surge voltage category	III
Twin wire-end ferrules, max.	0.75 mm²
Twin wire-end ferrules, min.	0.5 mm²
Type	S2T 2.5
Type of connection	SNAP IN
Type of connection 2	SNAP IN
Type of fixing	Snap-on
Type of mounting	TS 35
UL 94 flammability rating	V-0
Version	Multi-tier modular terminal, SNAP IN, dark beige, 2.5 mm², 800 V, Number of connections: 4, Number of levels: 2, TS 35, V-0
Voltage size B (CSA)	600 V
Voltage size B (cURus)	600 V
Voltage size C (CSA)	600 V
Voltage size C (cURus)	600 V
Voltage size D (CSA)	600 V
Voltage size D (cURus)	600 V
Volume resistance according to IEC 60947-7-x	1.33 mΩ
Width	5.1 mm mm
Width (inches)	0.201 inch
Wire connection cross section AWG, max.	AWG 12
Wire connection cross section AWG, min.	AWG 22
Wire connection cross section, finely stranded, max.	4 mm²
Wire connection cross section, finely stranded, min.	0.34 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.34 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.34 mm²
Wire connection cross-section, solid core, max.	2.5 mm²
Wire connection cross-section, solid core, min.	0.34 mm²
Wire cross section max. (ATEX)	2.5 mm²
Wire cross section max. (CSA)	12 AWG
Wire cross section max. (IECEX)	2.5 mm²
Wire cross section min. (CSA)	22 AWG
With snap-in pegs	No

Frequently Asked Questions

How do I get pricing for 2902380000?

KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.

Who manufactures the 2902380000?

2902380000 is a Weidmuller part. KKM Solutions sources Weidmuller components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.

What are the key specifications of 2902380000?

Key specifications include Ambient temperature: -60 °C…85 °C; Basic material: Wemid; Blade Size: 0.6 x 3.5 mm; Certificate No. (ATEX): TUEV22ATEX8925U. The full specification table on this page lists every published attribute for this part.

How quickly can 2902380000 ship?

In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.

Weidmuller S2T 2.5

Frequently Asked Questions

Related Products

Weidmuller S4C 4

Weidmuller S2T 2.5 PE

Weidmuller S3C 4

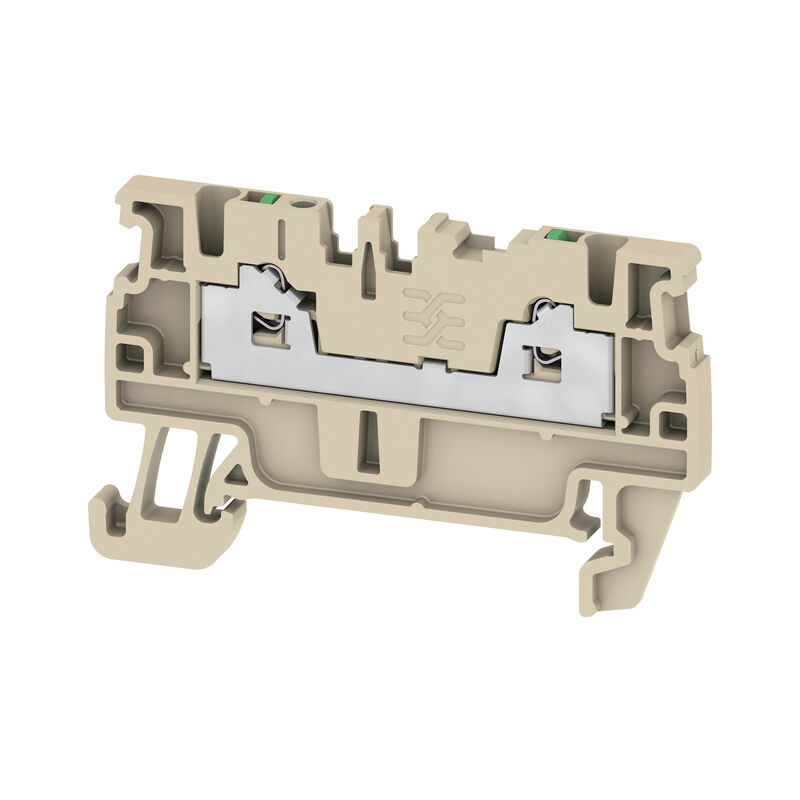

Weidmuller S2C 1.5
