Weidmuller S2C 2.5 PE DL
Ships Same Day*
Worldwide Shipping
PE terminal, SNAP IN, Green/yellow, 2.5 mm², 800 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
| Ambient temperature | -60 °C…85 °C |
|---|---|
| Basic material | Wemid |
| Blade Size | 0.6 x 3.5 mm |
| Certificate No. (ATEX) | TUEV22ATEX8925U |
| Certificate No. (CSA) | 200039-8116541 |
| Certificate No. (cURus) | E60693 |
| Certificate No. (cURusEX) | E184763 |
| Certificate No. (IECEX) | IECEXTUR22.0073U |
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0.34 mm² |
| Colour | Green/yellow |
| Colour of operational elements | green |
| Conductor size Factory wiring max. (cURus) | 12 AWG |
| Conductor size Factory wiring min. (cURus) | 22 AWG |
| Conductor size Field wiring max. (cURus) | 12 AWG |
| Conductor size Field wiring min. (cURus) | 22 AWG |
| Connection cross-section, finely stranded, min. | 0.34 mm² |
| Connection cross-section, stranded, max. | 2.5 mm² |
| Connection cross-section, stranded, min. | 0.34 mm² |
| Connection direction | top |
| Connection type, additional connection | SNAP IN |
| Continuous operating temp., max. | 130 °C |
| Continuous operating temp., min. | -60 °C |
| Depth | 38 mm |
| Depth (inches) | 1.496 inch |
| ECLASS 14.0 | 27-25-01-03 |
| ECLASS 15.0 | 27-25-01-03 |
| End cover plate required | Yes |
| ETIM 10.0 | EC000901 |
| ETIM 8.0 | EC000901 |
| ETIM 9.0 | EC000901 |
| Explosion-tested version | Yes |
| Gauge to IEC 60947-1 | A2 |
| GTIN (EAN) | 4064675594079 |
| Height | 59 mm mm |
| Height (inches) | 2.323 inch |
| Levels cross-connected internally | No |
| Max. voltage (IECEX) | 2.5 mm² |
| Mounting rail | TS 35 |
| N-function | No |
| Net weight | 11.666 g |
| Nominal current | 24 A |
| Number of clamping points per level | 2 |
| Number of connections | 2 |
| Number of levels | 1 |
| Number of potentials | 1 |
| Number of potentials per tier | 1 |
| Open sides | right |
| Order No. | 2863020000 |
| PE connection | Yes |
| PE function | Yes |
| PEN function | No |
| Pollution severity | 3 |
| Power loss in accordance with IEC 60947-7-x | 0.77 W |
| Qty. | 50 items |
| Rated cross-section | 2.5 mm² |
| Rated DC voltage | 800 V |
| Rated impulse withstand voltage | 8 kV |
| Rated voltage to adjoining terminal | 800 V |
| REACH SVHC | No SVHC above 0.1 wt% |
| ROHS | Conform |
| RoHS Compliance Status | Compliant without exemption |
| Snap-on | Yes |
| Standards | IEC 60947-7-2 |
| Storage Temperature | -25 °C...55 °C |
| Stripping length | 10 mm |
| Surge voltage category | III |
| Twin wire-end ferrules, max. | 0.75 mm² |
| Twin wire-end ferrules, min. | 0.5 mm² |
| Type | S2C 2.5 PE DL |
| Type of connection | SNAP IN |
| Type of fixing | Snap-on |
| Type of mounting | Snap-on |
| UL 94 flammability rating | V-0 |
| Version | PE terminal, SNAP IN, Green/yellow, 2.5 mm², 800 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Width | 5.1 mm mm |
| Width (inches) | 0.201 inch |
| Wire connection cross section AWG, max. | AWG 14 |
| Wire connection cross section AWG, min. | AWG 22 |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross section, finely stranded, min. | 0.34 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.34 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.34 mm² |
| Wire connection cross-section, solid core, max. | 2.5 mm² |
| Wire connection cross-section, solid core, min. | 0.34 mm² |
| Wire cross section max. (ATEX) | 2.5 mm² |
| Wire cross section max. (CSA) | 14 AWG |
| Wire cross section min. (CSA) | 20 AWG |
Frequently Asked Questions
How do I get pricing for 2863020000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 2863020000?
2863020000 is a Weidmuller part. KKM Solutions sources Weidmuller components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 2863020000?
Key specifications include Ambient temperature: -60 °C…85 °C; Basic material: Wemid; Blade Size: 0.6 x 3.5 mm; Certificate No. (ATEX): TUEV22ATEX8925U. The full specification table on this page lists every published attribute for this part.
How quickly can 2863020000 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Weidmuller Weidmuller S2C 2.5 DL BL
SKU: 2862990000
Same-day dispatch*
Weidmuller Weidmuller S3C 4
SKU: 2874840000
Same-day dispatch*

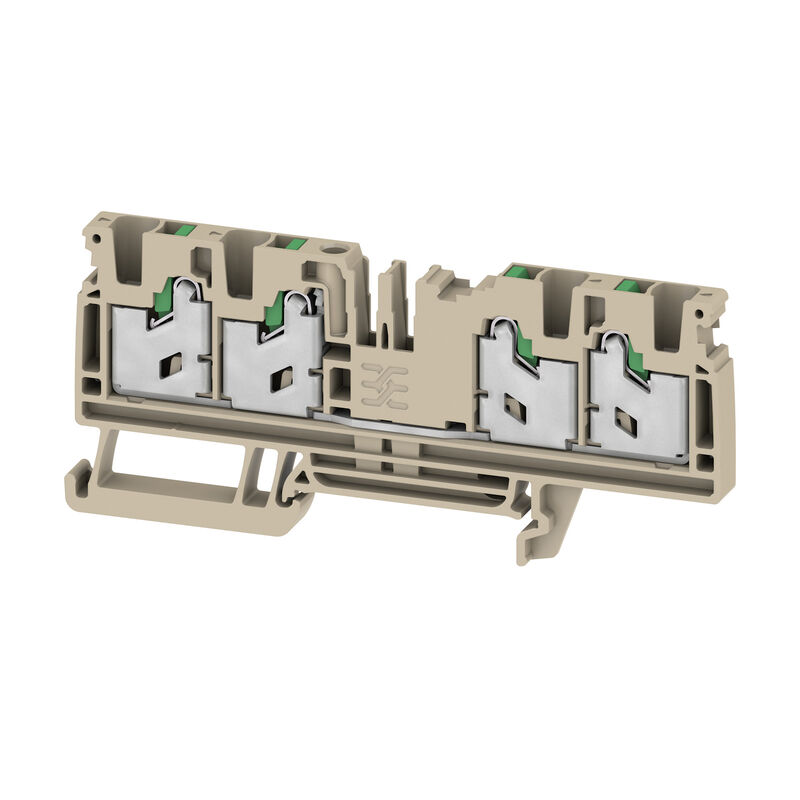

Weidmuller Weidmuller S4C 4
SKU: 2874860000
Same-day dispatch*
Weidmuller Weidmuller S4C 2.5 PE
SKU: 2674580000
Same-day dispatch*

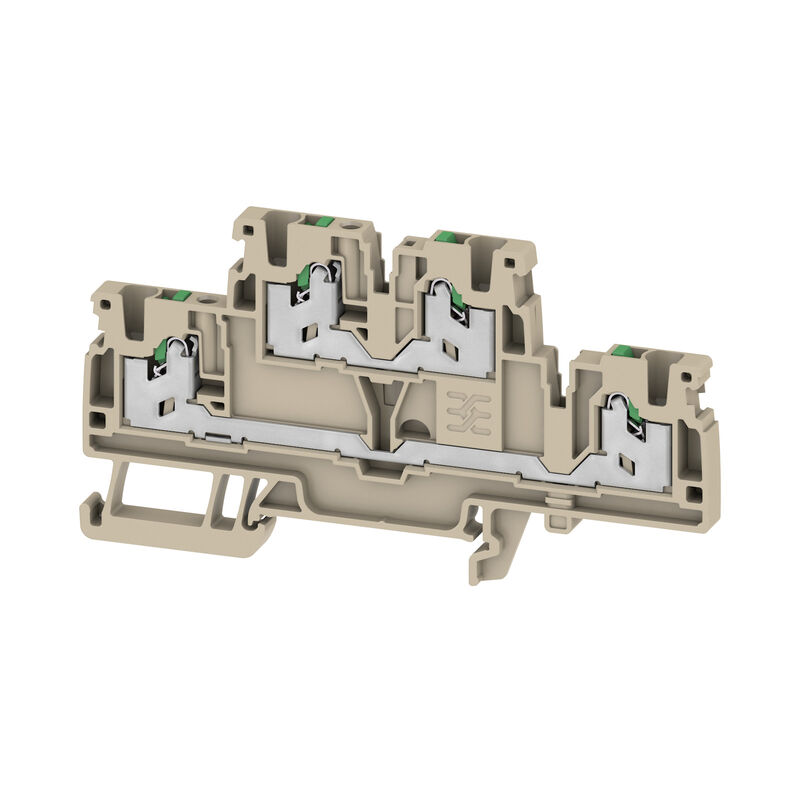

Weidmuller Weidmuller S2T 2.5
