Weidmuller WDU 2.5N ZQV RT
Weidmuller 2896090000 - Feed-through and PE terminal Blocks - Width: 5.1 mm mm; Height: 44 mm mm; Nominal current: 24 A.
The 2896090000 from Weidmuller is listed under Feed-through and PE terminal Blocks in our catalog. The manufacturer's published data for this part number specifies Width: 5.1 mm mm and Height: 44 mm mm.
Feed-through terminal block, Screw connection, red, 2.5 mm², 24 A, 500 V, Number of connections: 2
The specification set recorded for this part number covers Nominal current: 24 A; Type of mounting: TS 35; Ambient temperature: -60 °C…85 °C; Type: WDU 2.5N ZQV RT; Depth: 37 mm; Net weight: 5.34 g; Colour: red; Rated voltage: 500 V; Stripping length: 10 mm; Blade Size: 0.6 x 3.5 mm; ROHS: Conform; Order No.: 2896090000. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature | -60 °C…85 °C |
|---|---|
| Basic material | Wemid |
| Blade Size | 0.6 x 3.5 mm |
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0.05 mm² |
| Clamping screw | M 2.5 |
| Colour | red |
| Connection cross-section, finely stranded, min. | 0.05 mm² |
| Connection cross-section, stranded, max. | 0.5 mm² |
| Connection cross-section, stranded, min. | 0.05 mm² |
| Connection direction | on side |
| Connection type, additional connection | Screw connection |
| Continuous operating temp., max. | 130 °C |
| Continuous operating temp., min. | -60 °C |
| Current at maximum wires | 32 A |
| Depth | 37 mm |
| Depth (inches) | 1.457 inch |
| ECLASS 14.0 | 27-25-01-01 |
| ECLASS 15.0 | 27-25-01-01 |
| End cover plate required | Yes |
| ETIM 10.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| Explosion-tested version | No |
| Gauge to IEC 60947-1 | A3 |
| GTIN (EAN) | 4064675892045 |
| Height | 44 mm mm |
| Height (inches) | 1.732 inch |
| Levels cross-connected internally | No |
| Mounting rail | TS 35 |
| N-function | No |
| Net weight | 5.34 g |
| Nominal current | 24 A |
| Number of clamping points per level | 2 |
| Number of connections | 2 |
| Number of levels | 1 |
| Number of potentials | 1 |
| Number of potentials per tier | 1 |
| Open sides | right |
| Order No. | 2896090000 |
| PE function | No |
| PEN function | No |
| Pollution severity | 3 |
| Qty. | 100 items |
| Rated cross-section | 2.5 mm² |
| Rated DC voltage | 500 V |
| Rated impulse withstand voltage | 6 kV |
| Rated voltage | 500 V |
| REACH SVHC | No SVHC above 0.1 wt% |
| ROHS | Conform |
| RoHS Compliance Status | Compliant without exemption |
| Snap-on | Yes |
| Standards | IEC 60947-7-1 |
| Stripping length | 10 mm |
| Surge voltage category | III |
| Tightening torque (max) | 0.6 Nm Nm |
| Tightening torque, min. | 0.4 Nm |
| Torque level with DMS electric screwdriver | 1 |
| Twin wire-end ferrules, max. | 1.5 mm² |
| Twin wire-end ferrules, min. | 0.5 mm² |
| Type | WDU 2.5N ZQV RT |
| Type of connection | Screw connection |
| Type of fixing | TS 35 |
| Type of mounting | TS 35 |
| UL 94 flammability rating | V-0 |
| Version | Feed-through terminal block, Screw connection, red, 2.5 mm², 24 A, 500 V, Number of connections: 2 |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Width | 5.1 mm mm |
| Width (inches) | 0.201 inch |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 30 |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross section, finely stranded, min. | 0.05 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.05 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.05 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
| Wire connection cross-section, solid core, min. | 0.05 mm² |
Frequently Asked Questions
How do I get pricing for 2896090000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 2896090000?
2896090000 is a Weidmuller part. KKM Solutions sources Weidmuller components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 2896090000?
Key specifications include Ambient temperature: -60 °C…85 °C; Basic material: Wemid; Blade Size: 0.6 x 3.5 mm; Clamping range, max.: 4 mm². The full specification table on this page lists every published attribute for this part.
How quickly can 2896090000 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

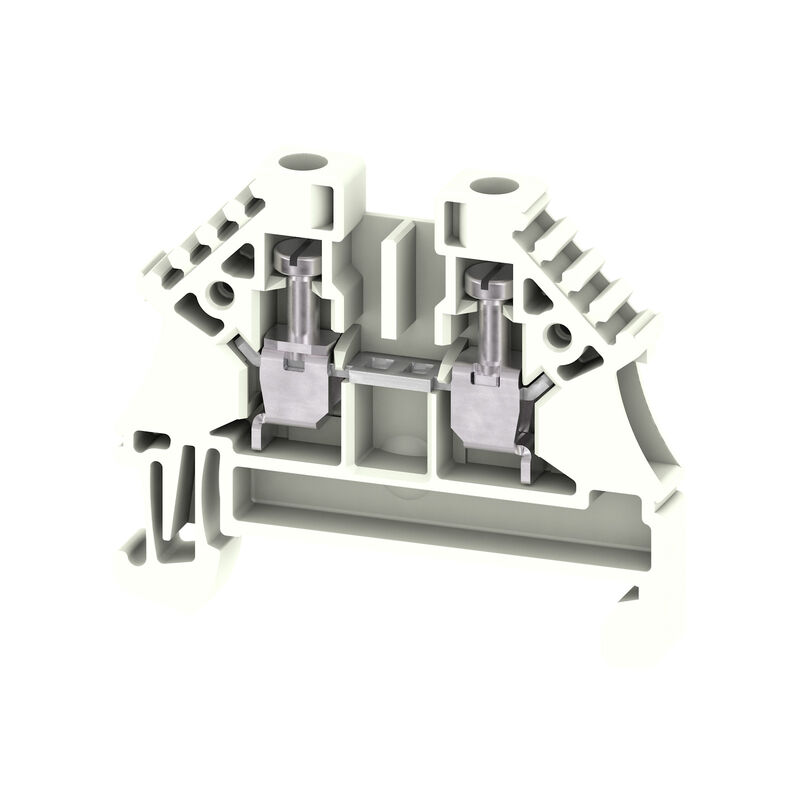

Weidmuller Weidmuller WDU 2.5N ZQV WS
Weidmuller Weidmuller A2T 2.5 3C VL DL

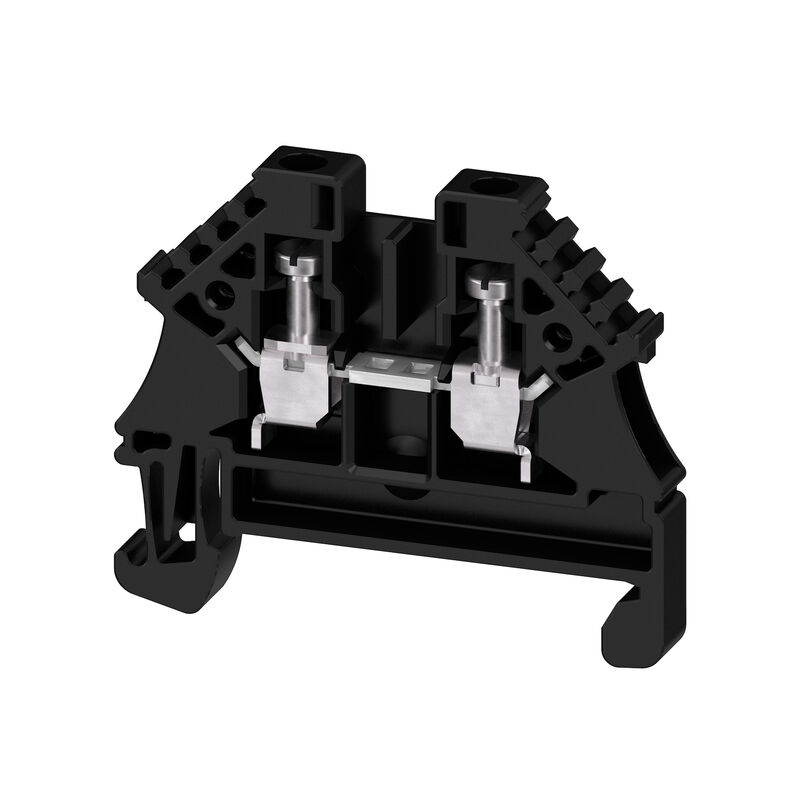

Weidmuller Weidmuller WDU 2.5N ZQV SW
Weidmuller Weidmuller A2T 2.5 3C DL

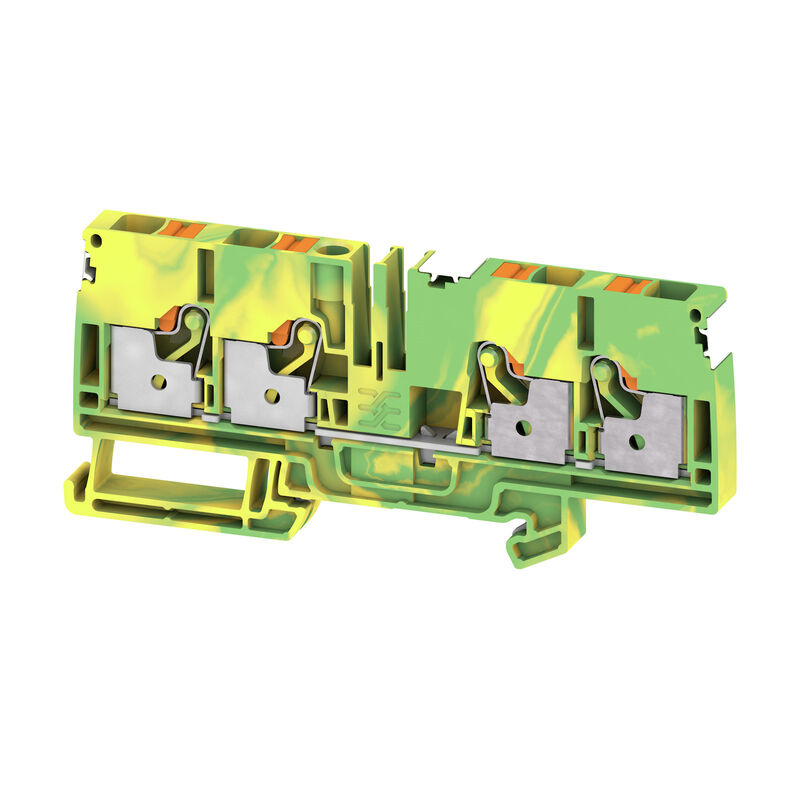

Weidmuller Weidmuller A2T 2.5 3C PE DL
