Weidmuller WDK 2.5V ZQV
Weidmuller 2739600000 - Feed-through and PE terminal Blocks - Width: 5.1 mm mm; Height: 69.5 mm mm; Nominal current: 24 A.
The Weidmuller 2739600000 is part of the Feed-through and PE terminal Blocks range in our industrial catalog. The manufacturer's published data for this part number specifies Width: 5.1 mm mm and Height: 69.5 mm mm.
Multi-tier modular terminal, Screw connection, dark beige, 2.5 mm², 400 V, Number of connections: 4, Number of levels: 2, TS 35, V-0
Published specifications for this part include Nominal current: 24 A; Type of mounting: Snap-on; Ambient temperature: -60 °C…85 °C; Type: WDK 2.5V ZQV; Depth: 62.5 mm; Net weight: 13.376 g; Colour: dark beige; Rated voltage: 400 V; Stripping length: 10 mm; Blade Size: 0.6 x 3.5 mm; ROHS: Conform; Certificate No. (UR): E60693. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature | -60 °C…85 °C |
|---|---|
| Basic material | Wemid |
| Blade Size | 0.6 x 3.5 mm |
| Certificate No. (ATEX) | DEMKO15ATEX1346U |
| Certificate No. (CSA) | 200039-80051002 |
| Certificate No. (IECEX) | IECEXULD15.0003U |
| Certificate No. (UR) | E60693 |
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0.05 mm² |
| Clamping screw | M 2.5 |
| Colour | dark beige |
| Conductor size Factory wiring max. (UR) | 12 AWG |
| Conductor size Factory wiring min. (UR) | 30 AWG |
| Conductor size Field wiring max. (UR) | 12 AWG |
| Conductor size Field wiring min. (UR) | 22 AWG |
| Connection cross-section, finely stranded, min. | 0.05 mm² |
| Connection cross-section, stranded, max. | 4 mm² |
| Connection cross-section, stranded, min. | 0.05 mm² |
| Connection direction | on side |
| Connection type, additional connection | Screw connection |
| Continuous operating temp., max. | 130 °C |
| Continuous operating temp., min. | -60 °C |
| Current (ATEX) | 21 A |
| Current (IECEX) | 21 A |
| Current at maximum wires | 32 A |
| Current size B (CSA) | 25 A |
| Current size B (UR) | 20 A |
| Current size C (CSA) | 25 A |
| Current size C (UR) | 20 A |
| Current size D (CSA) | 5 A |
| Depth | 62.5 mm |
| Depth (inches) | 2.461 inch |
| ECLASS 14.0 | 27-25-01-02 |
| ECLASS 15.0 | 27-25-01-02 |
| End cover plate required | Yes |
| ETIM 10.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| Ex 2014/34/EU label | II 2 G D |
| Explosion-tested version | Yes |
| Gauge to IEC 60947-1 | A3 |
| GTIN (EAN) | 4064675008095 |
| Height | 69.5 mm mm |
| Height (inches) | 2.736 inch |
| Levels cross-connected internally | Yes |
| Marking EN 60079-7 | Ex eb II C Gb |
| Max. voltage (ATEX) | 275 V |
| Max. voltage (IECEX) | 275 V |
| Mounting rail | TS 35 |
| N-function | No |
| Net weight | 13.376 g |
| Nominal current | 24 A |
| Number of clamping points per level | 2 |
| Number of connections | 4 |
| Number of levels | 2 |
| Number of potentials | 1 |
| Number of potentials per tier | 1 |
| Open sides | right |
| Order No. | 2739600000 |
| PE function | No |
| PEN function | No |
| Pollution severity | 3 |
| Qty. | 50 items |
| Rated cross-section | 2.5 mm² |
| Rated DC voltage | 400 V |
| Rated voltage | 400 V |
| REACH SVHC | No SVHC above 0.1 wt% |
| ROHS | Conform |
| RoHS Compliance Status | Compliant without exemption |
| Snap-on | Yes |
| Standards | IEC 60947-7-1 |
| Stripping length | 10 mm |
| Surge voltage category | III |
| Type | WDK 2.5V ZQV |
| Type of connection | Screw connection |
| Type of connection 2 | Screw connection |
| Type of fixing | Snap-on |
| Type of mounting | Snap-on |
| UL 94 flammability rating | V-0 |
| Version | Multi-tier modular terminal, Screw connection, dark beige, 2.5 mm², 400 V, Number of connections: 4, Number of levels: 2, TS 35, V-0 |
| Voltage size B (CSA) | 600 V |
| Voltage size B (UR) | 600 V |
| Voltage size C (CSA) | 600 V |
| Voltage size C (UR) | 600 V |
| Voltage size D (CSA) | 600 V |
| Width | 5.1 mm mm |
| Width (inches) | 0.201 inch |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 30 |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max. | 1.5 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min. | 0.5 mm² |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross section, finely stranded, min. | 0.05 mm² |
| Wire connection cross section, finely stranded, two clampable wires, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.05 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.05 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
| Wire connection cross-section, solid core, min. | 0.05 mm² |
| Wire cross section max. (ATEX) | 4 mm² |
| Wire cross section max. (CSA) | 12 AWG |
| Wire cross section max. (IECEX) | 4 mm² |
| Wire cross section min. (CSA) | 30 AWG |
| Wire cross-section, finely stranded, two clampable wires, max. | 1.5 mm² |
Frequently Asked Questions
How do I get pricing for 2739600000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 2739600000?
2739600000 is a Weidmuller part. KKM Solutions sources Weidmuller components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 2739600000?
Key specifications include Ambient temperature: -60 °C…85 °C; Basic material: Wemid; Blade Size: 0.6 x 3.5 mm; Certificate No. (ATEX): DEMKO15ATEX1346U. The full specification table on this page lists every published attribute for this part.
How quickly can 2739600000 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Weidmuller Weidmuller A2T 2.5 3C N-FT
Weidmuller Weidmuller AMC 2.5 DL
Weidmuller Weidmuller A3T 2.5 VL DL

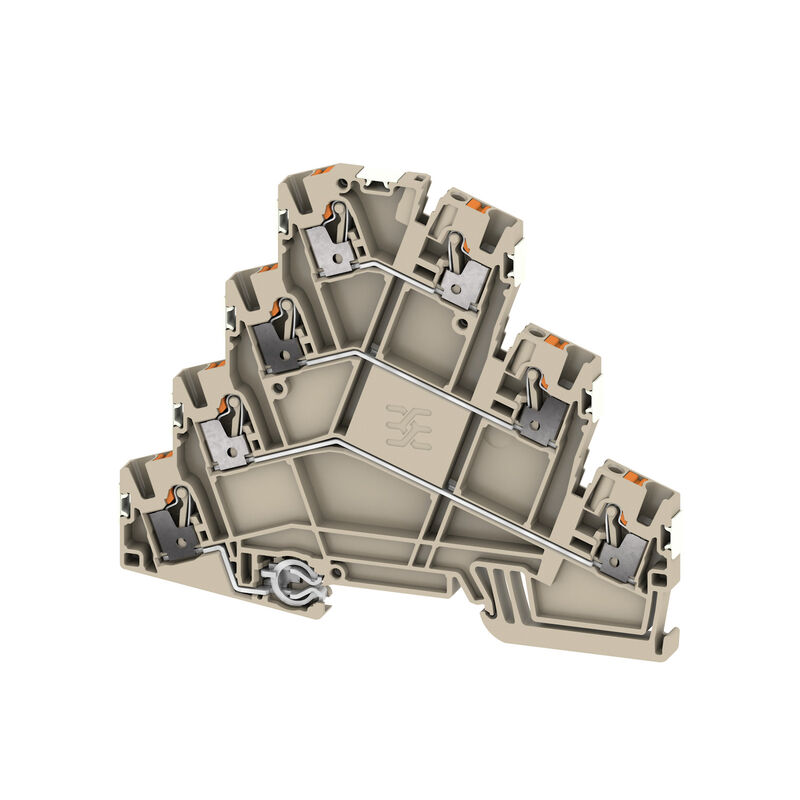

Weidmuller Weidmuller AMC 2.5 800V DL

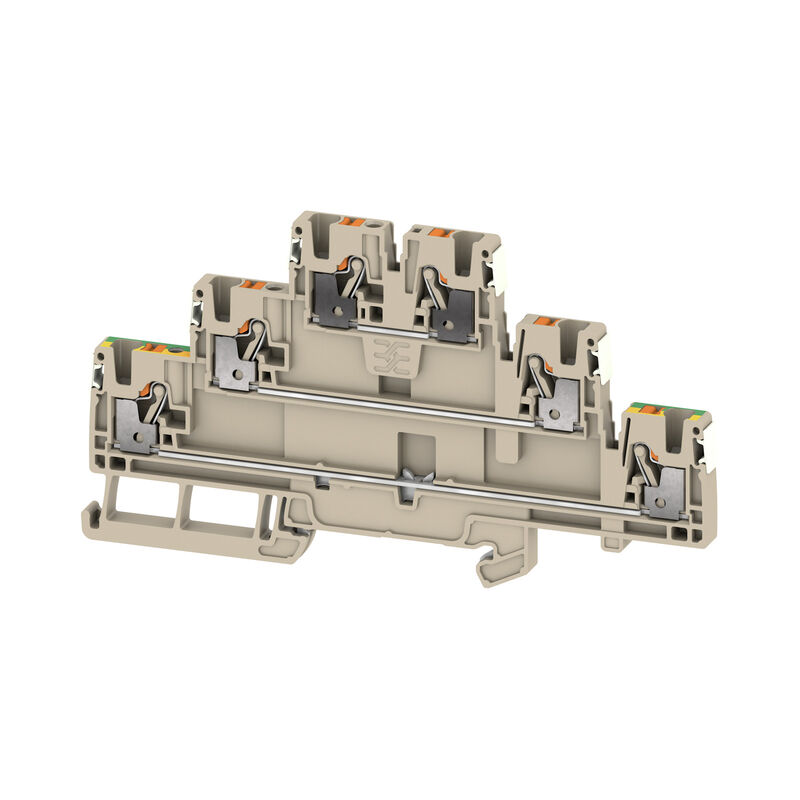

Weidmuller Weidmuller A3T 2.5 FT-FT-PE DL
