Weidmuller SRL 6
Weidmuller 2614960000 - Feed-through and PE terminal Blocks - Width: 18 mm mm; Height: 63.9 mm mm; Storage Temperature: -25 °C...55 °C.
The Weidmuller 2614960000 is part of the Feed-through and PE terminal Blocks range in our industrial catalog. The manufacturer's published data for this part number specifies Width: 18 mm mm and Height: 63.9 mm mm.
Stud terminal, Threaded stud connection, grey, 35 mm², 125 A, 1000 V, Number of connections: 2, Number of levels: 1, TS 35, TS 32, V-2, Polyamide
The specification set recorded for this part number covers Storage Temperature: -25 °C...55 °C; Nominal current: 125 A; Type of mounting: Snap mounting support rail; Ambient temperature: -50 °C…75 °C; Type: SRL 6; Depth: 63.1 mm; Net weight: 56.1 g; Colour: grey; Rated voltage: 1,000 V; ROHS: Conform; Order No.: 2614960000; GTIN (EAN): 4050118654011. See the Specifications tab on this page for the full technical table.
| 2 x cable lugs DIN 46 234 | 1.5…35 mm² |
|---|---|
| 2 x cable lugs DIN 46 235 | 1.5…35 mm² |
| Ambient temperature | -50 °C…75 °C |
| Basic material | Polyamide |
| Cable lug to DIN 46234 | 1.5…35 mm² |
| Cable lug to DIN 46235 | 1.5…35 mm² |
| Certificate No. (cURus) | . |
| Certificate number (cCSAus) | 70198655 |
| Clamping range, bolted connection , max. | 35 mm² |
| Clamping range, bolted connection , min. | 1.5 mm² |
| Clamping range, max. | 35 mm² |
| Clamping range, min. | 1.5 mm² |
| Colour | grey |
| Conductor size Factory wiring max. (cURus) | 2 AWG |
| Conductor size Factory wiring min. (cURus) | 22 AWG |
| Conductor size Field wiring max. (cURus) | 2 AWG |
| Conductor size Field wiring min. (cURus) | 22 AWG |
| Connection cross-section, finely stranded, min. | 1.5 mm² |
| Connection cross-section, stranded, max. | 35 mm² |
| Connection cross-section, stranded, min. | 1.5 mm² |
| Connection direction | on side |
| Continuous operating temp., max. | 120 °C |
| Continuous operating temp., min. | -50 °C |
| Current at maximum wires | 125 A |
| Current size B (cURus) | 115 A |
| Current size C (cURus) | 115 A |
| Depth | 63.1 mm |
| Depth (inches) | 2.484 inch |
| ECLASS 14.0 | 27-25-01-01 |
| ECLASS 15.0 | 27-25-01-01 |
| End cover plate required | Yes |
| ETIM 10.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| Explosion-tested version | No |
| GTIN (EAN) | 4050118654011 |
| Height | 63.9 mm mm |
| Height (inches) | 2.516 inch |
| Levels cross-connected internally | No |
| N-function | No |
| Net weight | 56.1 g |
| Nominal current | 125 A |
| Number of clamping points per level | 2 |
| Number of connections | 2 |
| Number of levels | 1 |
| Number of potentials | 1 |
| Number of potentials per tier | 1 |
| Open sides | right |
| Order No. | 2614960000 |
| PE connection | No |
| PE function | No |
| PEN function | No |
| Pollution severity | 3 |
| Power loss in accordance with IEC 60947-7-x | 4 W |
| Qty. | 50 items |
| Rated cross-section | 35 mm² |
| Rated DC voltage | 1,000 V |
| Rated impulse withstand voltage | 8 kV |
| Rated voltage | 1,000 V |
| REACH SVHC | No SVHC above 0.1 wt% |
| ROHS | Conform |
| RoHS Compliance Status | Compliant without exemption |
| Snap-on | Yes |
| Standards | IEC 60947-7-1 |
| Storage Temperature | -25 °C...55 °C |
| Stud size for spade connection | M 6 |
| Surge voltage category | III |
| Tightening torque (max) | 3 Nm Nm |
| Tightening torque, min. | 3 Nm |
| Type | SRL 6 |
| Type of connection | Threaded stud connection |
| Type of mounting | Snap mounting support rail |
| UL 94 flammability rating | V-2 |
| Version | Stud terminal, Threaded stud connection, grey, 35 mm², 125 A, 1000 V, Number of connections: 2, Number of levels: 1, TS 35, TS 32, V-2, Polyamide |
| Voltage size B (cURus) | 600 V |
| Voltage size C (cURus) | 600 V |
| Volume resistance according to IEC 60947-7-x | 0.26 mΩ |
| Width | 18 mm mm |
| Width (inches) | 0.709 inch |
| Wire connection cross section AWG, max. | AWG 2 |
| Wire connection cross section AWG, min. | AWG 22 |
| Wire connection cross section, finely stranded, max. | 35 mm² |
| Wire connection cross section, finely stranded, min. | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 1.5 mm² |
| Wire connection cross-section, solid core, max. | 35 mm² |
| Wire connection cross-section, solid core, min. | 1.5 mm² |
| Wire cross section max. (cCSAusX) | 8 AWG |
| Wire cross section min. (cCSAusX) | 22 AWG |
Frequently Asked Questions
How do I get pricing for 2614960000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 2614960000?
2614960000 is a Weidmuller part. KKM Solutions sources Weidmuller components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 2614960000?
Key specifications include 2 x cable lugs DIN 46 234: 1.5…35 mm²; 2 x cable lugs DIN 46 235: 1.5…35 mm²; Ambient temperature: -50 °C…75 °C; Basic material: Polyamide. The full specification table on this page lists every published attribute for this part.
How quickly can 2614960000 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

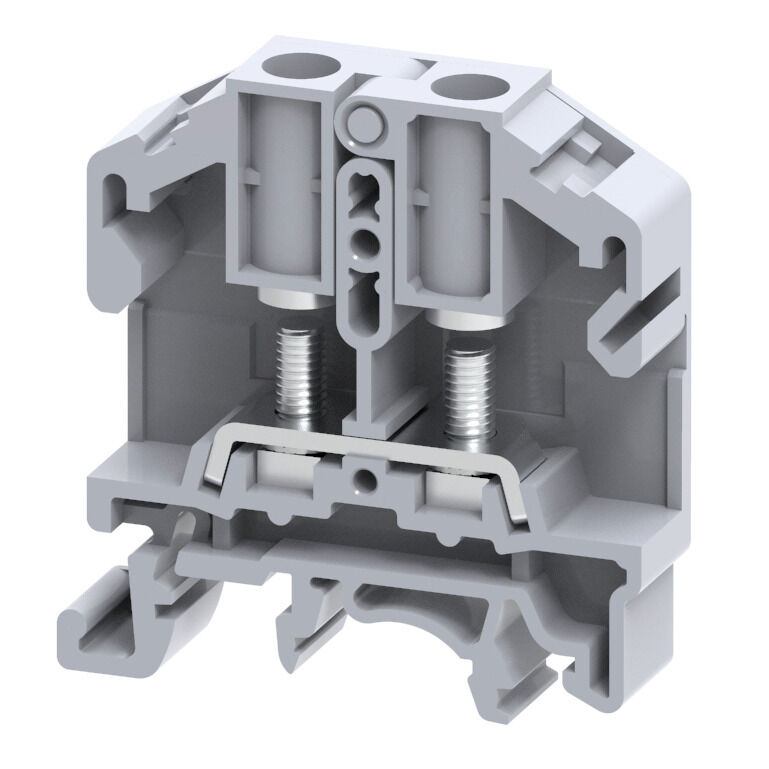

Weidmuller Weidmuller SRL 4 STB
Weidmuller Weidmuller A2T 2.5 3C N-PE
Weidmuller Weidmuller SRL 4
Weidmuller Weidmuller A2C 1.5 DL

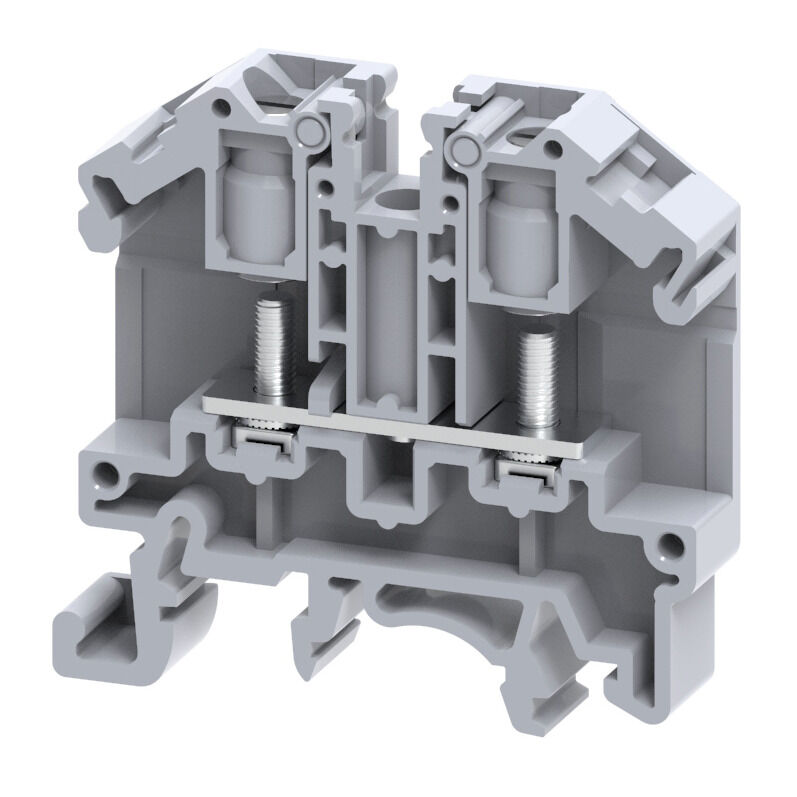

Weidmuller Weidmuller SRL 3
