Weidmuller ZDKPE 2.5-2 DB+BR BED OR
Weidmuller 1938330000 - Feed-through and PE terminal Blocks - Width: 5.1 mm mm; Height: 72.5 mm mm; Storage Temperature: -25 °C...55 °C.
The Weidmuller 1938330000 is part of the Feed-through and PE terminal Blocks range in our industrial catalog. The manufacturer's published data for this part number specifies Width: 5.1 mm mm and Height: 72.5 mm mm.
Feed-through terminal, Double-tier terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, brown, dark beige
The specification set recorded for this part number covers Storage Temperature: -25 °C...55 °C; Nominal current: 24 A; Type of mounting: Snap-on; Ambient temperature: -50 °C…75 °C; Type: ZDKPE 2.5-2 DB+BR BED OR; Depth: 59.5 mm; Net weight: 13.411 g; Rated voltage: 800 V; Stripping length: 10 mm; Blade Size: 0.6 x 3.5 mm; ROHS: Conform; Order No.: 1938330000. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature | -50 °C…75 °C |
|---|---|
| Basic material | Wemid |
| Blade Size | 0.6 x 3.5 mm |
| Certificate No. (CSA) | 200039-1236167 |
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0.05 mm² |
| Connection cross-section, finely stranded, min. | 0.05 mm² |
| Connection cross-section, stranded, max. | 2.5 mm² |
| Connection cross-section, stranded, min. | 0.05 mm² |
| Connection direction | Inclined / angled |
| Connection type, additional connection | Tension-clamp connection |
| Continuous operating temp., max. | 120 °C |
| Continuous operating temp., min. | -50 °C |
| Current at maximum wires | 24 A |
| Current size B (CSA) | 25 A |
| Current size D (CSA) | 10 A |
| Depth | 59.5 mm |
| Depth (inches) | 2.343 inch |
| Depth including DIN rail | 60.5 mm |
| ECLASS 14.0 | 27-25-01-02 |
| ECLASS 15.0 | 27-25-01-02 |
| End cover plate required | Yes |
| ETIM 10.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| Explosion-tested version | Yes |
| Gauge to IEC 60947-1 | A2 |
| GTIN (EAN) | 4032248611256 |
| Height | 72.5 mm mm |
| Height (inches) | 2.854 inch |
| Levels cross-connected internally | No |
| Mounting rail | TS 35 |
| Net weight | 13.411 g |
| Nominal current | 24 A |
| Number of clamping points per level | 2 |
| Number of connections | 4 |
| Number of levels | 2 |
| Number of potentials | 2 |
| Number of similar terminals | 1 |
| Open sides | right |
| Order No. | 1938330000 |
| PE connection | Yes |
| Pollution severity | 3 |
| Power loss in accordance with IEC 60947-7-x | 0.77 W |
| Qty. | 50 items |
| Rated cross-section | 2.5 mm² |
| Rated DC voltage | 800 V |
| Rated impulse withstand voltage | 8 kV |
| Rated voltage | 800 V |
| REACH SVHC | No SVHC above 0.1 wt% |
| ROHS | Conform |
| RoHS Compliance Status | Compliant without exemption |
| Standards | IEC 60947-7-1 |
| Storage Temperature | -25 °C...55 °C |
| Stripping length | 10 mm |
| Type | ZDKPE 2.5-2 DB+BR BED OR |
| Type of connection | Tension-clamp connection |
| Type of connection 2 | Tension-clamp connection |
| Type of mounting | Snap-on |
| UL 94 flammability rating | V-0 |
| Version | Feed-through terminal, Double-tier terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, brown, dark beige |
| Voltage size B (CSA) | 300 V |
| Voltage size D (CSA) | 300 V |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Width | 5.1 mm mm |
| Width (inches) | 0.201 inch |
| Wire connection cross section AWG, max. | AWG 14 |
| Wire connection cross section AWG, min. | AWG 30 |
| Wire connection cross section, finely stranded, max. | 2.5 mm² |
| Wire connection cross section, finely stranded, min. | 0.05 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.05 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.05 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
| Wire connection cross-section, solid core, min. | 0.05 mm² |
| Wire cross section max. (CSA) | 12 AWG |
| Wire cross section min. (CSA) | 30 AWG |
Frequently Asked Questions
How do I get pricing for 1938330000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1938330000?
1938330000 is a Weidmuller part. KKM Solutions sources Weidmuller components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1938330000?
Key specifications include Ambient temperature: -50 °C…75 °C; Basic material: Wemid; Blade Size: 0.6 x 3.5 mm; Certificate No. (CSA): 200039-1236167. The full specification table on this page lists every published attribute for this part.
How quickly can 1938330000 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

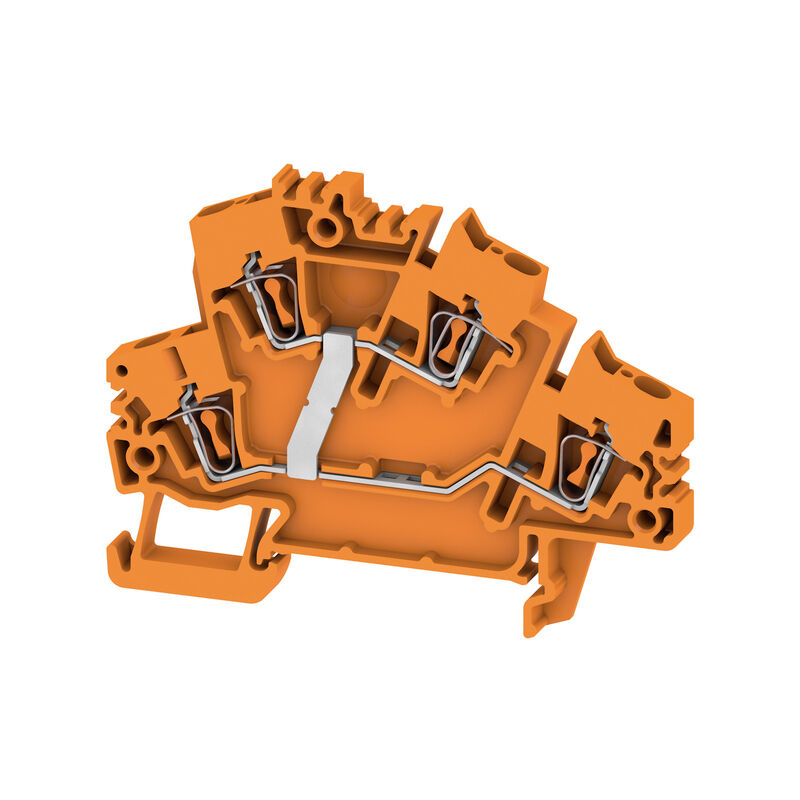

Weidmuller Weidmuller ZDK 2.5-2V BED OR
Weidmuller Weidmuller ZDK 2.5-2 DB+BR BED OR
Weidmuller Weidmuller ZDU 2.5-2/3AN GE

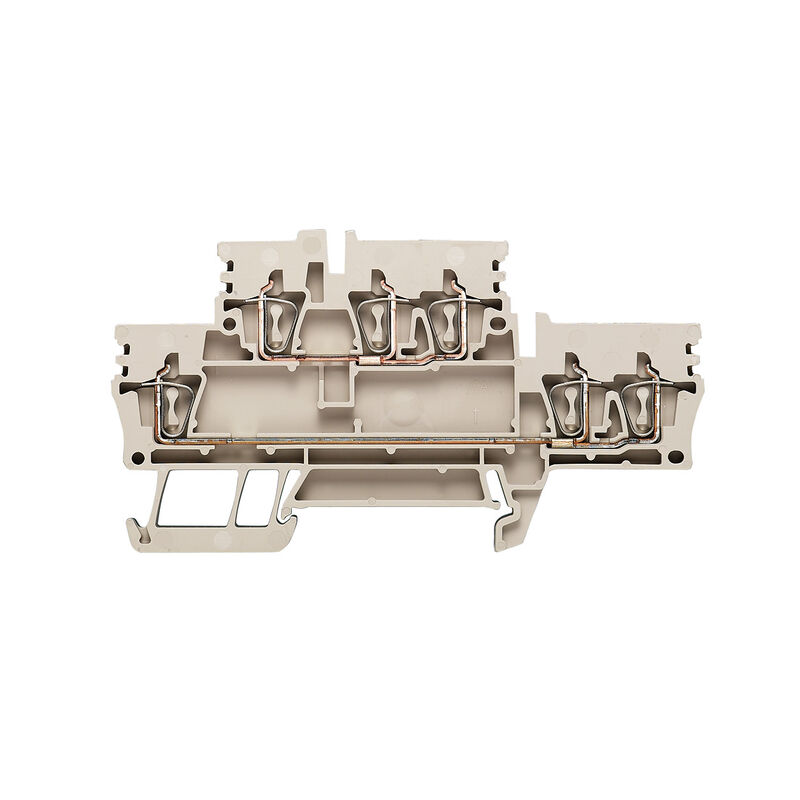

Weidmuller Weidmuller ZDK 2.5/3AN
