Weidmuller ZDU 16 OR
Weidmuller 1830680000 - Feed-through and PE terminal Blocks - Width: 12.1 mm mm; Height: 82.5 mm mm; Storage Temperature: -25 °C...55 °C.
The 1830680000 from Weidmuller is listed under Feed-through and PE terminal Blocks in our catalog. The manufacturer's published data for this part number specifies Width: 12.1 mm mm and Height: 82.5 mm mm.
The specification set recorded for this part number covers Storage Temperature: -25 °C...55 °C; Nominal current: 76 A; Type of mounting: Snap-on; Ambient temperature: -50 °C…75 °C; Type: ZDU 16 OR; Depth: 50.5 mm; Net weight: 33.898 g; Colour: orange; Rated voltage: 1,000 V; Stripping length: 18 mm; Version: Feed-through terminal, Tension-clamp connection, 16 mm², 1000 V, 76 A, orange; Blade Size: 1.0 x 5.5 mm. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature | -50 °C…75 °C |
|---|---|
| Basic material | Wemid |
| Blade Size | 1.0 x 5.5 mm |
| Certificate No. (ATEX) | DEMKO15ATEX1467U |
| Certificate No. (CSA) | 200039-1152892 |
| Certificate No. (cURus) | E60693 |
| Certificate No. (cURusEX) | E184763 |
| Certificate No. (IECEX) | IECEXULD15.0008U |
| Clamping range, max. | 25 mm² |
| Clamping range, min. | 1.5 mm² |
| Colour | orange |
| Connection cross-section, finely stranded, min. | 1.5 mm² |
| Connection cross-section, stranded, max. | 25 mm² |
| Connection cross-section, stranded, min. | 1.5 mm² |
| Connection direction | top |
| Connection type, additional connection | Tension-clamp connection |
| Continuous operating temp., max. | 120 °C |
| Continuous operating temp., min. | -50 °C |
| Current (ATEX) | 68 A |
| Current (IECEX) | 68 A |
| Current at maximum wires | 98 A |
| Current size B (CSA) | 65 A |
| Current size C (CSA) | 65 A |
| Depth | 50.5 mm |
| Depth (inches) | 1.988 inch |
| Depth including DIN rail | 51.5 mm |
| ECLASS 14.0 | 27-25-01-01 |
| ECLASS 15.0 | 27-25-01-01 |
| End cover plate required | Yes |
| ETIM 10.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| Ex 2014/34/EU label | II 2 G D |
| Explosion-tested version | Yes |
| Gauge to IEC 60947-1 | A7 |
| GTIN (EAN) | 4032248706570 |
| Height | 82.5 mm mm |
| Height (inches) | 3.248 inch |
| Levels cross-connected internally | No |
| Marking EN 60079-7 | Ex eb II C Gb |
| Max. voltage (ATEX) | 690 V |
| Max. voltage (IECEX) | 690 V |
| Mounting rail | TS 35 |
| Net weight | 33.898 g |
| Nominal current | 76 A |
| Number of clamping points per level | 2 |
| Number of connections | 2 |
| Number of levels | 1 |
| Number of potentials | 1 |
| Number of potentials per tier | 1 |
| Number of similar terminals | 1 |
| Open sides | right |
| Order No. | 1830680000 |
| PE connection | No |
| Pollution severity | 3 |
| Power loss in accordance with IEC 60947-7-x | 2.43 W |
| Qty. | 25 items |
| Rated cross-section | 16 mm² |
| Rated DC voltage | 1,000 V |
| Rated impulse withstand voltage | 8 kV |
| Rated voltage | 1,000 V |
| REACH SVHC | No SVHC above 0.1 wt% |
| ROHS | Conform |
| RoHS Compliance Status | Compliant without exemption |
| Standards | IEC 60947-7-1 |
| Storage Temperature | -25 °C...55 °C |
| Stripping length | 18 mm |
| TS 35 offset | 42 mm |
| Type | ZDU 16 OR |
| Type of connection | Tension-clamp connection |
| Type of mounting | Snap-on |
| UL 94 flammability rating | V-0 |
| Version | Feed-through terminal, Tension-clamp connection, 16 mm², 1000 V, 76 A, orange |
| Voltage size B (CSA) | 600 V |
| Voltage size C (CSA) | 600 V |
| Volume resistance according to IEC 60947-7-x | 0.42 mΩ |
| Width | 12.1 mm mm |
| Width (inches) | 0.476 inch |
| Wire connection cross section AWG, max. | AWG 4 |
| Wire connection cross section AWG, min. | AWG 14 |
| Wire connection cross section, finely stranded, max. | 16 mm² |
| Wire connection cross section, finely stranded, min. | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 1.5 mm² |
| Wire connection cross-section, solid core, max. | 16 mm² |
| Wire connection cross-section, solid core, min. | 1.5 mm² |
| Wire cross section max. (ATEX) | 25 mm² |
| Wire cross section max. (CSA) | 4 AWG |
| Wire cross section max. (IECEX) | 25 mm² |
| Wire cross section min. (CSA) | 14 AWG |
Frequently Asked Questions
How do I get pricing for 1830680000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1830680000?
1830680000 is a Weidmuller part. KKM Solutions sources Weidmuller components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1830680000?
Key specifications include Ambient temperature: -50 °C…75 °C; Basic material: Wemid; Blade Size: 1.0 x 5.5 mm; Certificate No. (ATEX): DEMKO15ATEX1467U. The full specification table on this page lists every published attribute for this part.
How quickly can 1830680000 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Weidmuller Weidmuller ZDU 16 SW

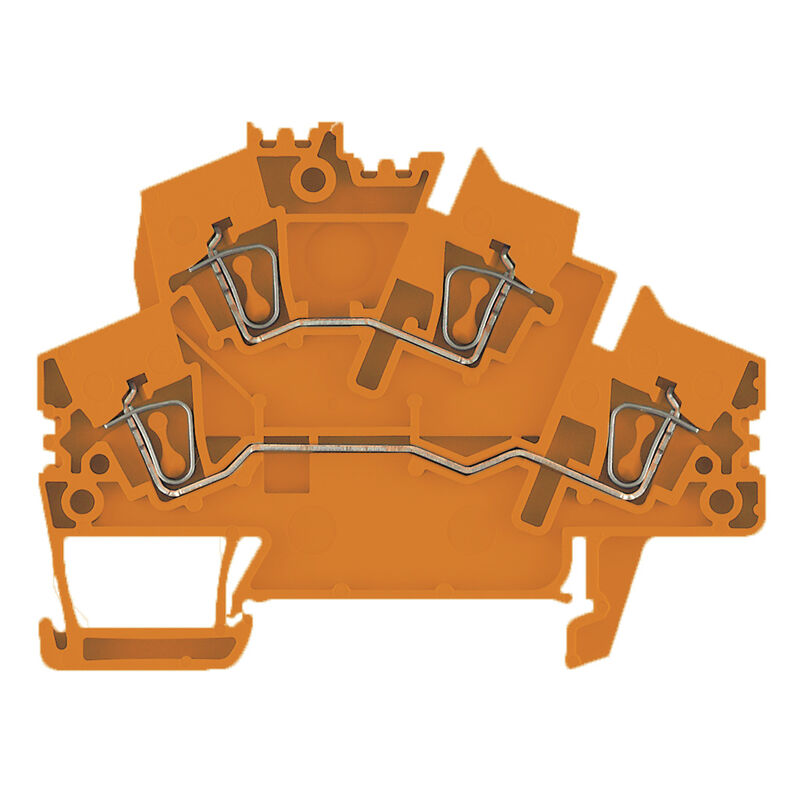

Weidmuller Weidmuller ZDK 2.5-2 OR
Weidmuller Weidmuller ZDU 10 OR

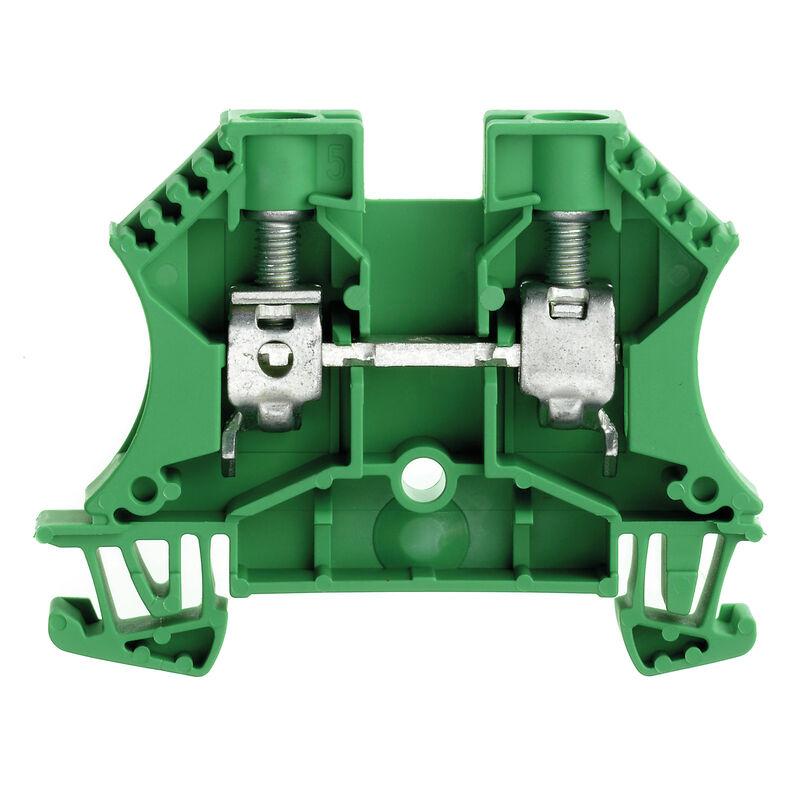

Weidmuller Weidmuller WDU 10 GN
