Weidmuller ZDU 6-2/2AN
Weidmuller 1771380000 - Feed-through and PE terminal Blocks - Width: 8.1 mm mm; Height: 68 mm mm; Storage Temperature: -25 °C...55 °C.
The Weidmuller 1771380000 is part of the Feed-through and PE terminal Blocks range in our industrial catalog. The manufacturer's published data for this part number specifies Width: 8.1 mm mm and Height: 68 mm mm.
Published specifications for this part include Storage Temperature: -25 °C...55 °C; Nominal current: 41 A; Type of mounting: Snap-on; Ambient temperature: -50 °C…75 °C; Type: ZDU 6-2/2AN; Depth: 49.5 mm; Net weight: 16.36 g; Colour: Tmavě béžová; Rated voltage: 800 V; Stripping length: 12 mm; Version: Feed-through terminal, Tension-clamp connection, 6 mm², 800 V, 41 A, dark beige; Blade Size: 0.8 x 4.0 mm. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature | -50 °C…75 °C |
|---|---|
| Basic material | Wemid |
| Blade Size | 0.8 x 4.0 mm |
| Certificate No. (ATEX) | DEMKO16ATEX1808U |
| Certificate No. (CSA) | 200039-1152892 |
| Certificate No. (IECEX) | DEMKO16ATEX1808U |
| Certificate No. (UR) | E60693 |
| Clamping range, max. | 10 mm² |
| Clamping range, min. | 0.22 mm² |
| Colour | Tmavě béžová |
| Conductor size Factory wiring max. (UR) | 8 AWG |
| Conductor size Factory wiring min. (UR) | 22 AWG |
| Conductor size Field wiring max. (UR) | 8 AWG |
| Conductor size Field wiring min. (UR) | 22 AWG |
| Connection cross-section, finely stranded, min. | 0.22 mm² |
| Connection cross-section, stranded, max. | 6 mm² |
| Connection cross-section, stranded, min. | 0.22 mm² |
| Connection direction | Inclined / angled |
| Connection type, additional connection | Tension-clamp connection |
| Continuous operating temp., max. | 120 °C |
| Continuous operating temp., min. | -50 °C |
| Current (ATEX) | 38 A |
| Current (IECEX) | 38 A |
| Current at maximum wires | 41 A |
| Current size B (CSA) | 50 A |
| Current size C (CSA) | 50 A |
| Current size C (UR) | 45 A |
| Current size D (CSA) | 5 A |
| Depth | 49.5 mm |
| Depth (inches) | 1.949 inch |
| Depth including DIN rail | 50 mm |
| ECLASS 14.0 | 27-25-01-01 |
| ECLASS 15.0 | 27-25-01-01 |
| End cover plate required | Yes |
| ETIM 10.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| Explosion-tested version | Yes |
| Gauge to IEC 60947-1 | A5 |
| GTIN (EAN) | 4032248143115 |
| Height | 68 mm mm |
| Height (inches) | 2.677 inch |
| Kennzeichnung Ex 2014/34/EU | II 2 G D |
| Levels cross-connected internally | No |
| Marking EN 60079-7 | Ex eb II C Gb |
| Max. voltage (ATEX) | 550 V |
| Max. voltage (IECEX) | 550 V |
| Mounting rail | TS 35 |
| Net weight | 16.36 g |
| Nominal current | 41 A |
| Number of connections | 2 |
| Number of levels | 1 |
| Number of potentials | 1 |
| Number of potentials per tier | 1 |
| Number of similar terminals | 1 |
| Open sides | right |
| Order No. | 1771380000 |
| PE connection | No |
| Počet svěrných bodů na úroveň | 2 |
| Power loss in accordance with IEC 60947-7-x | 1.31 W |
| Qty. | 50 Styk |
| Rated cross-section | 6 mm² |
| Rated DC voltage | 800 V |
| Rated impulse withstand voltage | 8 kV |
| Rated voltage | 800 V |
| REACH SVHC | Ne SVHC nad 0,1 wt% |
| ROHS | Shoda |
| RoHS Compliance Status | Compliant without exemption |
| Šířka (v palcích) | 0.319 inch |
| Standards | IEC 60947-7-1 |
| Storage Temperature | -25 °C...55 °C |
| Stripping length | 12 mm |
| Twin wire-end ferrules, max. | 2.5 mm² |
| Twin wire-end ferrules, min. | 0.5 mm² |
| Type | ZDU 6-2/2AN |
| Type of connection | Tension-clamp connection |
| Type of mounting | Snap-on |
| UL 94 flammability rating | V-0 |
| Verschmutzungsgrad | 3 |
| Version | Feed-through terminal, Tension-clamp connection, 6 mm², 800 V, 41 A, dark beige |
| Voltage size B (CSA) | 600 V |
| Voltage size C (CSA) | 600 V |
| Voltage size C (UR) | 600 V |
| Voltage size D (CSA) | 600 V |
| Volume resistance according to IEC 60947-7-x | 0.78 mΩ |
| Width | 8.1 mm mm |
| Wire connection cross section AWG, max. | AWG 8 |
| Wire connection cross section AWG, min. | AWG 22 |
| Wire connection cross section, finely stranded, max. | 10 mm² |
| Wire connection cross section, finely stranded, min. | 0.22 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.22 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.22 mm² |
| Wire connection cross-section, solid core, max. | 10 mm² |
| Wire connection cross-section, solid core, min. | 0.22 mm² |
| Wire cross section max. (ATEX) | 10 mm² |
| Wire cross section max. (CSA) | 8 AWG |
| Wire cross section max. (IECEX) | 10 mm² |
| Wire cross section min. (CSA) | 20 AWG |
Frequently Asked Questions
How do I get pricing for 1771380000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1771380000?
1771380000 is a Weidmuller part. KKM Solutions sources Weidmuller components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1771380000?
Key specifications include Ambient temperature: -50 °C…75 °C; Basic material: Wemid; Blade Size: 0.8 x 4.0 mm; Certificate No. (ATEX): DEMKO16ATEX1808U. The full specification table on this page lists every published attribute for this part.
How quickly can 1771380000 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Weidmuller Weidmuller ZPE 6-2/3AN
Weidmuller Weidmuller ZDU 6-2/2AN BL
Weidmuller Weidmuller ZDU 4-2/3AN OR
Weidmuller Weidmuller ZDU 6-2/3AN

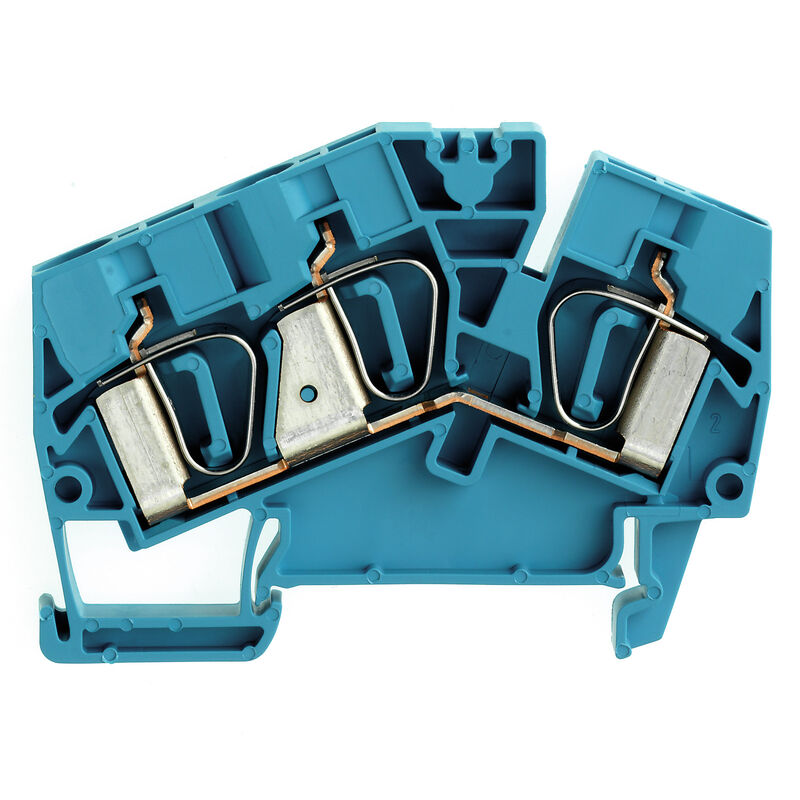

Weidmuller Weidmuller ZDU 6-2/3AN BL
