Weidmuller A2C 1.5 OR
Weidmuller 1552830000 - Feed-through and PE terminal Blocks - Width: 3.5 mm mm; Height: 55 mm mm; Storage Temperature: -25 °C...55 °C.
The 1552830000 from Weidmuller is listed under Feed-through and PE terminal Blocks in our catalog. The manufacturer's published data for this part number specifies Width: 3.5 mm mm and Height: 55 mm mm.
For the wire end ferrules H1/10 and H1.5/10 a stripping length of 10 mm is to apply.
Key manufacturer data on file for this item includes Storage Temperature: -25 °C...55 °C; Nominal current: 17.5 A; Type of mounting: TS 35; Ambient temperature: -60 °C…85 °C; Type: A2C 1.5 OR; Depth: 33.5 mm; Net weight: 2.7 g; Colour: orange; Rated voltage: 500 V; Stripping length: 8 mm; Version: Feed-through terminal, PUSH IN, 1.5 mm², 500 V, 17.5 A, orange; Blade Size: 0.4 x 2.0 mm. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature | -60 °C…85 °C |
|---|---|
| Basic material | Wemid |
| Blade Size | 0.4 x 2.0 mm |
| Certificate No. (ATEX) | TUEV16ATEX7909U |
| Certificate No. (CSA) | 200039-70089609 |
| Certificate No. (cURus) | E60693 |
| Certificate No. (cURusEX) | E184763 |
| Certificate No. (IECEX) | IECEXTUR16.0036U |
| Clamping range, max. | 1.5 mm² |
| Clamping range, min. | 0.14 mm² |
| Colour | orange |
| Colour of operational elements | orange |
| Conductor size Factory wiring max. (cURus) | 14 AWG |
| Conductor size Factory wiring min. (cURus) | 26 AWG |
| Conductor size Field wiring max. (cURus) | 14 AWG |
| Conductor size Field wiring min. (cURus) | 26 AWG |
| Connection cross-section, finely stranded, min. | 0.14 mm² |
| Connection cross-section, stranded, max. | 1.5 mm² |
| Connection cross-section, stranded, min. | 0.14 mm² |
| Connection direction | top |
| Connection type, additional connection | PUSH IN |
| Continuous operating temp., max. | 130 °C |
| Continuous operating temp., min. | -60 °C |
| Current (ATEX) | 15 A |
| Current (IECEX) | 15 A |
| Current at maximum wires | 17.5 A |
| Current size B (CSA) | 13 A |
| Current size B (cURus) | 13 A |
| Current size C (CSA) | 13 A |
| Current size C (cURus) | 13 A |
| Current size D (CSA) | 5 A |
| Current size D (cURus) | 5 A |
| Depth | 33.5 mm |
| Depth (inches) | 1.319 inch |
| Depth including DIN rail | 34 mm |
| ECLASS 14.0 | 27-25-01-01 |
| ECLASS 15.0 | 27-25-01-01 |
| End cover plate required | Yes |
| ETIM 10.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| Ex 2014/34/EU label | II 2 G D |
| Explosion-tested version | Yes |
| Gauge to IEC 60947-1 | A1 |
| GTIN (EAN) | 4050118359633 |
| Height | 55 mm mm |
| Height (inches) | 2.165 inch |
| Installation advice | Rail |
| Levels cross-connected internally | No |
| Marking EN 60079-7 | Ex eb II C Gb |
| Max. voltage (ATEX) | 550 V |
| Max. voltage (IECEX) | 550 V |
| Mounting rail | TS 35 |
| N-function | No |
| Net weight | 2.7 g |
| Nominal current | 17.5 A |
| Number of clamping points per level | 2 |
| Number of connections | 2 |
| Number of levels | 1 |
| Number of potentials | 1 |
| Number of potentials per tier | 1 |
| Open sides | right |
| Order No. | 1552830000 |
| PE connection | No |
| PE function | No |
| PEN function | No |
| Pollution severity | 3 |
| Power loss in accordance with IEC 60947-7-x | 0.56 W |
| Product information | For the wire end ferrules H1/10 and H1.5/10 a stripping length of 10 mm is to apply. |
| Qty. | 100 items |
| Rated cross-section | 1.5 mm² |
| Rated DC voltage | 500 V |
| Rated impulse withstand voltage | 6 kV |
| Rated voltage | 500 V |
| REACH SVHC | No SVHC above 0.1 wt% |
| ROHS | Conform |
| RoHS Compliance Status | Compliant without exemption |
| Snap-on | No |
| Standards | IEC 60947-7-1 |
| Storage Temperature | -25 °C...55 °C |
| Stripping length | 8 mm |
| Surge voltage category | III |
| Type | A2C 1.5 OR |
| Type of connection | PUSH IN |
| Type of fixing | Snap-on |
| Type of mounting | TS 35 |
| UL 94 flammability rating | V-0 |
| Version | Feed-through terminal, PUSH IN, 1.5 mm², 500 V, 17.5 A, orange |
| Voltage size B (CSA) | 300 V |
| Voltage size B (cURus) | 300 V |
| Voltage size C (CSA) | 300 V |
| Voltage size C (cURus) | 300 V |
| Voltage size D (CSA) | 600 V |
| Voltage size D (cURus) | 600 V |
| Volume resistance according to IEC 60947-7-x | 1.83 mΩ |
| Width | 3.5 mm mm |
| Width (inches) | 0.138 inch |
| Wire connection cross section AWG, max. | AWG 14 |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross section, finely stranded, max. | 1.5 mm² |
| Wire connection cross section, finely stranded, min. | 0.14 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.14 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 1 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.14 mm² |
| Wire connection cross-section, solid core, max. | 1.5 mm² |
| Wire connection cross-section, solid core, min. | 0.14 mm² |
| Wire cross section max. (ATEX) | 1.5 mm² |
| Wire cross section max. (CSA) | 14 AWG |
| Wire cross section max. (IECEX) | 1.5 mm² |
| Wire cross section min. (CSA) | 26 AWG |
| With snap-in pegs | No |
Frequently Asked Questions
How do I get pricing for 1552830000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1552830000?
1552830000 is a Weidmuller part. KKM Solutions sources Weidmuller components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1552830000?
Key specifications include Ambient temperature: -60 °C…85 °C; Basic material: Wemid; Blade Size: 0.4 x 2.0 mm; Certificate No. (ATEX): TUEV16ATEX7909U. The full specification table on this page lists every published attribute for this part.
How quickly can 1552830000 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Weidmuller Weidmuller A2C 1.5 BL

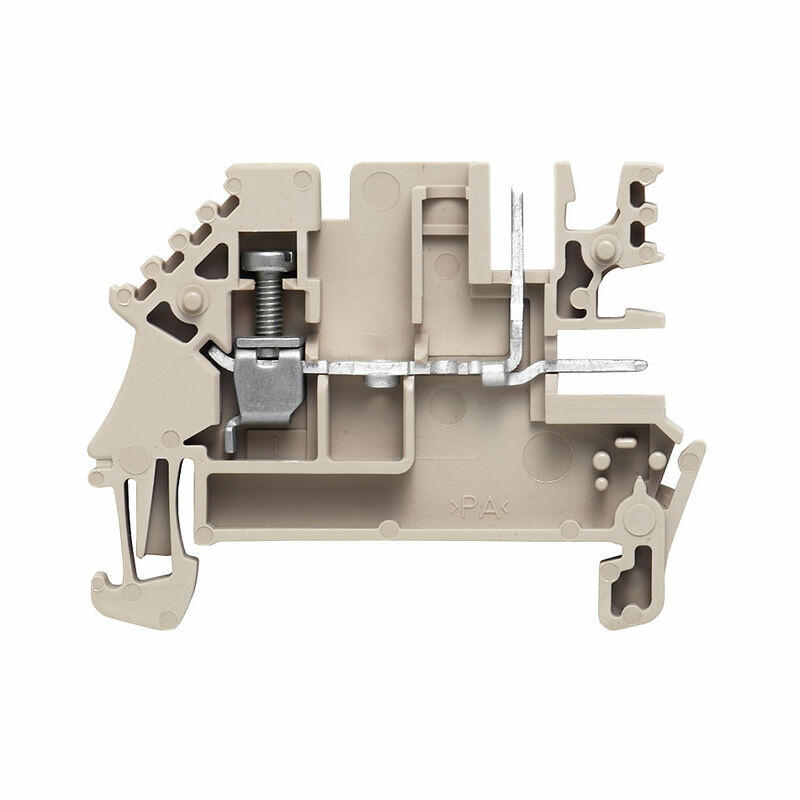

Weidmuller Weidmuller WDU 1.5/BLZ 5.08

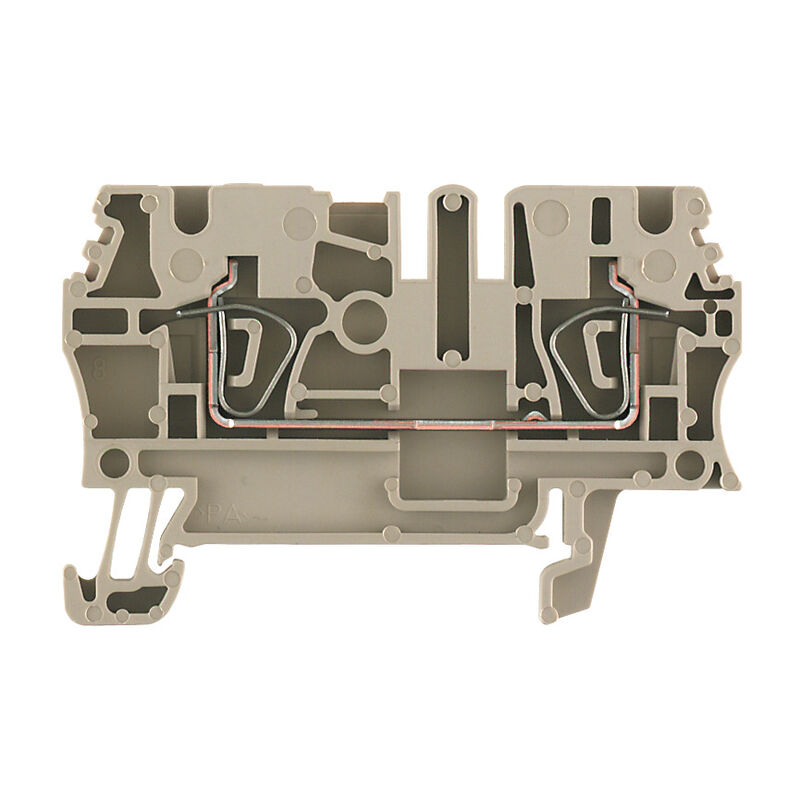

Weidmuller Weidmuller ZDU 2.5
Weidmuller Weidmuller A2C 1.5

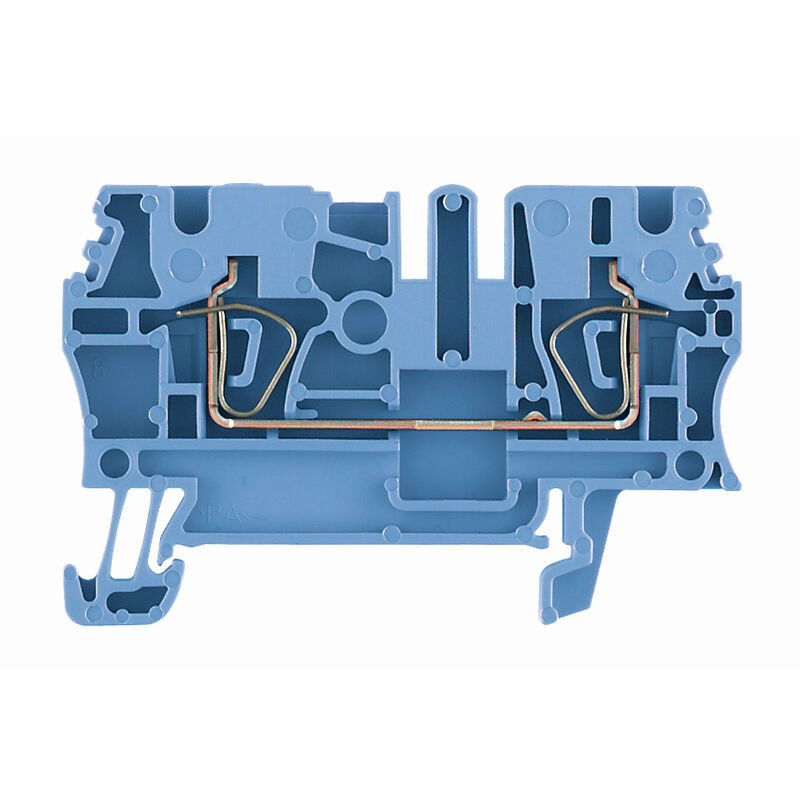

Weidmuller Weidmuller ZDU 2.5 BL
