Weidmuller WF 10/32
Weidmuller 1319070000 - Feed-through and PE terminal Blocks - Width: 32 mm mm; Height: 67 mm mm; Storage Temperature: -25 °C...55 °C.
Weidmuller 1319070000 is a Feed-through and PE terminal Blocks catalog item from Weidmuller. The manufacturer's published data for this part number specifies Width: 32 mm mm and Height: 67 mm mm.
Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 120 mm², Threaded stud connection
Key manufacturer data on file for this item includes Storage Temperature: -25 °C...55 °C; Nominal current: 269 A; Type of mounting: Snap-on; Ambient temperature: -50 °C…75 °C; Type: WF 10/32; Depth: 79 mm; Net weight: 77.546 g; Colour: dark beige; Rated voltage: 1,000 V; ROHS: Conform; Order No.: 1319070000; GTIN (EAN): 4050118320077. The complete technical table is shown in the Specifications tab on this page.
| 2 x cable lugs DIN 46 234 | 6 to 120 mm² |
|---|---|
| 2 x cable lugs DIN 46 235 | 10...95 mm² |
| Ambient temperature | -50 °C…75 °C |
| Basic material | Wemid |
| Cable lug to DIN 46234 | 6...120 mm² |
| Cable lug to DIN 46235 | 10...95 mm² |
| Clamping range, max. | 120 mm² |
| Clamping range, min. | 6 mm² |
| Colour | dark beige |
| Connection cross-section, finely stranded, min. | 6 mm² |
| Connection cross-section, stranded, max. | 120 mm² |
| Connection cross-section, stranded, min. | 6 mm² |
| Connection direction | on side |
| Continuous operating temp., max. | 120 °C |
| Continuous operating temp., min. | -50 °C |
| Current at maximum wires | 269 A |
| Delivery status | This article will no longer be available in the future. |
| Depth | 79 mm |
| Depth (inches) | 3.11 inch |
| ECLASS 14.0 | 27-25-01-01 |
| ECLASS 15.0 | 27-25-01-01 |
| End cover plate required | No |
| ETIM 10.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| Explosion-tested version | No |
| GTIN (EAN) | 4050118320077 |
| Height | 67 mm mm |
| Height (inches) | 2.638 inch |
| Impulse voltage with epoxy resin partition plate | 12 kV |
| Levels cross-connected internally | No |
| Mounting rail | TS 32 |
| Net weight | 77.546 g |
| Nominal current | 269 A |
| Number of clamping points per level | 1 |
| Number of connections | 1 |
| Number of levels | 1 |
| Number of potentials | 1 |
| Order No. | 1319070000 |
| PE connection | No |
| Pollution severity | 3 |
| Power loss in accordance with IEC 60947-7-x | 8.61 W |
| Qty. | 25 items |
| Rated cross-section | 120 mm² |
| Rated DC voltage | 1,000 V |
| Rated impulse withstand voltage | 8 kV |
| Rated voltage | 1,000 V |
| REACH SVHC | No SVHC above 0.1 wt% |
| ROHS | Conform |
| RoHS Compliance Status | Compliant without exemption |
| Standards | IEC 60947-7-1 |
| Storage Temperature | -25 °C...55 °C |
| Stud size for spade connection | M 10 |
| Tightening torque (max) | 20 Nm Nm |
| Tightening torque, min. | 10 Nm |
| Type | WF 10/32 |
| Type of connection | Threaded stud connection |
| Type of mounting | Snap-on |
| UL 94 flammability rating | V-0 |
| Version | Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 120 mm², Threaded stud connection |
| Voltage with epoxy resin partition plate | 2,300 V |
| Volume resistance according to IEC 60947-7-x | 0.12 mΩ |
| Width | 32 mm mm |
| Width (inches) | 1.26 inch |
| Wire connection cross section AWG, max. | kcmil 250 |
| Wire connection cross section AWG, min. | AWG 8 |
| Wire connection cross section, finely stranded, max. | 120 mm² |
| Wire connection cross section, finely stranded, min. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 6 mm² |
| Wire connection cross-section, solid core, max. | 120 mm² |
| Wire connection cross-section, solid core, min. | 6 mm² |
Frequently Asked Questions
How do I get pricing for 1319070000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1319070000?
1319070000 is a Weidmuller part. KKM Solutions sources Weidmuller components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1319070000?
Key specifications include 2 x cable lugs DIN 46 234: 6 to 120 mm²; 2 x cable lugs DIN 46 235: 10...95 mm²; Ambient temperature: -50 °C…75 °C; Basic material: Wemid. The full specification table on this page lists every published attribute for this part.
How quickly can 1319070000 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Weidmuller Weidmuller WF 8/32
Weidmuller Weidmuller WF 12/32
Weidmuller Weidmuller A4C 2.5 BL

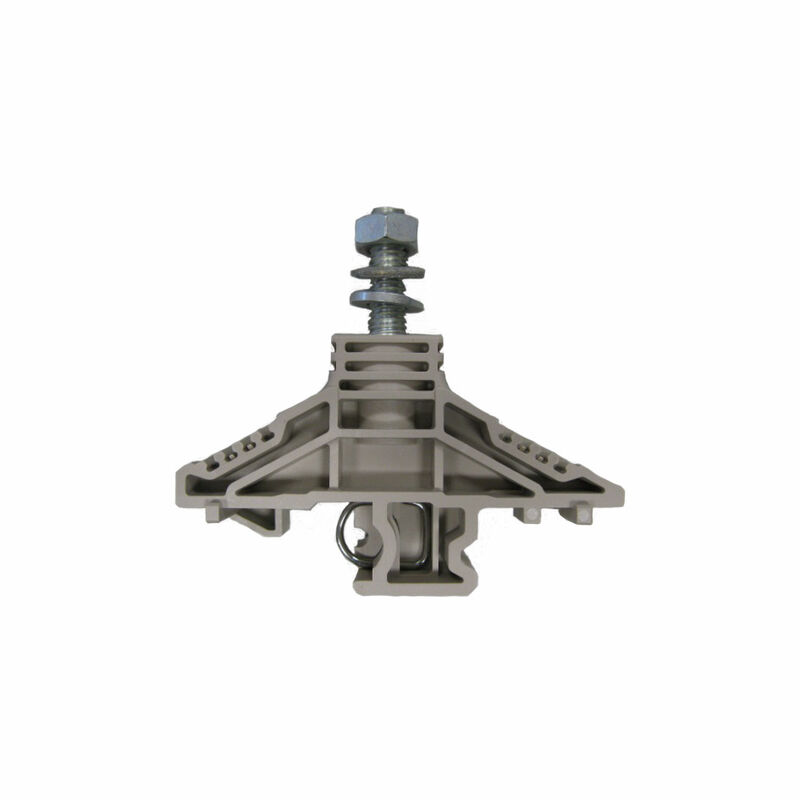

Weidmuller Weidmuller WF 6/32
