Weidmuller ZDLD 2.5-2N PE
Weidmuller 1131740000 - Feed-through and PE terminal Blocks - Width: 5.1 mm mm; Height: 110.5 mm mm; Storage Temperature: -25 °C...55 °C.
The Weidmuller 1131740000 is part of the Feed-through and PE terminal Blocks range in our industrial catalog. The manufacturer's published data for this part number specifies Width: 5.1 mm mm and Height: 110.5 mm mm.
Published specifications for this part include Storage Temperature: -25 °C...55 °C; Type of mounting: TS 35; Ambient temperature: -5 °C…40 °C; Type: ZDLD 2.5-2N PE; Depth: 69 mm; Net weight: 26.8 g; Colour: Green/yellow; Rated voltage: 500 V; Stripping length: 10 mm; Version: PE terminal, Tension-clamp connection, 2.5 mm², 500 V, Green/yellow; ROHS: Conform; Certificate No. (UR): E60693. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature | -5 °C…40 °C |
|---|---|
| Basic material | Wemid |
| Certificate No. (CSA) | 200039-1228250 |
| Certificate No. (UR) | E60693 |
| Clamping range, max. | 2.5 mm² |
| Clamping range, min. | 0.08 mm² |
| Colour | Green/yellow |
| Conductor size Factory wiring max. (UR) | 12 AWG |
| Conductor size Factory wiring min. (UR) | 26 AWG |
| Conductor size Field wiring max. (UR) | 12 AWG |
| Conductor size Field wiring min. (UR) | 26 AWG |
| Connection cross-section, stranded, max. | 2.5 mm² |
| Connection cross-section, stranded, min. | 0.08 mm² |
| Connection direction | top |
| Connection type, additional connection | Tension-clamp connection |
| Continuous operating temp., max. | 120 °C |
| Continuous operating temp., min. | -50 °C |
| Depth | 69 mm |
| Depth (inches) | 2.717 inch |
| Depth including DIN rail | 70 mm |
| ECLASS 14.0 | 27-25-01-04 |
| ECLASS 15.0 | 27-25-01-04 |
| End cover plate required | Yes |
| ETIM 10.0 | EC000901 |
| ETIM 8.0 | EC000901 |
| ETIM 9.0 | EC000901 |
| Explosion-tested version | No |
| GTIN (EAN) | 4032248922703 |
| Height | 110.5 mm mm |
| Height (inches) | 4.35 inch |
| Levels cross-connected internally | Yes |
| Mounting rail | TS 35 |
| N-function | No |
| Net weight | 26.8 g |
| Number of clamping points per level | 2 |
| Number of connections | 6 |
| Number of levels | 3 |
| Order No. | 1131740000 |
| PE connection | Yes |
| PE function | Yes |
| PEN function | No |
| Pollution severity | 3 |
| Power loss in accordance with IEC 60947-7-x | 0 W |
| Qty. | 50 items |
| Rated cross-section | 2.5 mm² |
| Rated DC voltage | 500 V |
| Rated voltage | 500 V |
| Rated voltage to adjoining terminal | 500 V |
| REACH SVHC | No SVHC above 0.1 wt% |
| ROHS | Conform |
| RoHS Compliance Status | Compliant without exemption |
| Snap-on | Yes |
| Standards | IEC 60947-7-2 |
| Storage Temperature | -25 °C...55 °C |
| Stripping length | 10 mm |
| Surge voltage category | III |
| Type | ZDLD 2.5-2N PE |
| Type of connection | Tension-clamp connection |
| Type of fixing | Snap-on |
| Type of mounting | TS 35 |
| UL 94 flammability rating | V-0 |
| Version | PE terminal, Tension-clamp connection, 2.5 mm², 500 V, Green/yellow |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Width | 5.1 mm mm |
| Width (inches) | 0.201 inch |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 30 |
| Wire connection cross section, finely stranded, max. | 2.5 mm² |
| Wire connection cross section, finely stranded, min. | 0.08 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.08 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.08 mm² |
| Wire connection cross-section, solid core, max. | 2.5 mm² |
| Wire connection cross-section, solid core, min. | 0.08 mm² |
| Wire cross section max. (CSA) | 12 AWG |
| Wire cross section max. (UR) | 12 AWG |
| Wire cross section min. (CSA) | 26 AWG |
| Wire cross section min. (UR) | 26 AWG |
Frequently Asked Questions
How do I get pricing for 1131740000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1131740000?
1131740000 is a Weidmuller part. KKM Solutions sources Weidmuller components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1131740000?
Key specifications include Ambient temperature: -5 °C…40 °C; Basic material: Wemid; Certificate No. (CSA): 200039-1228250; Certificate No. (UR): E60693. The full specification table on this page lists every published attribute for this part.
How quickly can 1131740000 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

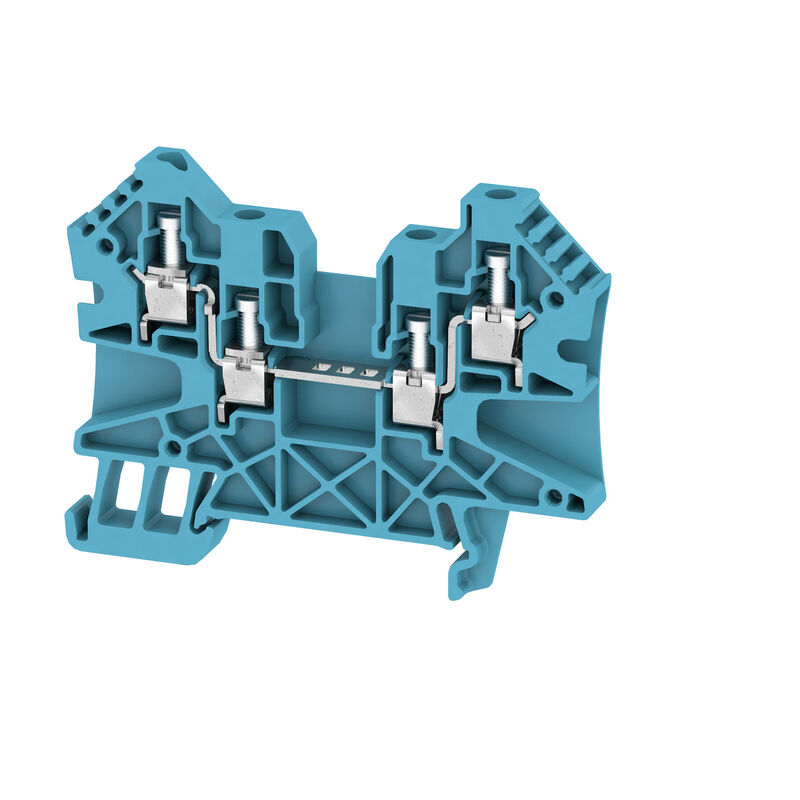

Weidmuller Weidmuller WDU 4/ZZ BL
Weidmuller Weidmuller ZDLD 2.5-2N/PE/L/L
Weidmuller Weidmuller ZDLD 2.5-2N/PE/L/N

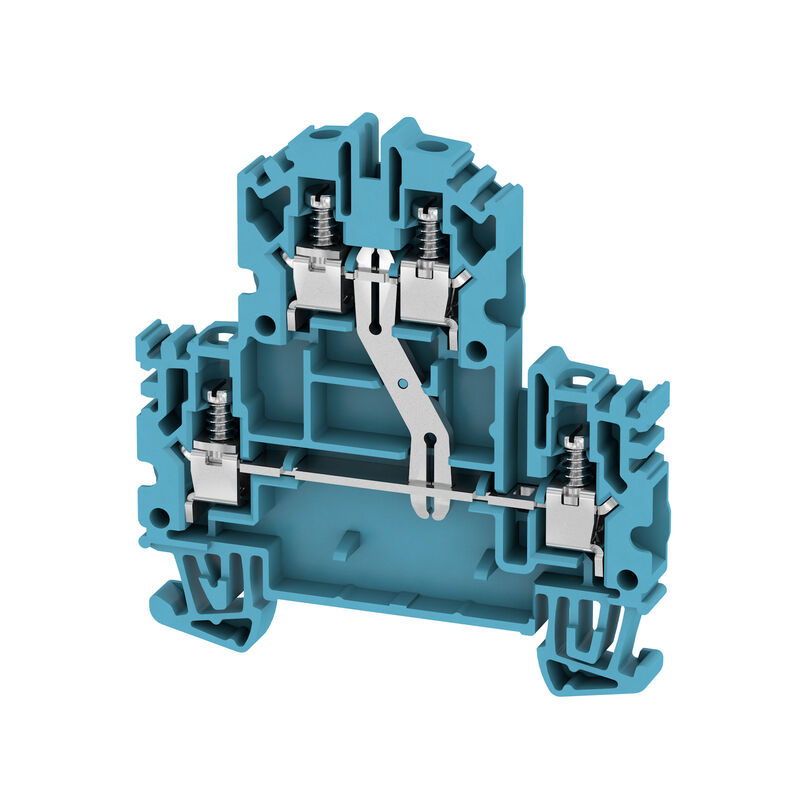

Weidmuller Weidmuller WDK 4N V BL

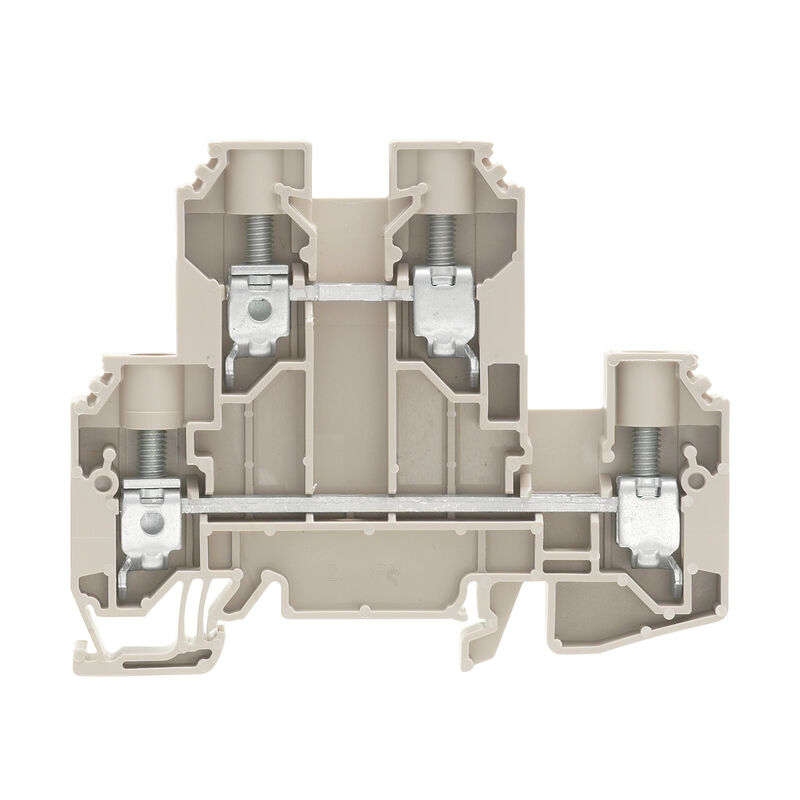

Weidmuller Weidmuller WDK 10
