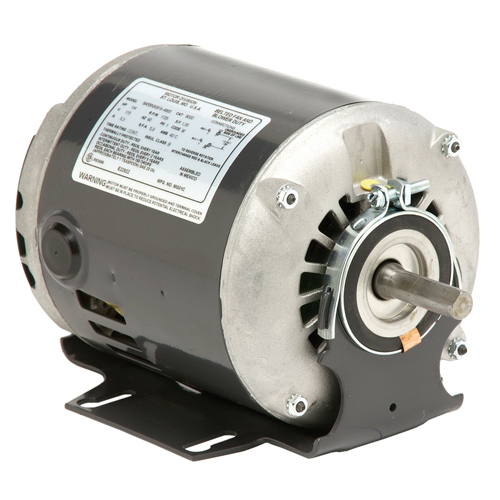

US Motors PD6002 .25 HP 4-Pole ODP 1-Phase 1725 RPM Electric Motor
| Ambient | 40 |
|---|---|
| Breakdown Torque | 37.59 |
| Breakdown Torque Uom | OZFT |
| Frme | 48 |
| Full Load Amps Primary | 5.2/2.5-2.6 |
| Hertz | 60 |
| Horsepower | .25 HP |
| Insulation Class | B |
| Kilowatts | 0.2 |
| Kva Code Letter | P |
| Locked Rotor Amps | 27.57 |
| Locked Rotor Torque Uom | OZFT |
| Locked-Rotor Torque | 13.51 |
| Motor Enclosure | ODP |
| Motor Type | FHP |
| Mounting | RESILIENT |
| Nema Nominal Efficiency | 55.5 |
| Number Speeds | 1 |
| Opposite End Bearing | 6203 |
| Phasetype | 1_SPLIT PHASE |
| Poles | 4 |
| Rotation | CCW LEAD END REV |
| Service Factor | 1.35 |
| Service Factor Amps Primary | 5.8/3.0-2.9 |
| Shaft Code | Z |
| Shaft End Bearing | 6203 |
| Shipping Weight | 22 |
| Speed | 1725 RPM |
| Stack | 1.75 |
| Stator Diameter | 5.5 |
| Thermal protection | AUTOMATIC RESET |
| Volts | 115 |
| Volts 2 | 208 |
| Volts 3 | 230 |
| Volts Primary | 115/208-230 V |
Frequently Asked Questions
How do I get pricing for PD6002?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the PD6002?
PD6002 is a US Motors part. KKM Solutions sources US Motors components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of PD6002?
Key specifications include Ambient: 40; Breakdown Torque: 37.59; Breakdown Torque Uom: OZFT; Frme: 48. The full specification table on this page lists every published attribute for this part.
How quickly can PD6002 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

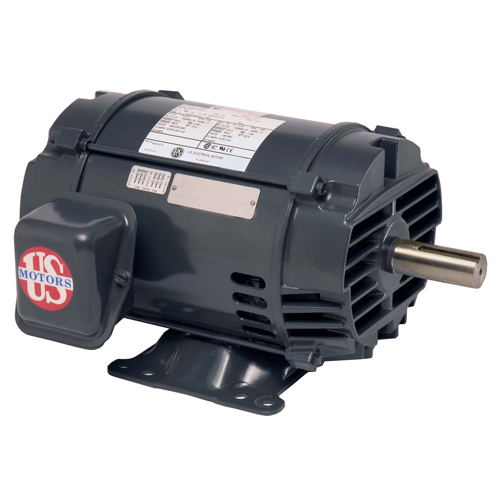

US Motors US Motors P063BSB3081895B 3/4 HP 4-Pole ODP 3-Phase 1725…
US Motors US Motors S15P1G 15 HP 2-Pole TEFC 3-Phase 3535…
US Motors US Motors NTX2213UV2 1.5 HP Electric Motor

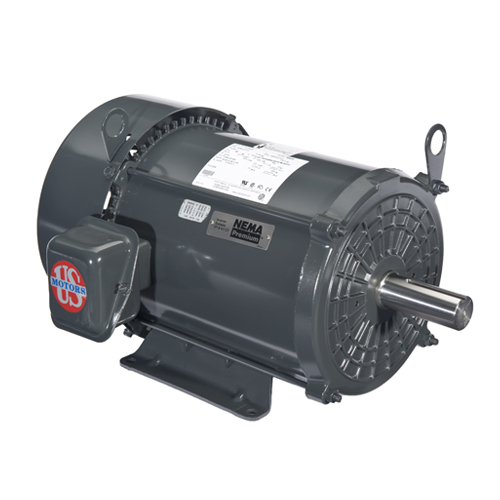

US Motors US Motors S20P2G 20 HP 4-Pole TEFC 3-Phase 1775…
