US Motors HD15P3G 15 HP 6-Pole TEFC 3-Phase 1180 RPM Electric Motor
| Ambient | 40 |
|---|---|
| Assembly Position | F1 |
| Breakdown Torque | 251 |
| Breakdown Torque Uom | PERCENT OF FLT |
| Frme | 284 |
| Full Load Amps Primary | 14.7 |
| Hertz | 60 |
| Horsepower | 15 HP |
| Insulation Class | F |
| Kilowatts | 11.2 |
| Kva Code Letter | F |
| Locked Rotor Amps | 87.1 |
| Locked Rotor Torque Uom | PERCENT OF FLT |
| Locked-Rotor Torque | 191 |
| Motor Enclosure | TEFC |
| Motor Type | CTE |
| Mounting | HORZ-FOOTED |
| Nema Nominal Efficiency | 91.7 |
| Number Speeds | 1 |
| Opposite End Bearing | 6210-2Z-J/C3 |
| Phasetype | 3_PHASE |
| Poles | 6 |
| Rotation | DUAL |
| Service Factor | 1.15 |
| Service Factor Amps Primary | 16.9 |
| Shaft Code | T |
| Shaft End Bearing | 6310-2Z-J/C3 |
| Shipping Weight | 310 |
| Speed | 1180 RPM |
| Startcapmfd | N\A |
| Volts | 575 |
| Volts Primary | 575 |
Frequently Asked Questions
How do I get pricing for HD15P3G?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the HD15P3G?
HD15P3G is a US Motors part. KKM Solutions sources US Motors components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of HD15P3G?
Key specifications include Ambient: 40; Assembly Position: F1; Breakdown Torque: 251; Breakdown Torque Uom: PERCENT OF FLT. The full specification table on this page lists every published attribute for this part.
How quickly can HD15P3G ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
US Motors US Motors HD150V1CS 150 HP 2-Pole TEFC 3-Phase 3580…
US Motors US Motors HD15V1B 15 HP 2-Pole TEFC-IP54 3-Phase 3549…
US Motors US Motors HD150P2FB 150 HP 4-Pole TEFC 3-Phase 1790…

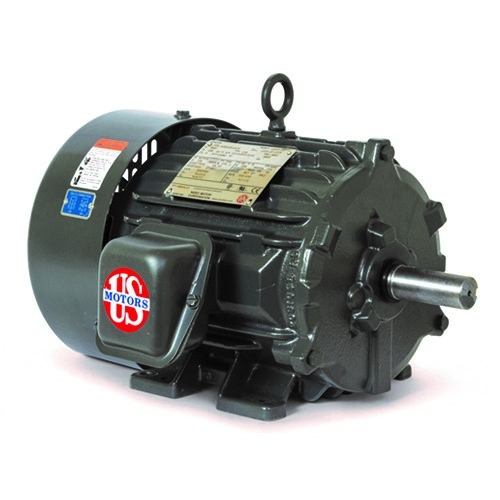

US Motors US Motors HD200P2GS 200 HP 4-Pole TEFC 3-Phase 1785…

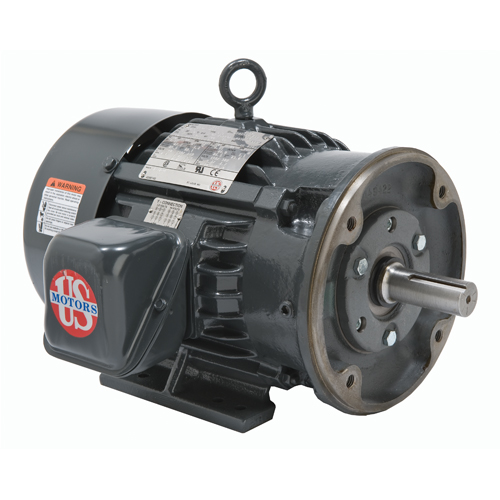

US Motors US Motors HD2P2EC 2 HP 4-Pole TEFC 3-Phase 1750…
