US Motors DJ1P2HM 1 HP 4-Pole ODP 3-Phase 1755 RPM Electric Motor
| Ambient | 40 |
|---|---|
| Assembly Position | F1 |
| Breakdown Torque | 544 |
| Breakdown Torque Uom | PERCENT OF FLT |
| Frme | 143 |
| Full Load Amps Primary | 3.6 |
| Hertz | 60 |
| Horsepower | 1 HP |
| Insulation Class | F |
| Kilowatts | 0.7 |
| Kva Code Letter | M |
| Locked Rotor Amps | 32 |
| Locked Rotor Torque Uom | PERCENT OF FLT |
| Locked-Rotor Torque | 434 |
| Motor Enclosure | ODP |
| Motor Type | DE4 |
| Mounting | HORZ-FOOTED |
| Nema Nominal Efficiency | 85.5 |
| Number Speeds | 1 |
| Opposite End Bearing | 6203-2Z-J/C3 |
| Phasetype | 3_PHASE |
| Poles | 4 |
| Service Factor | 1.15 |
| Service Factor Amps Primary | 3.9 |
| Shaft Code | JM |
| Shaft End Bearing | 6206-2Z-J/C3 |
| Shipping Weight | 30 |
| Speed | 1755 RPM |
| Startcapmfd | N\A |
| Volts | 200 |
| Volts Primary | 200 |
Frequently Asked Questions
How do I get pricing for DJ1P2HM?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the DJ1P2HM?
DJ1P2HM is a US Motors part. KKM Solutions sources US Motors components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of DJ1P2HM?
Key specifications include Ambient: 40; Assembly Position: F1; Breakdown Torque: 544; Breakdown Torque Uom: PERCENT OF FLT. The full specification table on this page lists every published attribute for this part.
How quickly can DJ1P2HM ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

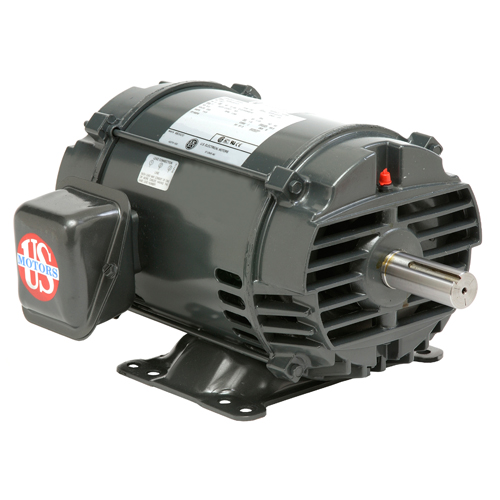

US Motors US Motors DH75S2GF 75 HP 4-Pole ODP 3-Phase 1780…

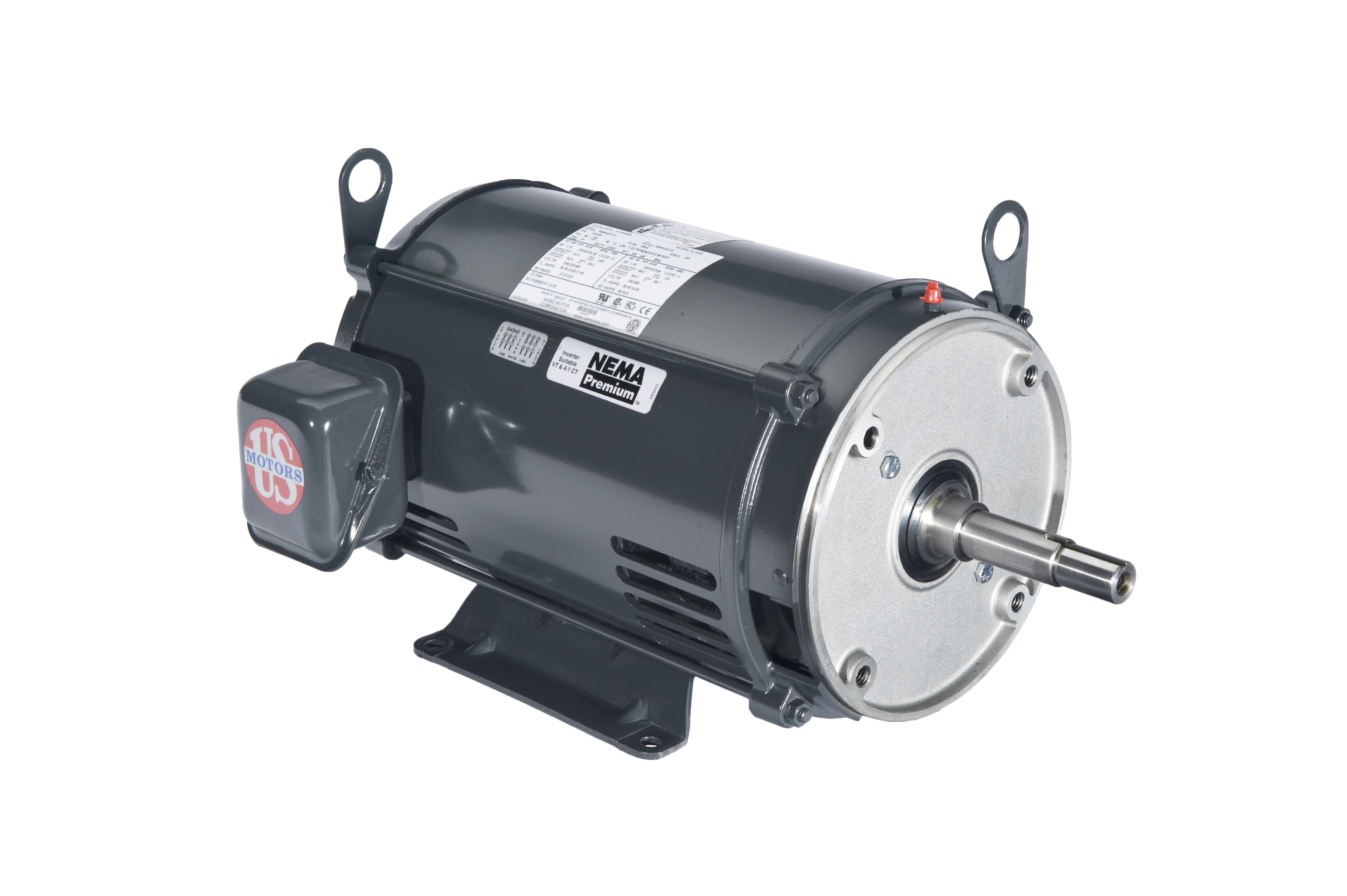

US Motors US Motors DJ30P2DM 30 HP 4-Pole ODP 3-Phase 1780…
US Motors US Motors D7P2D 7 1/2 HP 4-Pole ODP 3-Phase…
US Motors US Motors DJ50P1EM 50 HP 2-Pole ODP 3-Phase 3545…

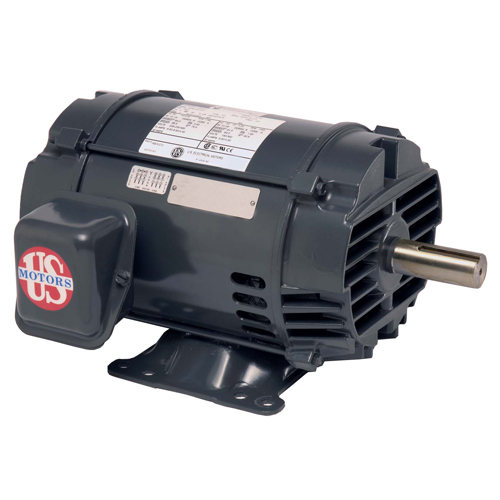

US Motors US Motors D60P2FS 60 HP 4-Pole ODP 3-Phase 1780…
