US Motors D15P1H 15 HP 2-Pole ODP 3-Phase 3506 RPM Electric Motor
| Ambient | 40 |
|---|---|
| Assembly Position | F1 |
| Breakdown Torque | 257 |
| Breakdown Torque Uom | PERCENT OF FLT |
| Frme | 215 |
| Full Load Amps Primary | 41 |
| Hertz | 60 |
| Horsepower | 15 HP |
| Insulation Class | F |
| Kilowatts | 11.2 |
| Kva Code Letter | F |
| Locked Rotor Amps | 241 |
| Locked Rotor Torque Uom | PERCENT OF FLT |
| Locked-Rotor Torque | 161 |
| Motor Enclosure | ODP |
| Motor Type | DE |
| Mounting | HORZ-FOOTED |
| Nema Nominal Efficiency | 91 |
| Number Speeds | 1 |
| Opposite End Bearing | 6205-2Z-J/C3 |
| Phasetype | 3_PHASE |
| Poles | 2 |
| Service Factor | 1 |
| Shaft Code | T |
| Shaft End Bearing | 6208-2Z-J/C3 |
| Shipping Weight | 105 |
| Speed | 3506 RPM |
| Startcapmfd | N\A |
| Volts | 200 |
| Volts Primary | 200 |
Frequently Asked Questions
How do I get pricing for D15P1H?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the D15P1H?
D15P1H is a US Motors part. KKM Solutions sources US Motors components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of D15P1H?
Key specifications include Ambient: 40; Assembly Position: F1; Breakdown Torque: 257; Breakdown Torque Uom: PERCENT OF FLT. The full specification table on this page lists every published attribute for this part.
How quickly can D15P1H ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
US Motors US Motors D150V1GS 150 HP 2-Pole ODP 3-Phase 3560…
US Motors US Motors D15P3E 15 HP 6-Pole ODP 3-Phase 1180…
US Motors US Motors D150P3G 150 HP 6-Pole ODP 3-Phase 1190…
US Motors US Motors D1CP2PH 1 HP 4-Pole ODP 1-Phase 1725…

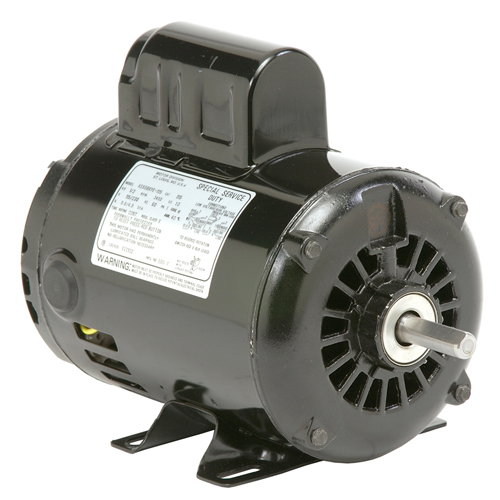

US Motors US Motors D13CP2P4 .33 HP 4-Pole ODP 1-Phase 1725…
