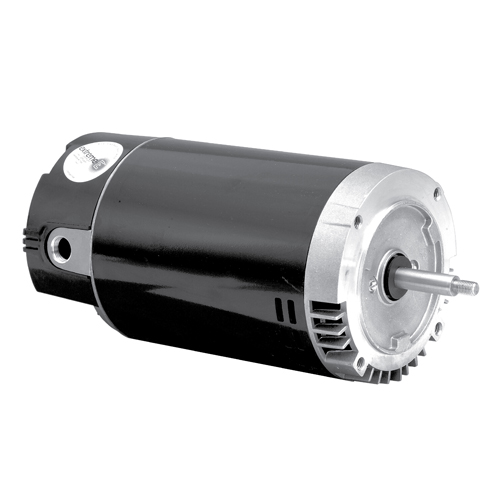

US Motors ASB796 2.25 HP 2-Pole ODP 1-Phase 3450 RPM Electric Motor
| Ambient | 50 |
|---|---|
| Breakdown Torque | 113.3 |
| Breakdown Torque Uom | OZFT |
| Frme | 56 |
| Full Load Amps Primary | 9.7-9.0/18.0 |
| Hertz | 60 |
| Horsepower | 2.25 HP |
| Insulation Class | B |
| Kva Code Letter | H |
| Locked Rotor Amps | 39.72 |
| Locked Rotor Torque Uom | OZFT |
| Locked-Rotor Torque | 13.58 |
| Motor Enclosure | ODP |
| Motor Type | FHP |
| Mounting | C-FACE |
| Number Speeds | 1 |
| Opposite End Bearing | 6203 |
| Phasetype | 1_PERMANENT SPLIT CA |
| Poles | 2 |
| Rotation | CCW DRIVE END |
| Runcapmfd | 50 |
| Runcapvolts | 370 |
| Shaft Code | J |
| Shaft End Bearing | 6203 |
| Shipping Weight | 32 |
| Speed | 3450 RPM |
| Stack | 3 |
| Stator Diameter | 6.3 |
| Thermal protection | AUTOMATIC RESET |
| Volts | 208 |
| Volts 2 | 230 |
| Volts 3 | 115 |
| Volts Primary | 208-230/115 V |
Frequently Asked Questions
How do I get pricing for ASB796?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the ASB796?
ASB796 is a US Motors part. KKM Solutions sources US Motors components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of ASB796?
Key specifications include Ambient: 50; Breakdown Torque: 113.3; Breakdown Torque Uom: OZFT; Frme: 56. The full specification table on this page lists every published attribute for this part.
How quickly can ASB796 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

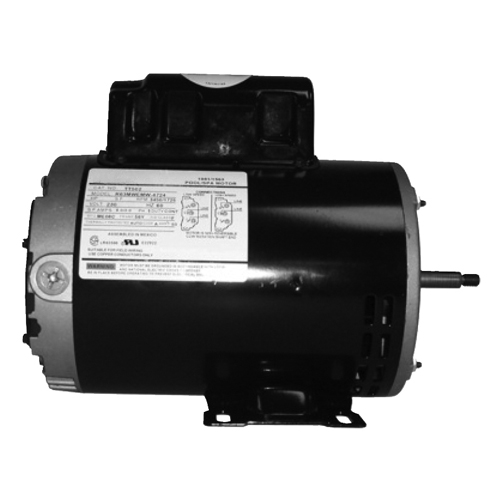

US Motors US Motors ASB605 3 HP 2-Pole ODP 1-Phase 3450…

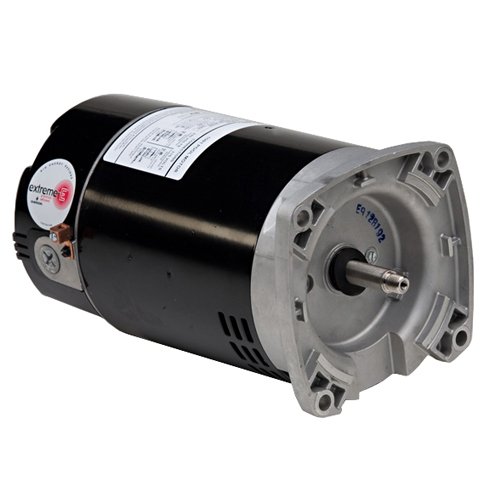

US Motors US Motors ASB848 1.65 HP 2-Pole ODP 1-Phase 3450…
US Motors US Motors B25T3B 25 HP 6-Pole TEBC 3-Phase 1195…

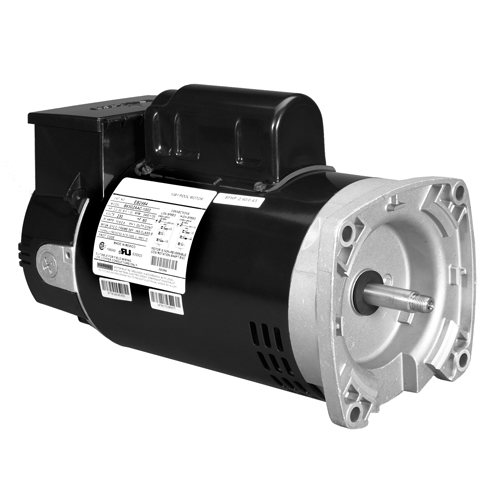

US Motors US Motors ASB2982T 1.65 HP 2-Pole ODP 1-Phase 3450…
