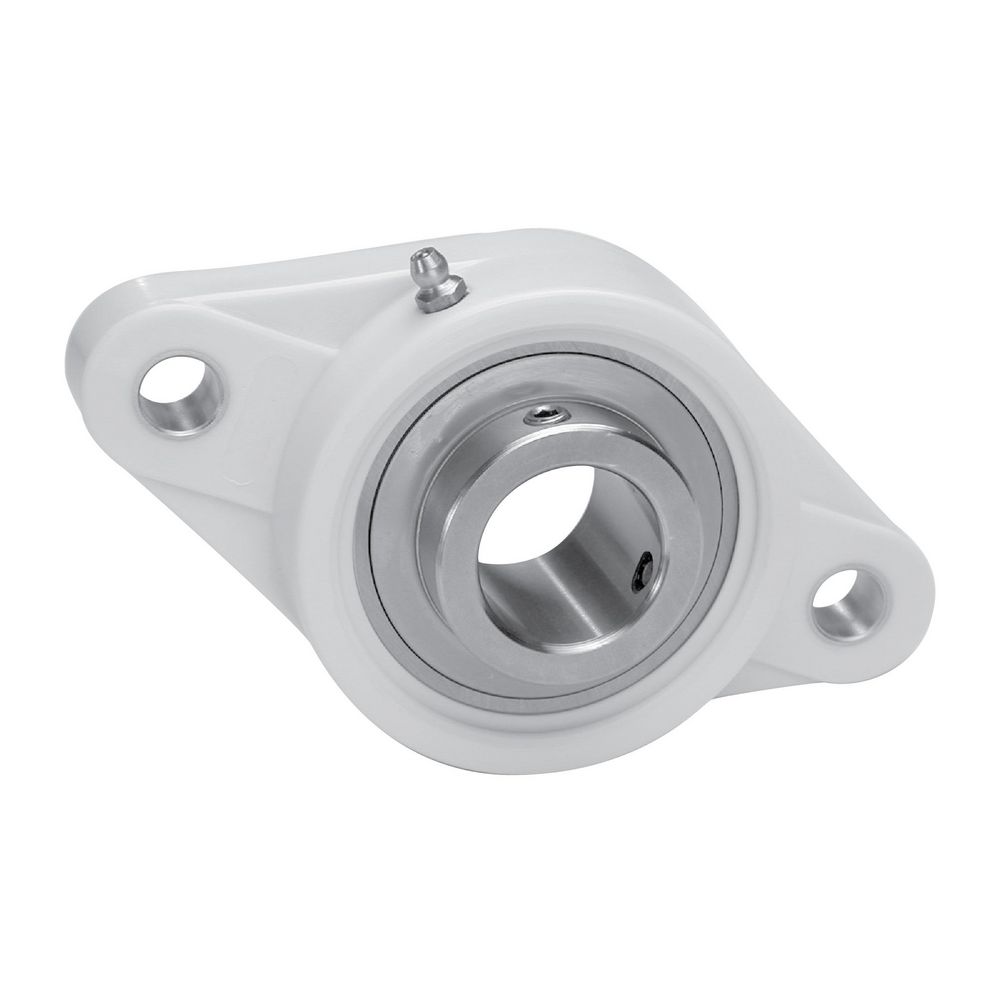

IPTCI CUCTFL207-23 — Flange Bearing Units
IPTCI CUCTFL207-23 - Flange Bearing Units - Series: CUCSFL Hard Chrome Coated Set Screw Locking Thermoplastic 2-Bolt Flange; Housing material: Thermoplastic; Overall Width: 44 mm.
The IPTCI CUCTFL207-23 is part of the Flange Bearing Units range in our industrial catalog. The manufacturer's published data for this part number specifies Series: CUCSFL Hard Chrome Coated Set Screw Locking Thermoplastic 2-Bolt Flange and Housing material: Thermoplastic.
Key manufacturer data on file for this item includes Overall Width: 44 mm; Dynamic Load Rating: 5535; Static Load Rating: 3340; Operating temperature - max: 250 °; Bore Diameter: 1.4375 in; Industry Standard: AFBMA; Bearing Material: Hard Chrome Coated Steel; Closure Type: Dual Seals (B-Type); Grease Type: H1 Food Grade Grease; Mounting Type: Two (2) Bolt, Two (2) Bolt Flange; Locking Type: Set Screw; Length Through Bore: 1.689 in. See the Specifications tab on this page for the full technical table.
| Bearing Material | Hard Chrome Coated Steel |
|---|---|
| Bore Diameter | 1.4375 in |
| Closure Type | Dual Seals (B-Type) |
| Duty Type | Standard |
| Dynamic Load Rating | 5535 |
| Grease Type | H1 Food Grade Grease |
| Housing material | Thermoplastic |
| Industry Standard | AFBMA |
| Length Through Bore | 1.689 in |
| Locking Type | Set Screw |
| Mounting Type | Two (2) Bolt, Two (2) Bolt Flange |
| Operating temperature - max | 250 ° |
| Overall Width | 44 mm |
| Relubricatable | Relubricatable |
| Series | CUCSFL Hard Chrome Coated Set Screw Locking Thermoplastic 2-Bolt Flange |
| Static Load Rating | 3340 |
Frequently Asked Questions
How do I get pricing for CUCTFL207-23?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the CUCTFL207-23?
CUCTFL207-23 is a IPTCI part. KKM Solutions sources IPTCI components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of CUCTFL207-23?
Key specifications include Bearing Material: Hard Chrome Coated Steel; Bore Diameter: 1.4375 in; Closure Type: Dual Seals (B-Type); Duty Type: Standard. The full specification table on this page lists every published attribute for this part.
How quickly can CUCTFL207-23 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
