Inductive sensor - UI0011
IFM UI0011 - Inductive sensor - Material: brass white bronze coated; PA; PBT; Weight: 229.064; Ambient temperature: -25...70.
In our catalog, the UI0011 from IFM is listed under the Inductive sensor category. The manufacturer's published data for this part number specifies Material: brass white bronze coated; PA; PBT and Weight: 229.064.
With combined AC/DC output and two-wire technology; Long sensing range minimizes physical damage; Wide operating temperature range; Robust metal housing for use in harsh industrial environments; With robust 1/2" connector
The specification set recorded for this part number covers Ambient temperature: -25...70; Connector: 1 x 1/2"; coding: C; Protection class: I; Dimensions: M18 x 1 / L = 72; Product type: Inductive sensor; Mounting: non-flush mountable; Short-circuit-proof: no; Operating voltage: 20...250 AC/DC; Reverse polarity protection: no; Sensing range: 12; Overload protection: no; Special Feature: Increased sensing range. See the Specifications tab on this page for the full technical table.
| Ambient temperature | -25...70 |
|---|---|
| Connector | 1 x 1/2"; coding: C |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.5 / copper: 0.4 |
| Dimensions | M18 x 1 / L = 72 |
| Housing | Threaded type |
| Hysteresis | 3...15 |
| Increased sensing range | yes |
| Key Features | With combined AC/DC output and two-wire technology; Long sensing range minimizes physical damage; Wide operating temperature range; Robust metal housing for use in harsh industrial environments; With robust 1/2" connector |
| Material | brass white bronze coated; PA; PBT |
| Max. leakage current | 1 (250 V AC) / 0.8 (140 V AC) / 0.8 (24 V DC) |
| Max. voltage drop switching output AC | 6.5 |
| Max. voltage drop switching output DC | 6 |
| Minimum load current | 5 |
| Mounting | non-flush mountable |
| Operating distance | 0...9.7 |
| Operating voltage | 20...250 AC/DC |
| Output function | normally open |
| Overload protection | no |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output AC | 250; (350 (...50 °C)) |
| Permanent current rating of switching output DC | 100 |
| Product type | Inductive sensor |
| Protection | IP 67 |
| Protection class | I |
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting |
| Reverse polarity protection | no |
| Sensing range | 12 |
| Short-circuit-proof | no |
| Short-time current rating of switching output | 2200; (20 ms / 0,5 Hz) |
| Special Feature | Increased sensing range |
| Specification Summary | Inductive sensor; M18 x 1 / L = 72 mm; Sensing range 12 mm non-flush mountable; normally open; AC/DC; 1/2" Connector; IP 67; 2-wire; Ambient temperature -25...70 °C; Switching frequency 25 Hz AC / 90 Hz DC |
| Switching frequency AC | 25 |
| Switching frequency DC | 90 |
| Thread designation | M18 x 1 |
| Weight | 229.064 |
Frequently Asked Questions
How do I get pricing for UI0011?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the UI0011?
UI0011 is a IFM part. KKM Solutions sources IFM components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of UI0011?
Key specifications include Ambient temperature: -25...70; Connector: 1 x 1/2"; coding: C; Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.5 / copper: 0.4; Dimensions: M18 x 1 / L = 72. The full specification table on this page lists every published attribute for this part.
How quickly can UI0011 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

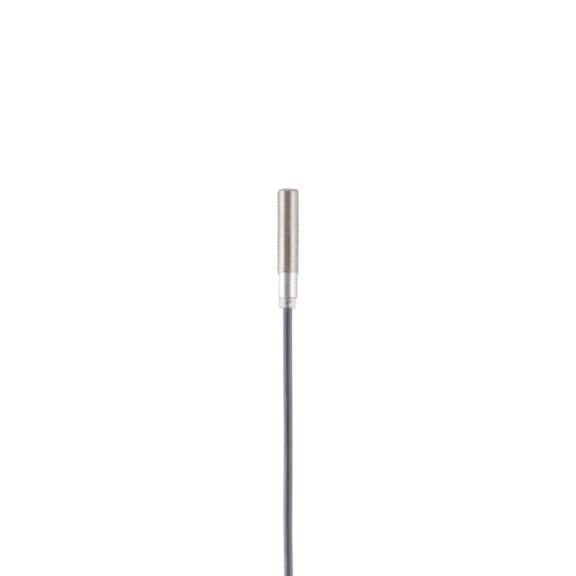

IFM Inductive sensor - IY5038
IFM Inductive sensor - IY5029

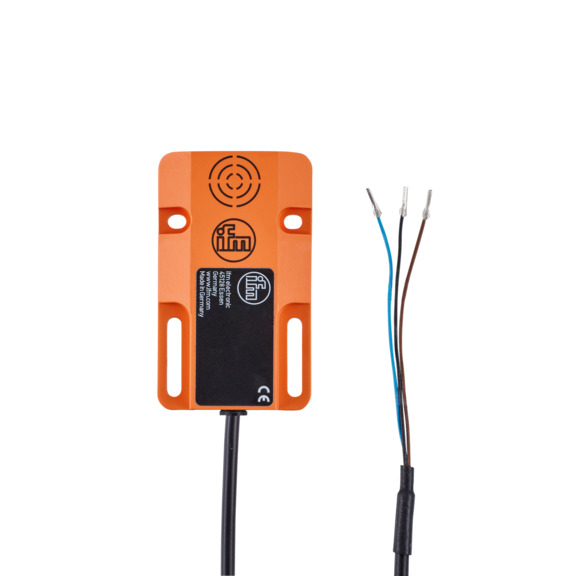

IFM Inductive sensor - IW5060
