Safety light curtain - OY808S
IFM OY808S - Safety light curtain - Material: housing: aluminum; front lens: PC; Weight: 6238.6; Ambient temperature: 0...55.
In our catalog, the OY808S from IFM is listed under the Safety light curtain category. The manufacturer's published data for this part number specifies Material: housing: aluminum; front lens: PC and Weight: 6238.6.
1 x M12; coding: A; Contacts: 8; Maximum cable length: 100 m; for wire cross-section 0.34 mm²
Key manufacturer data on file for this item includes Ambient temperature: 0...55; Protection class: III; Dimensions: 1311 x 35 x 45; Product type: Safety light curtain; Response time: 19; Operating voltage: 24 DC; Current consumption: 125; Reverse polarity protection: yes; Applications: Class C to EN 60654-1 weatherproof application; Length L: 1311 mm; Floating Blanking: yes; Wave length: 950. See the Specifications tab on this page for the full technical table.
| Ambient temperature | 0...55 |
|---|---|
| Applications | Class C to EN 60654-1 weatherproof application |
| Connector | 1 x M12; coding: A; Contacts: 8; Maximum cable length: 100 m; for wire cross-section 0.34 mm² |
| Current consumption | 125 |
| Dimensions | 1311 x 35 x 45 |
| Electrical design | PNP |
| ESPE type (IEC 61496-1) | 4 |
| Floating Blanking | yes |
| Key Features | With floating blanking; Reliable protection of hazardous areas; For safe material feed on presses; Complies with the requirements of type 4 to IEC 61496; Short and long range selectable via wiring |
| Length L | 1311 mm |
| Material | housing: aluminum; front lens: PC |
| Max. current load per OSSD output | 500; (24 V) |
| Max. relative air humidity | 95 |
| MIssion time TM | 175200 |
| Number of OSSD outputs | 2 |
| Operating voltage | 24 DC |
| Operating voltage tolerance | 20 |
| Pack quantity | 1 pcs. |
| PFH | 2,1E-08 |
| Power-on delay time | < 18 |
| Product type | Safety light curtain |
| Protected area height | 1210 |
| Protection | IP 65 |
| Protection area width (high light intensity) | 0...5 |
| Protection area width (low light intensity) | 0...3 |
| Protection class | III |
| Protective function | Access prevention finger protection |
| Resolution (detection capacity d) | 14 |
| Response time | 19 |
| Reverse polarity protection | yes |
| Short circuit protection | yes |
| Specification Summary | Safety light curtain; Protected area height 1210 mm; Resolution (detection capacity d) 14 mm; IEC 62061 SILcl 3; IP 65; Connector |
| Type of light | Infrared light |
| Wave length | 950 |
| Weight | 6238.6 |
Frequently Asked Questions
How do I get pricing for OY808S?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the OY808S?
OY808S is a IFM part. KKM Solutions sources IFM components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of OY808S?
Key specifications include Ambient temperature: 0...55; Applications: Class C to EN 60654-1 weatherproof application; Connector: 1 x M12; coding: A; Contacts: 8; Maximum cable length: 100 m; for wire cross-section 0.34 mm²; Current consumption: 125. The full specification table on this page lists every published attribute for this part.
How quickly can OY808S ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
IFM Safety light curtain - OY807S
IFM Safety light curtain - OY815S

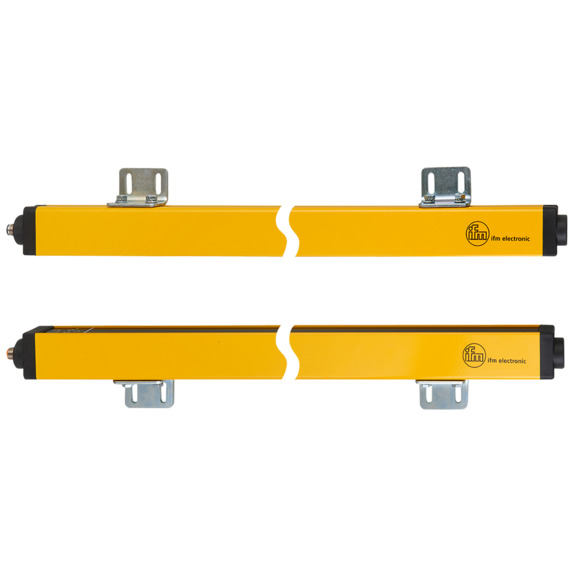

IFM Safety light curtain - OY806S
