Inductive sensor - IM5038
IFM IM5038 - Inductive sensor - Material: PPE; Weight: 197.75; Ambient temperature: -25...80.
In our catalog, the IM5038 from IFM is listed under the Inductive sensor category. The manufacturer's published data for this part number specifies Material: PPE and Weight: 197.75.
Long sensing range for use in conveying; Output function normally open / normally closed programmable; Two-wire technology; Robust housing for use in harsh industrial environments; Five selectable positions of the sensing face
The specification set recorded for this part number covers Ambient temperature: -25...80; Terminals: ...2.5 mm²; Cable sheath: Ø 7...13 mm; Cable gland: M20 X 1.5; Protection class: II; Dimensions: 40 x 40 x 120; Product type: Inductive sensor; Mounting: non-flush mountable; Operating voltage: 10...55 DC; Reverse polarity protection: yes; Sensing range: 20; Overload protection: yes; Output function: normally open / closed; (selectable); Hysteresis: 1...15. See the Specifications tab on this page for the full technical table.
| Ambient temperature | -25...80 |
|---|---|
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2 |
| Dimensions | 40 x 40 x 120 |
| Electrical design | PNP/NPN |
| Housing | rectangular |
| Hysteresis | 1...15 |
| Key Features | Long sensing range for use in conveying; Output function normally open / normally closed programmable; Two-wire technology; Robust housing for use in harsh industrial environments; Five selectable positions of the sensing face |
| Material | PPE |
| Max. leakage current | 1 |
| Max. voltage drop switching output DC | 4.6 |
| Minimum load current | 4 |
| Mounting | non-flush mountable |
| MTTF | 1633 |
| Operating distance | 0...16.2 |
| Operating voltage | 10...55 DC |
| Output function | normally open / closed; (selectable) |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 400 |
| Product type | Inductive sensor |
| Protection | IP 65 |
| Protection class | II |
| Real sensing range Sr | 20 ± 10 % |
| Reverse polarity protection | yes |
| Sensing range | 20 |
| Short circuit protection | yes |
| Specification Summary | Inductive sensor; 40 x 40 x 120 mm; Sensing range 20 mm non-flush mountable; normally open / closed; (selectable); DC; PNP/NPN; terminals: ...2,5 mm²; Cable sheath: Ø 7...13 mm; IP 65; 2-wire; Ambient temperature -25...80 °C; Switching frequency 300 Hz |
| Switch-point drift | -10...10 |
| Switching frequency DC | 300 |
| Terminals | ...2.5 mm²; Cable sheath: Ø 7...13 mm; Cable gland: M20 X 1.5 |
| Type of short-circuit protection | yes (non-latching) |
| Weight | 197.75 |
Frequently Asked Questions
How do I get pricing for IM5038?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the IM5038?
IM5038 is a IFM part. KKM Solutions sources IFM components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of IM5038?
Key specifications include Ambient temperature: -25...80; Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2; Dimensions: 40 x 40 x 120; Electrical design: PNP/NPN. The full specification table on this page lists every published attribute for this part.
How quickly can IM5038 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
IFM Inductive sensor - IM5037

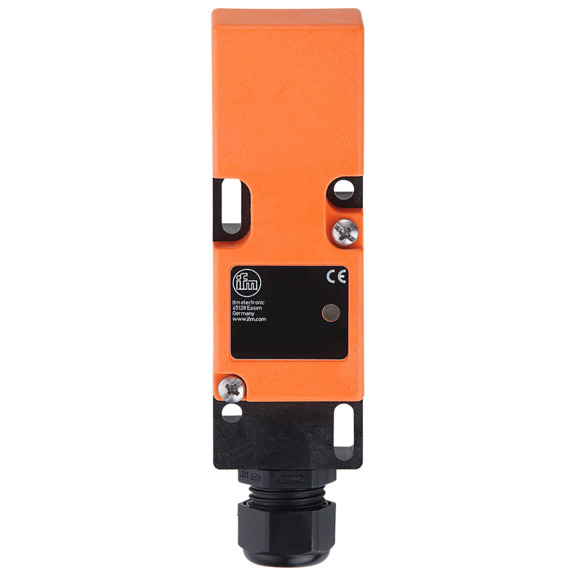

IFM Inductive sensor - IM5040

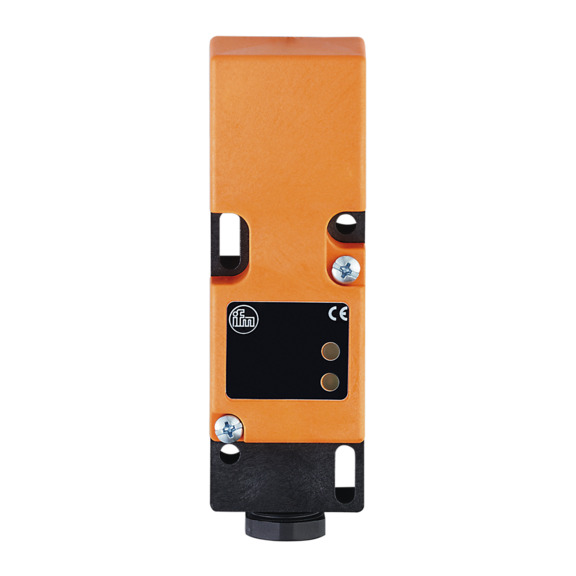

IFM Inductive sensor - IM5041
