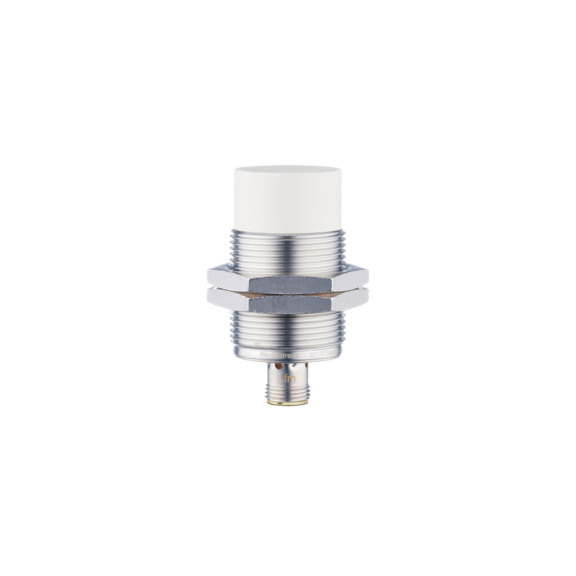

Inductive sensor - IIS235
IFM IIS235 - Inductive sensor - Weight: 114.8; Ambient temperature: -40...85; Connector: 1 x M12; coding: A; Contacts: gold-plated.
This listing covers the IFM IIS235, a part number in the Inductive sensor category. The manufacturer's published data for this part number specifies Weight: 114.8 and Ambient temperature: -40...85.
housing: brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated
Published specifications for this part include Connector: 1 x M12; coding: A; Contacts: gold-plated; Protection class: III; Dimensions: M30 x 1.5 / L = 60; Product type: Inductive sensor; Mounting: flush mountable; Operating voltage: 10...30 DC; Current consumption: < 10; Reverse polarity protection: yes; Sensing range: 15; Overload protection: yes; Special Feature: gold-plated contacts; Increased sensing range; Output function: normally closed. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature | -40...85 |
|---|---|
| Application | Suitable for industrial, mobile, cooling and lubricating applications; Industrial applications |
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 |
| Current consumption | < 10 |
| Dimensions | M30 x 1.5 / L = 60 |
| Electrical design | NPN |
| Embedded software included | yes |
| Housing | Threaded type |
| Hysteresis | 3...15 |
| Increased sensing range | yes |
| Key Features | Suitable for industrial, mobile, cooling and lubricating applications; High protection rating for the requirements of harsh industrial environments; Wide operating temperature range; Safe detection due to large sensing range and low sensor tolerances; Reduced inventory due to wide range of applications |
| Material | housing: brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated |
| Max. voltage drop switching output DC | 2.5 |
| Mounting | flush mountable |
| MTTF | 1594 |
| Operating distance | 0...12.15 |
| Operating voltage | 10...30 DC |
| Output function | normally closed |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 100 |
| Product type | Inductive sensor |
| Protection | IP 65; IP 66; IP 67; IP 68; IP 69K |
| Protection class | III |
| Real sensing range Sr | 15 ± 10 % |
| Reverse polarity protection | yes |
| Sensing range | 15 |
| Short circuit protection | yes |
| Special Feature | gold-plated contacts; Increased sensing range |
| Specification Summary | Inductive sensor; M30 x 1.5 / L = 60 mm; Sensing range 15 mm flush mountable; normally closed; DC; NPN; M12 Connector; IP 65; IP 66; IP 67; IP 68; IP 69K; 3-wire; Ambient temperature -40...85 °C; Switching frequency 100 Hz |
| Switch-point drift | -10...10 |
| Switching frequency DC | 100 |
| Thread designation | M30 x 1.5 |
| Weight | 114.8 |
Frequently Asked Questions
How do I get pricing for IIS235?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the IIS235?
IIS235 is a IFM part. KKM Solutions sources IFM components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of IIS235?
Key specifications include Ambient temperature: -40...85; Application: Suitable for industrial, mobile, cooling and lubricating applications; Industrial applications; Connector: 1 x M12; coding: A; Contacts: gold-plated; Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3. The full specification table on this page lists every published attribute for this part.
How quickly can IIS235 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
