IO-Link input/output module - AL2303
IFM AL2303 - IO-Link input/output module - Material: housing: PA orange; Socket: brass nickel-plated; Weight: 467.716; Storage Temperature: -25...70.
This listing covers the IFM AL2303, a part number in the IO-Link input/output module category. The manufacturer's published data for this part number specifies Material: housing: PA orange; Socket: brass nickel-plated and Weight: 467.716.
Different digital and analog input / output functions for IO-Link communication in just one module; 8 independently configurable I/O ports; Electrical separation between auxiliary voltage and IO-Link
The specification set recorded for this part number covers Storage Temperature: -25...70; Type of mounting: Backplane mounting; Ambient temperature: -25...60; Connector: 1 x M12; coding: A; Contacts: 5; Tightening torque: < 0.8; Protection class: III; Dimensions: 208 x 59.3 x 38.4; Number of digital inputs: 16; (configurable); Number of digital outputs: 16; (configurable); Pollution degree: 2; Product type: IO-Link input/output module; Communication interface: IO-Link. The complete technical table is shown in the Specifications tab on this page.
| Actuator supply outputs | UA |
|---|---|
| Additional voltage supply | 18...30 DC; (UA) |
| Ambient temperature | -25...60 |
| Analog input (current) | 4...20 |
| Analog input (voltage) | 0...10 |
| Communication interface | IO-Link |
| Connector | 1 x M12; coding: A; Contacts: 5 |
| Current consumption | 100; (US) |
| Dimensions | 208 x 59.3 x 38.4 |
| Housing | rectangular |
| Input circuit of digital inputs | PNP; (type 3 (IEC 61131-2)) |
| Input current High | 2...15 |
| Input current low | 0...1.5 |
| IO-Link revision | 1.1 |
| Key Features | Different digital and analog input / output functions for IO-Link communication in just one module; 8 independently configurable I/O ports; Electrical separation between auxiliary voltage and IO-Link |
| Material | housing: PA orange; Socket: brass nickel-plated |
| Max. current consumption from additional supply | 3600; (UA) |
| Max. current load outputs total | 3.6; (max. current load per segment: 1800 mA) |
| Max. current load per output | 1800 |
| Max. height above sea level | 2000 |
| Max. relative air humidity | 90 |
| Min. process cycle time | 4 |
| MTTF | 40 |
| Number of Analog Inputs | 8; (configurable current/voltage input) |
| Number of digital inputs | 16; (configurable) |
| Number of digital outputs | 16; (configurable) |
| Number of inputs and outputs | Number of digital inputs: 16; Number of analog inputs: 8; Number of digital outputs: 16 |
| Operating voltage | 18...30 DC |
| Pack quantity | 1 pcs. |
| Pollution degree | 2 |
| Product type | IO-Link input/output module |
| Protection | IP 65; IP 67 |
| Protection class | III |
| Protection rating (NEMA 250) | 6P |
| Required master port class | B |
| Resolution of analog input | 16 Bit |
| SDCI standard | IEC 61131-9 |
| Sealing material | FKM |
| Sensor supply of the inputs | UA |
| Short circuit protection | yes |
| SIO mode | no |
| Specification Summary | IO-Link input/output module; 208 x 59.3 x 38.4 mm; Number of digital inputs 16; (configurable); Number of digital outputs 16; (configurable); IP 65; IP 67 |
| Storage Temperature | -25...70 |
| Switching level high | 11...28 |
| Switching level low | 0...5 |
| Tightening torque | < 0.8 |
| Total number of inputs and outputs | 16 |
| Transmission type | COM3 (230,4 kBaud) |
| Type of mounting | Backplane mounting |
| Voltage supply | 18...30 |
| Weight | 467.716 |
Frequently Asked Questions
How do I get pricing for AL2303?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the AL2303?
AL2303 is a IFM part. KKM Solutions sources IFM components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of AL2303?
Key specifications include Actuator supply outputs: UA; Additional voltage supply: 18...30 DC; (UA); Ambient temperature: -25...60; Analog input (current): 4...20. The full specification table on this page lists every published attribute for this part.
How quickly can AL2303 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
IFM IO-Link input/output module - AL2301
IFM IO-Link input/output module - AL2305
IFM IO-Link input/output module - AL2321
IFM IO-Link input/output module - AL2323

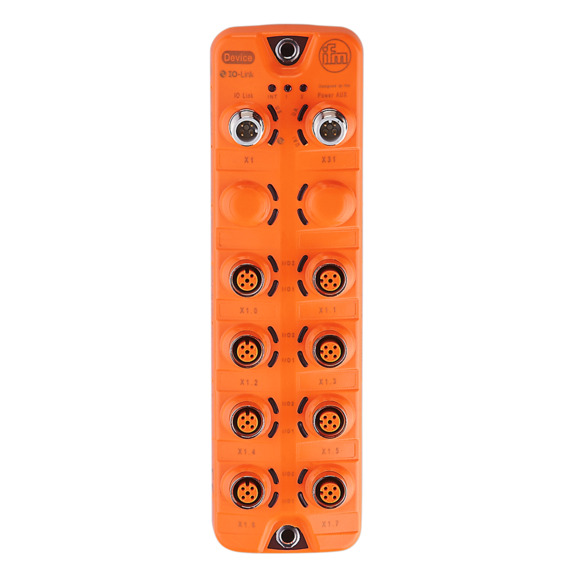

IFM IO-Link input/output module - AL2325
