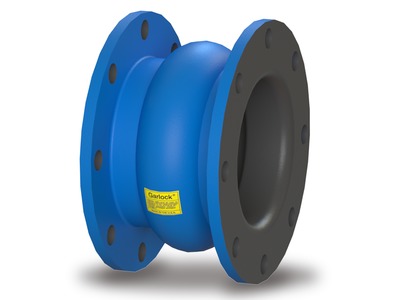

Garlock Style 204HP Pipe Expansion Joint
Style 204HP Pipe Expansion Joint, EPDM Tube Material, Chlorobutyl Cover Material, Polyester Body Material, 20.000 inch Inside Diameter, 7.500 inch Face-to-Face Length, 1 Hollow Arch, Holes for Following Flange Standard(s): ASME Class 125/150 A; Blue Paint
| Angular | No |
|---|---|
| Body material | Polyester |
| Body Material Abbreviation | PL |
| Brand | Garlock® |
| Compliances | ABS Approved |
| Compliances/Standards | ABS Approved |
| Compression Movement (Inch) | 0.875 |
| Compression Movement (mm) | 22.22 |
| Cover Color Coating | Blue Paint |
| Cover material | Chlorobutyl |
| Cover Material Abbreviation | CIIR |
| Elongation Movement (Inch) | 0.438 |
| Elongation Movement (mm) | 11.11 |
| Face to Face Length (Inch) | 7.500 |
| Face to Face Length (mm) | 190.50 |
| Filled Arches | Hollow |
| Flange 1 Bolt Circle Diameter (Inch) - Large Side | 25.000 |
| Flange 1 Bolt Circle Diameter (mm) - Large Side | 635.00 |
| Flange 1 Bolt Hole Diameter (Inch) - Large Side | 1.250 |
| Flange 1 Bolt Hole Quantity - Large Side | 20 |
| Flange 1 Bolt Holt Diameter (mm) - Large Side | 31.75 |
| Flange 1 Drill Pattern (Large Side) | ASME Class 125/150 A |
| Flange 1 Inner Diameter (Inch) - Large Side | 20.000 |
| Flange 1 Inner Diameter (mm) - Large Side | 508.00 |
| Flange 1 Multiple Drill Patterns | ASME Class 125/150 A |
| Flange 1 Option (Large Side) | Standard Bolt Holes |
| Flange 1 Outside Diameter (Inch) - Large Side | 27.500 |
| Flange 1 Outside Diameter (mm) - Large Side | 698.50 |
| Flange 2 Bolt Circle Diameter (Inch) - Small Side | 25.000 |
| Flange 2 Bolt Circle Diameter (mm) - Small Side | 635.00 |
| Flange 2 Bolt Hole Diameter (Inch) - Small Side | 1.250 |
| Flange 2 Bolt Hole Diameter (mm) - Small Side | 31.75 |
| Flange 2 Bolt Hole Quantity | 20 |
| Flange 2 Drill Pattern (Small Side) | ASME Class 125/150 A |
| Flange 2 Flange Standard and Class | ASME Class 125/150 A |
| Flange 2 Inner Diameter (Inch) - Small Side | 20.000 |
| Flange 2 Inner Diameter (mm) - Small Side | 508.00 |
| Flange 2 Options (Small Side) | Standard Bolt Holes |
| Flange 2 Outside Diameter (Inch) - Small Side | 27.500 |
| Flange 2 Outside Diameter (mm) - Small Side | 698.50 |
| Flange 2 Unique Drill Pattern | No |
| Joint Flange Material | Rubber Flanges |
| Joint Type | Straight |
| Lateral Movement (Inch) | 0.500 |
| Lateral Movement (mm) | 12.70 |
| Lateral Offset | No |
| Lateral Offset Distance (Inch) | 0.000 |
| Lateral Offset Distance (mm) | 0.00 |
| Max Angular Face to Face Distance (inch) | 0.000 |
| Max Angular Face to Face Distance (mm) | 0.00 |
| Max Temperature (C) | 120 |
| Max Temperature (F) | 250 |
| Min Angular Face to Face Distance (inch) | 0.000 |
| Min Angular Face to Face Distance (mm) | 0.00 |
| Number of Arches | 1 |
| Oversized Arches | No |
| Pipe Size | 20.000 in |
| Pipe Standard and Class | ASME Class 125/150 A |
| Pressure Max (bar) | 7.6 |
| Pressure Max (psi) | 110 |
| Pressure Style | HP |
| Primary Dimensional Unit of Measure | Imperial |
| Shipping Weight | 60 lbs |
| Sort Priority | 50 |
| Style/Model | Style 204HP |
| Tube Color | Black |
| Tube Material | EPDM |
| Tube Material Abbreviation | EPDM |
| Unique Drill Pattern | No |
| Vacuum (in.Hg) | 29.9 |
| Vacuum (mm.Hg) | 750 |
Frequently Asked Questions
How do I get pricing for 97125-2030?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 97125-2030?
97125-2030 is a Garlock part. KKM Solutions sources Garlock components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 97125-2030?
Key specifications include Angular: No; Body material: Polyester; Body Material Abbreviation: PL; Brand: Garlock®. The full specification table on this page lists every published attribute for this part.
How quickly can 97125-2030 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
