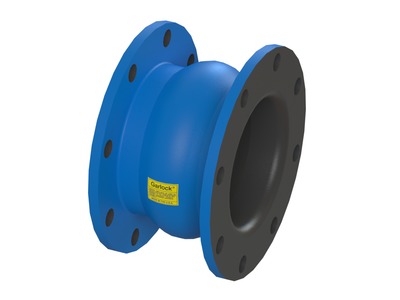

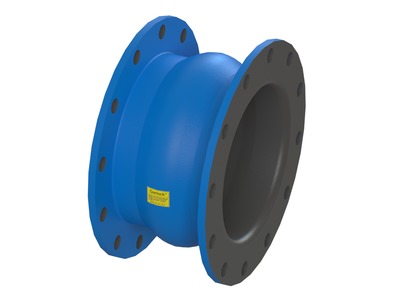

Garlock EZ-FLO® Style 206 Pipe Expansion Joint
EZ-FLO® Style 206 Pipe Expansion Joint, EPDM Tube Material, Chlorobutyl Cover Material, Nylon Tire Cord Body Material, 5.000 inch Inside Diameter, 6.000 inch Face-to-Face Length, 1 Hollow Arch, Holes for Following Flange Standard(s): ASME Class 125/150 A; Blue Paint
| Angular | No |
|---|---|
| Body material | Nylon Tire Cord |
| Brand | Garlock® |
| Compliances | ABS Approved |
| Compliances/Standards | ABS Approved |
| Compression Movement (Inch) | 0.750 |
| Compression Movement (mm) | 19.05 |
| Cover Color Coating | Blue Paint |
| Cover material | Chlorobutyl |
| Cover Material Abbreviation | CIIR |
| Elongation Movement (Inch) | 0.375 |
| Elongation Movement (mm) | 9.52 |
| Face to Face Length (Inch) | 6.000 |
| Face to Face Length (mm) | 152.40 |
| Filled Arches | Hollow |
| Flange 1 Bolt Circle Diameter (Inch) - Large Side | 8.500 |
| Flange 1 Bolt Circle Diameter (mm) - Large Side | 215.90 |
| Flange 1 Bolt Hole Diameter (Inch) - Large Side | 0.875 |
| Flange 1 Bolt Hole Quantity - Large Side | 8 |
| Flange 1 Bolt Holt Diameter (mm) - Large Side | 22.23 |
| Flange 1 Drill Pattern (Large Side) | ASME Class 125/150 A |
| Flange 1 Inner Diameter (Inch) - Large Side | 5.000 |
| Flange 1 Inner Diameter (mm) - Large Side | 127.00 |
| Flange 1 Multiple Drill Patterns | ASME Class 125/150 A |
| Flange 1 Option (Large Side) | Standard Bolt Holes |
| Flange 1 Outside Diameter (Inch) - Large Side | 10.000 |
| Flange 1 Outside Diameter (mm) - Large Side | 254.00 |
| Flange 2 Bolt Circle Diameter (Inch) - Small Side | 8.500 |
| Flange 2 Bolt Circle Diameter (mm) - Small Side | 215.90 |
| Flange 2 Bolt Hole Diameter (Inch) - Small Side | 0.875 |
| Flange 2 Bolt Hole Diameter (mm) - Small Side | 22.23 |
| Flange 2 Bolt Hole Quantity | 8 |
| Flange 2 Drill Pattern (Small Side) | ASME Class 125/150 A |
| Flange 2 Flange Standard and Class | ASME Class 125/150 A |
| Flange 2 Inner Diameter (Inch) - Small Side | 5.000 |
| Flange 2 Inner Diameter (mm) - Small Side | 127.00 |
| Flange 2 Options (Small Side) | Standard Bolt Holes |
| Flange 2 Outside Diameter (Inch) - Small Side | 10.000 |
| Flange 2 Outside Diameter (mm) - Small Side | 254.00 |
| Flange 2 Unique Drill Pattern | No |
| Joint Flange Material | Rubber Flanges |
| Joint Type | Straight |
| Lateral Movement (Inch) | 0.500 |
| Lateral Movement (mm) | 12.70 |
| Lateral Offset | No |
| Lateral Offset Distance (Inch) | 0.000 |
| Lateral Offset Distance (mm) | 0.00 |
| Max Angular Face to Face Distance (inch) | 0.000 |
| Max Angular Face to Face Distance (mm) | 0.00 |
| Max Temperature (C) | 120 |
| Max Temperature (F) | 250 |
| Min Angular Face to Face Distance (inch) | 0.000 |
| Min Angular Face to Face Distance (mm) | 0.00 |
| Number of Arches | 1 |
| Oversized Arches | No |
| Pipe Size | 5.000 in |
| Pipe Standard and Class | ASME Class 125/150 A |
| Pressure Max (bar) | 17.2 |
| Pressure Max (psi) | 250 |
| Pressure Style | Standard |
| Primary Dimensional Unit of Measure | Imperial |
| Shipping Weight | 7.5 lbs |
| Sort Priority | 50 |
| Style/Model | Style 206 |
| Tube Color | Black |
| Tube Material | EPDM |
| Tube Material Abbreviation | EPDM |
| Unique Drill Pattern | No |
| Vacuum (in.Hg) | 26 |
| Vacuum (mm.Hg) | 650 |
