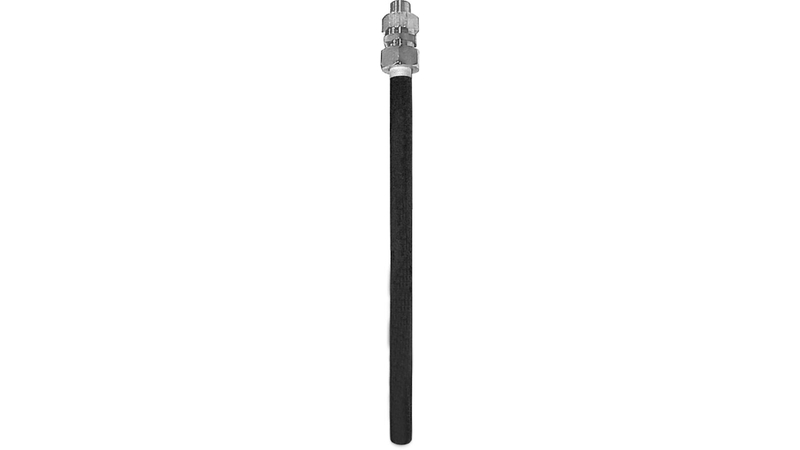

Endress+Hauser iTHERM FlameLine TWF16High temperature thermowell
Endress+Hauser TWF16 - Temperature - Temperature range: -200...1700 °C (-328...3.092 °F); Measuring principle: Fabricated Thermowell; Process Connection: compression fitting: G1/2" G3/4" G1" G11/4" G11/2" adjustable Flange.
Endress+Hauser TWF16 is a Temperature catalog item from Endress+Hauser. The manufacturer's published data for this part number specifies Temperature range: -200...1700 °C (-328...3.092 °F) and Measuring principle: Fabricated Thermowell.
metric style Fabricated from segments welded protection tube ceramic protection tube process connection as compression fitting Replacement part for TAF16
The specification set recorded for this part number covers Process Connection: compression fitting: G1/2" G3/4" G1" G11/4" G11/2" adjustable Flange; Max. immersion length on request: 4.525 mm (178,15"); Tip shape: straight; Max. process pressure (static): 1 bar (15 psi); Head connection: M24 x 1,5 groove for DIN A Head; Maximum standard immersion length: 2.200 mm (86,61"). The complete technical table is shown in the Specifications tab on this page.
| Characteristic / Application | metric style Fabricated from segments welded protection tube ceramic protection tube process connection as compression fitting Replacement part for TAF16 |
|---|---|
| Head connection | M24 x 1,5 groove for DIN A Head |
| Max. immersion length on request | 4.525 mm (178,15") |
| Max. process pressure (static) | 1 bar (15 psi) |
| Maximum standard immersion length | 2.200 mm (86,61") |
| Measuring principle | Fabricated Thermowell |
| Medium contact material | 1.4401 (316) 1.4749 (~446) 1.4841 (310) Alloy 600 (2.4816) Alloy 601 (2.4851) Incoloy 800HT (1.4959) Kanthal AF Kanthal Super NiCo Siliciumnitrid(SiN) |
| Process Connection | compression fitting: G1/2" G3/4" G1" G11/4" G11/2" adjustable Flange |
| Temperature range | -200...1700 °C (-328...3.092 °F) |
| Thermowell root diameter | 14,0 mm (0,55") 15,0 mm (0,59") 17,2 mm (0,68") 18,0 mm (0,71") 21,3 mm (0,84") 22,0 mm (0,87") 26,7 mm (1,05") 28,0 mm (1,10") |
| Tip shape | straight |
Frequently Asked Questions
How do I get pricing for TWF16?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the TWF16?
TWF16 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of TWF16?
Key specifications include Characteristic / Application: metric style Fabricated from segments welded protection tube ceramic protection tube process connection as compression fitting Replacement part for TAF16; Head connection: M24 x 1,5 groove for DIN A Head; Max. immersion length on request: 4.525 mm (178,15"); Max. process pressure (static): 1 bar (15 psi). The full specification table on this page lists every published attribute for this part.
How quickly can TWF16 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

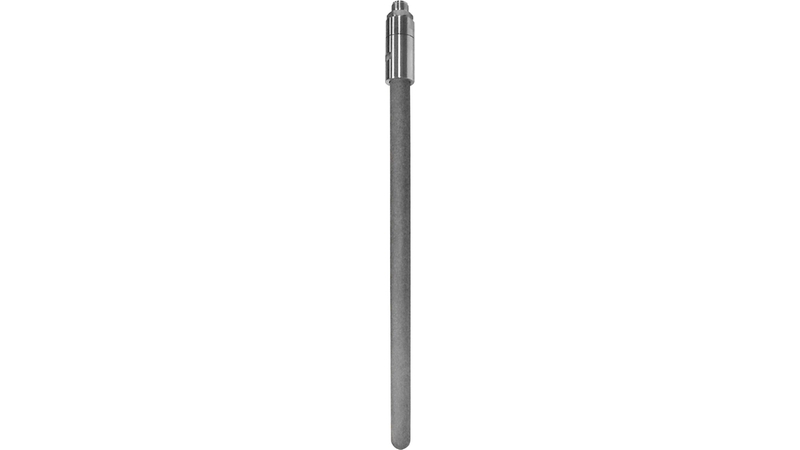

Endress+Hauser Endress+Hauser iTHERM FlameLine TWF11High temperature thermowell
