Endress+Hauser Thermowell TW12
| Characteristic / Application | metric style DIN 43772 Form 2/3 process connection as compression fitting with neck |
|---|---|
| Head connection | external thread: M24 x 1.5 1/2" NPT |
| Max. immersion length on request | 10.000 mm (393,7") |
| Max. process pressure (static) | 50 bar (725 psi) |
| Max. process pressure at 400 °C | depends on process connection |
| Maximum standard immersion length | 4.000 mm (157,48") |
| Medium contact material | 1.4404 (316L) 1.4571 (316Ti) 1.4843 (310) 2.4816 (Alloy 600) 2.4819 (Alloy C276) |
| Process Connection | compression fitting: G1/2" G3/4" G1" 1/2" NPT R1/2" R3/4" R1" M20 x 1.5 |
| Temperature range | -200...1.100 °C (-328...2.012 °F) |
| Thermowell root diameter | 9 mm (0,35") 11 mm (0,43") 12 mm (0,47") 14 mm (0,55") 15 mm (0,59") |
| Tip shape | straight reduced tapered |
| Wetted part finishing (Ra) | < 0.8 ìm (31.50 ìin) |
Frequently Asked Questions
How do I get pricing for TW12?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the TW12?
TW12 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of TW12?
Key specifications include Characteristic / Application: metric style DIN 43772 Form 2/3 process connection as compression fitting with neck; Head connection: external thread: M24 x 1.5 1/2" NPT; Max. immersion length on request: 10.000 mm (393,7"); Max. process pressure (static): 50 bar (725 psi). The full specification table on this page lists every published attribute for this part.
How quickly can TW12 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Endress+Hauser Endress+Hauser Thermowell TW11

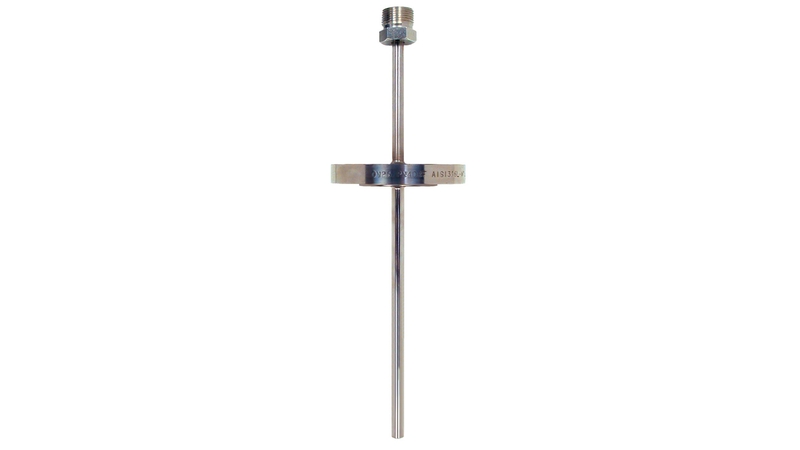

Endress+Hauser Endress+Hauser Thermowell TW13
Endress+Hauser Endress+Hauser Thermowell TW10

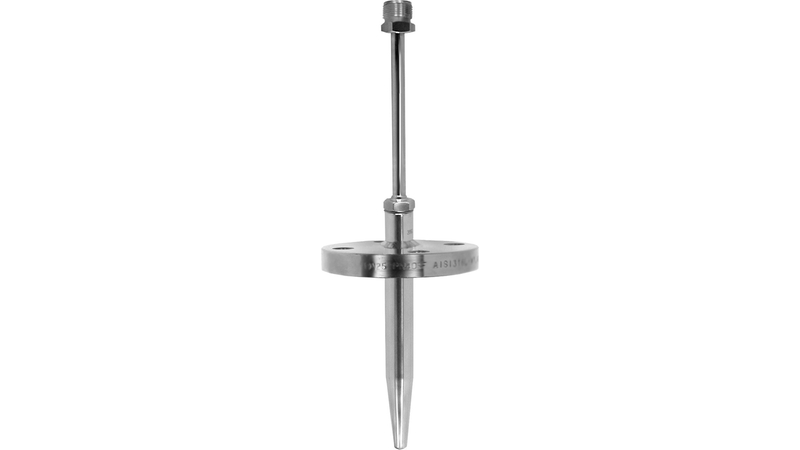

Endress+Hauser Endress+Hauser TW15Barstock thermowell

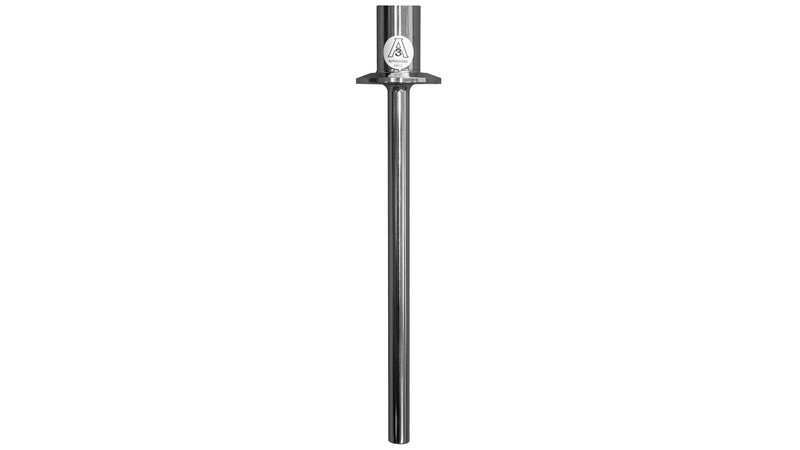

Endress+Hauser Endress+Hauser U.S. Style thermowell TU67
