Endress+Hauser iTHERM MultiSens Slim TMS21Multipoint thermometer
Endress+Hauser TMS21 - Temperature - Accuracy: class 2 acc. to IEC 60584 ASTM E230 and ANSI MC 96.1; Response time: t50 = 3 s t90 = 9 s; Measuring principle: Thermocouple.
The Endress+Hauser TMS21 is part of the Temperature range in our industrial catalog. The manufacturer's published data for this part number specifies Accuracy: class 2 acc. to IEC 60584 ASTM E230 and ANSI MC 96.1 and Response time: t50 = 3 s t90 = 9 s.
Compression fitting threaded 1/4" Compression fitting threaded 1/2" Compression fitting threaded 3/4" Compression fitting threaded 1" Flange as an accessory
Key manufacturer data on file for this item includes Measuring principle: Thermocouple; Certification: SIL (transmitter only); Thermowell / protection tube: without (not intended to use with thermowell); Insert / probe: mineral insulated (MI), flexible; Outer diameter protection tube / Insert: 6,0 mm (0,24'') 3,2 mm (0,126") 8,0 mm (0,31") 9,5 mm (0,37") 6,35 mm (1/4"); Max. immersion length on request: up to 13.000,00 mm (511,81''); Tip shape: straight; Max. process pressure (static): at 20 °C: 90 bar (1305 psi); Integration head transmitter: yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS); Ex - approvals: ATEX Ex ia IECEx Ex ia IECEx ATEX Ex ia NEPSI Ex ia UKCA Ex ia EAC Ex ia UL CSA. See the Specifications tab on this page for the full technical table.
| Accuracy | class 2 acc. to IEC 60584 ASTM E230 and ANSI MC 96.1 |
|---|---|
| Certification | SIL (transmitter only) |
| Characteristic / Application | metric style imperial style easy-to-use suitable for hazardous areas compression fitting as process connection without neck light chemical processes |
| Ex - approvals | ATEX Ex ia IECEx Ex ia IECEx ATEX Ex ia NEPSI Ex ia UKCA Ex ia EAC Ex ia UL CSA |
| Insert / probe | mineral insulated (MI), flexible |
| Integration head transmitter | yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS) |
| Material protection tube/ thermowell | 1.4401 (316) 1.4435 (316L) 1.4571 (316Ti) 1.4541 (321) 1.4550 (347) Alloy 600 (2.4816) |
| Max. immersion length on request | up to 13.000,00 mm (511,81'') |
| Max. process pressure (static) | at 20 °C: 90 bar (1305 psi) |
| Measuring principle | Thermocouple |
| Operating temperature range | Type K: max. 920 °C (max. 1.688 °F) Type J: max. 440 °C (max. 824 °F) Type N: max. 920 °C (max. 1.688 °F) Type E: max. 510 °C (max. 950 °F) |
| Outer diameter protection tube / Insert | 6,0 mm (0,24'') 3,2 mm (0,126") 8,0 mm (0,31") 9,5 mm (0,37") 6,35 mm (1/4") |
| Process Connection | Compression fitting threaded 1/4" Compression fitting threaded 1/2" Compression fitting threaded 3/4" Compression fitting threaded 1" Flange as an accessory |
| Response time | t50 = 3 s t90 = 9 s |
| Thermowell / protection tube | without (not intended to use with thermowell) |
| Tip shape | straight |
Frequently Asked Questions
How do I get pricing for TMS21?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the TMS21?
TMS21 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of TMS21?
Key specifications include Accuracy: class 2 acc. to IEC 60584 ASTM E230 and ANSI MC 96.1; Certification: SIL (transmitter only); Characteristic / Application: metric style imperial style easy-to-use suitable for hazardous areas compression fitting as process connection without neck light chemical processes; Ex - approvals: ATEX Ex ia IECEx Ex ia IECEx ATEX Ex ia NEPSI Ex ia UKCA Ex ia EAC Ex ia UL CSA. The full specification table on this page lists every published attribute for this part.
How quickly can TMS21 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Endress+Hauser Endress+Hauser iTHERM MultiSens Bundle TMS31Multipoint thermometer
Endress+Hauser Endress+Hauser iTHERM MultiSens Linear TMS12 Multipoint thermometer
Endress+Hauser Endress+Hauser iTEMP PCP TMT111

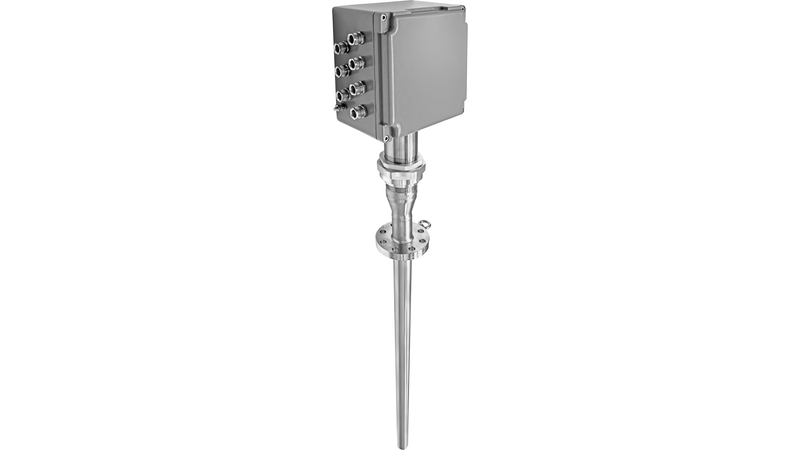

Endress+Hauser Endress+Hauser iTHERM MultiSens Linear TMS11 Multipoint thermometer
