Endress+Hauser iTHERM ModuLine TM101Industrial modular thermometer
Endress+Hauser TM101 - Temperature - Response time: t90 around 17 s depending on configuration; Measuring principle: Resistance Temperature Detector; Thermowell / protection tube: without, direct process contact.
In our catalog, the TM101 from Endress+Hauser is listed under the Temperature category. The manufacturer's published data for this part number specifies Response time: t90 around 17 s depending on configuration and Measuring principle: Resistance Temperature Detector.
Class A acc. to IEC 60751 Class B acc. to IEC 60751 Class standard acc. to ASTM E230 Class 2 acc. to IEC 60584-2
Published specifications for this part include Thermowell / protection tube: without, direct process contact; Insert / probe: Basis Sensortechnologie; Outer diameter protection tube / Insert: Insert: 6,0 mm; Max. immersion length on request: up to 1.000,0 mm (39''); Material protection tube/ thermowell: Insert Material: 316L (1.4404) Alloy 600 (2.4816); Tip shape: straight; Max. process pressure (static): depending on the configuration; Integration head transmitter: yes (4 … 20 mA; HART). See the Specifications tab on this page for the full technical table.
| Accuracy | Class A acc. to IEC 60751 Class B acc. to IEC 60751 Class standard acc. to ASTM E230 Class 2 acc. to IEC 60584-2 |
|---|---|
| Characteristic / Application | Basic technologie metric style universal range of application direct process contact |
| Insert / probe | Basis Sensortechnologie |
| Integration head transmitter | yes (4 … 20 mA; HART) |
| Material protection tube/ thermowell | Insert Material: 316L (1.4404) Alloy 600 (2.4816) |
| Max. immersion length on request | up to 1.000,0 mm (39'') |
| Max. process pressure (static) | depending on the configuration |
| Measuring principle | Resistance Temperature Detector |
| Operating temperature range | Basic PT100 TF: -50 °C …200 °C (-58 °F …392 °F) Typ K: max. 1.100 °C (max. 2.012 °F) |
| Outer diameter protection tube / Insert | Insert: 6,0 mm |
| Process Connection | Thread: G1/2", G1/4" NPT1/2" M18x1.5, M20x1.5 Cap-nut: G1/2", G3/4" Compression fitting, also spring load: NPT1/2", G1/2" |
| Response time | t90 around 17 s depending on configuration |
| Thermowell / protection tube | without, direct process contact |
| Tip shape | straight |
Frequently Asked Questions
How do I get pricing for TM101?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the TM101?
TM101 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of TM101?
Key specifications include Accuracy: Class A acc. to IEC 60751 Class B acc. to IEC 60751 Class standard acc. to ASTM E230 Class 2 acc. to IEC 60584-2; Characteristic / Application: Basic technologie metric style universal range of application direct process contact; Insert / probe: Basis Sensortechnologie; Integration head transmitter: yes (4 … 20 mA; HART). The full specification table on this page lists every published attribute for this part.
How quickly can TM101 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

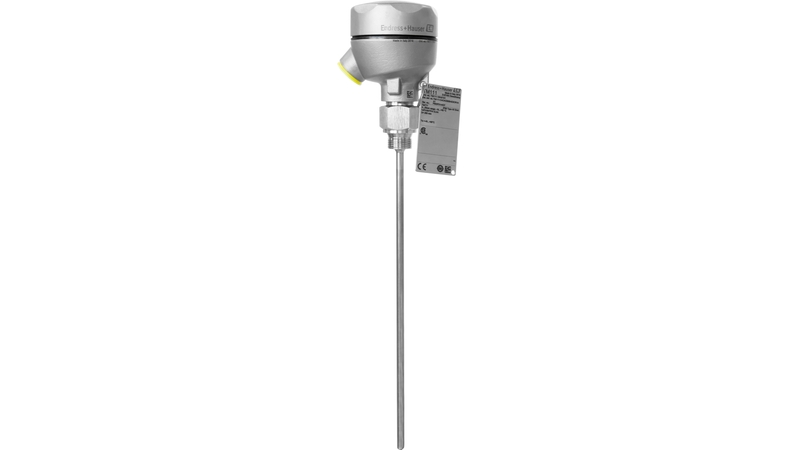

Endress+Hauser Endress+Hauser iTHERM ModuLine TM111Industrial modular thermometer
Endress+Hauser Endress+Hauser Thermowell S.A.Style TLSW1

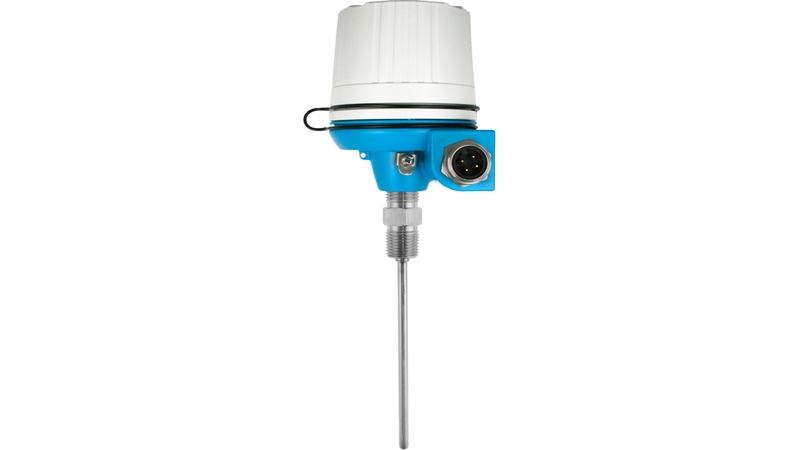

Endress+Hauser Endress+Hauser iTHERM ModuLine TM112Industrial modular thermometer
