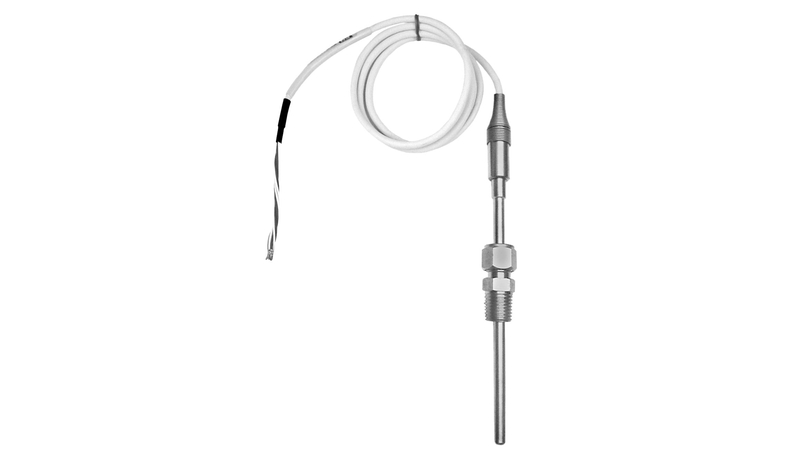

Endress+Hauser RTD-Assembly S.A. Style TLSR2
Endress+Hauser TLSR2 - Temperature - Accuracy: class A according to IEC 60751 Band 5 (1/10 DIN); Response time: depending on configuration; Certification: EN10204 3.1 Material traceability.
Endress+Hauser TLSR2 is a Temperature catalog item from Endress+Hauser. The manufacturer's published data for this part number specifies Accuracy: class A according to IEC 60751 Band 5 (1/10 DIN) and Response time: depending on configuration.
Fixed thread: NPT 1/4" NPT 1/2" G1/4" G1/2" Adjustable compression fitting: NPT 1/8" NPT 1/4" NPT 3/8" NPT 1/2" G1/8" G1/4" G3/8" G1/2"
Published specifications for this part include Certification: EN10204 3.1 Material traceability; Thermowell / protection tube: to use with or without thermowell (can be ordered separately); Insert / probe: mineral insulated (MI), flexible; Max. immersion length on request: up to 2.000 mm (78,74''); Material protection tube/ thermowell: 1.4401 (316); Optional coating: Not defined; Tip shape: rounded flat; Operating temperature range: PT 100: -200 ...600 °C (-328 ...1.112 °F); Max. process pressure (static): at 20 °C: 10 bar (150 psi) without thermowell; Integration head transmitter: no. The complete technical table is shown in the Specifications tab on this page.
| Accuracy | class A according to IEC 60751 Band 5 (1/10 DIN) |
|---|---|
| Certification | EN10204 3.1 Material traceability |
| Characteristic / Application | S.A. Style Cable sensor universal range of application usable with or without a thermowell |
| Insert / probe | mineral insulated (MI), flexible |
| Integration head transmitter | no |
| Material protection tube/ thermowell | 1.4401 (316) |
| Max. immersion length on request | up to 2.000 mm (78,74'') |
| Max. process pressure (static) | at 20 °C: 10 bar (150 psi) without thermowell |
| Operating temperature range | PT 100: -200 ...600 °C (-328 ...1.112 °F) |
| Optional coating | Not defined |
| Process Connection | Fixed thread: NPT 1/4" NPT 1/2" G1/4" G1/2" Adjustable compression fitting: NPT 1/8" NPT 1/4" NPT 3/8" NPT 1/2" G1/8" G1/4" G3/8" G1/2" |
| Response time | depending on configuration |
| Thermowell / protection tube | to use with or without thermowell (can be ordered separately) |
| Tip shape | rounded flat |
Frequently Asked Questions
How do I get pricing for TLSR2?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the TLSR2?
TLSR2 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of TLSR2?
Key specifications include Accuracy: class A according to IEC 60751 Band 5 (1/10 DIN); Certification: EN10204 3.1 Material traceability; Characteristic / Application: S.A. Style Cable sensor universal range of application usable with or without a thermowell; Insert / probe: mineral insulated (MI), flexible. The full specification table on this page lists every published attribute for this part.
How quickly can TLSR2 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

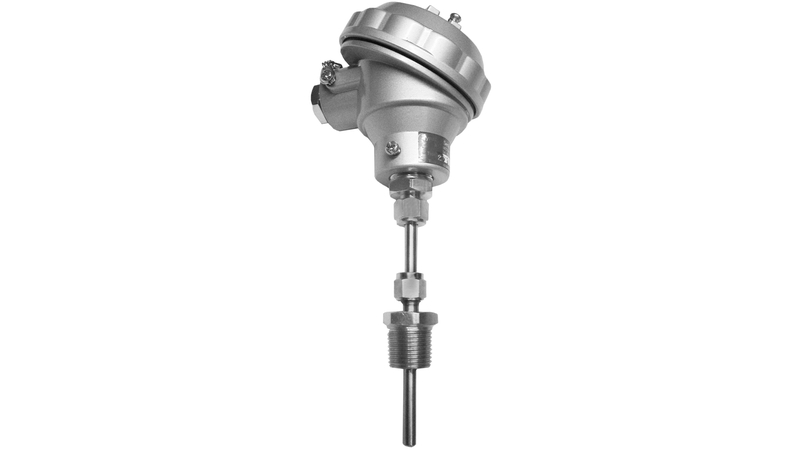

Endress+Hauser Endress+Hauser RTD-Assembly S.A. Style TLSR1

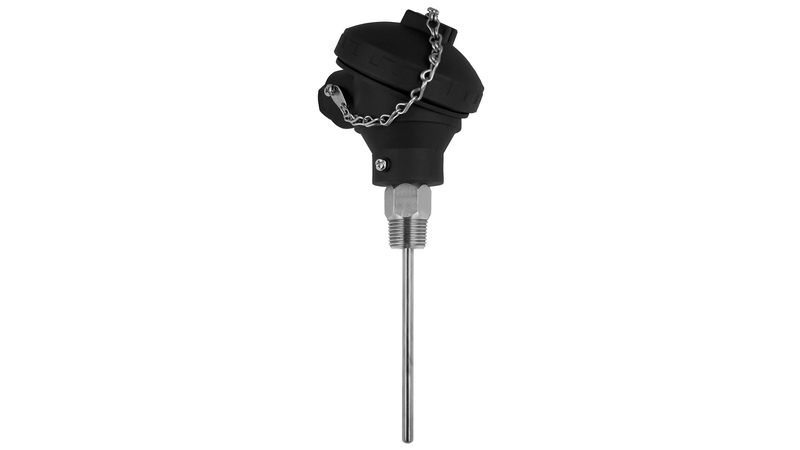

Endress+Hauser Endress+Hauser RTD-Assembly S.A. Style TLSR5
