Endress+Hauser TH14Modular RTD thermometer, US style
Endress+Hauser TH14 - Temperature - Accuracy: class AA acc. to IEC 60751 class A acc. to IEC 60751 class B acc. to IEC 60751; Response time: depending on configuration; Measuring principle: Resistance Temperature Detector.
Endress+Hauser TH14 is a Temperature catalog item from Endress+Hauser. The manufacturer's published data for this part number specifies Accuracy: class AA acc. to IEC 60751 class A acc. to IEC 60751 class B acc. to IEC 60751 and Response time: depending on configuration.
flange: ASME 1" 150 RF (B16.5) ASME 1" 300 RF (B16.5) ASME 1" 600 RF (B16.5) ASME 1" 900/1500 RF (B16.5) ASME 1.5" 150 RF (B16.5) ASME 1.5" 300 RF (B16.5) ASME 1.5" 600 RF (B16.5) ASME 1.5" 900/1500 RF (B16.5) ASME 2" 150 RF (B16.5) ASME 2" 300 RF (B16.5) ASME 2" 600 RF (B16.5) ASME 2" 900/1500 RF (B16.5) ASME 3" 150 RF (B16.5) ASME 3" 300 RF (B16.5) ASME 3" 600 RF (B16.5) ASME 3" 900/1500 RF (B16.5)
Key manufacturer data on file for this item includes Measuring principle: Resistance Temperature Detector; Certification: SIL (transmitter only); Thermowell / protection tube: bar stock (drilled); Insert / probe: mineral insulated (MI), flexible PTFE-insulated, rigid; Outer diameter protection tube / Insert: 3/4'' (19,05 mm) 17/16'' (26,99 mm) 22,23 mm ... 26,99 mm (0,88'' ... 1,06''); Max. immersion length on request: up to 24" (609 mm) others on request; Material protection tube/ thermowell: 316/316L others on request; Optional coating: available on request; Tip shape: straight tapered; Surface roughness Ra: 32 μin (0.80 μm); Max. process pressure (static): at 20 °C: 500 bar (7.252 psi) depends on configuration; Integration head transmitter: yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS). See the Specifications tab on this page for the full technical table.
| Accuracy | class AA acc. to IEC 60751 class A acc. to IEC 60751 class B acc. to IEC 60751 |
|---|---|
| Certification | SIL (transmitter only) |
| Characteristic / Application | US style modular temperature assembly flanged process connection with extension incl. thermowell |
| Ex - approvals | transmitter only FM IS CSA IS FM/CSA IS |
| Insert / probe | mineral insulated (MI), flexible PTFE-insulated, rigid |
| Integration head transmitter | yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS) |
| Material protection tube/ thermowell | 316/316L others on request |
| Max. immersion length on request | up to 24" (609 mm) others on request |
| Max. process pressure (static) | at 20 °C: 500 bar (7.252 psi) depends on configuration |
| Measuring principle | Resistance Temperature Detector |
| Operating temperature range | PT100 WW: -200 °C … 600 °C (-328 °F … 1.112 °F) iTHERM StrongSens: -50 °C … 500 °C (-58 °F … 932 °F) PT100 TF: -50 °C … 200 °C (-58 °F … 392 °F) |
| Optional coating | available on request |
| Outer diameter protection tube / Insert | 3/4'' (19,05 mm) 17/16'' (26,99 mm) 22,23 mm ... 26,99 mm (0,88'' ... 1,06'') |
| Process Connection | flange: ASME 1" 150 RF (B16.5) ASME 1" 300 RF (B16.5) ASME 1" 600 RF (B16.5) ASME 1" 900/1500 RF (B16.5) ASME 1.5" 150 RF (B16.5) ASME 1.5" 300 RF (B16.5) ASME 1.5" 600 RF (B16.5) ASME 1.5" 900/1500 RF (B16.5) ASME 2" 150 RF (B16.5) ASME 2" 300 RF (B16.5) ASME 2" 600 RF (B16.5) ASME 2" 900/1500 RF (B16.5) ASME 3" 150 RF (B16.5) ASME 3" 300 RF (B16.5) ASME 3" 600 RF (B16.5) ASME 3" 900/1500 RF (B16.5) |
| Response time | depending on configuration |
| Surface roughness Ra | 32 μin (0.80 μm) |
| Thermowell / protection tube | bar stock (drilled) |
| Tip shape | straight tapered |
Frequently Asked Questions
How do I get pricing for TH14?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the TH14?
TH14 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of TH14?
Key specifications include Accuracy: class AA acc. to IEC 60751 class A acc. to IEC 60751 class B acc. to IEC 60751; Certification: SIL (transmitter only); Characteristic / Application: US style modular temperature assembly flanged process connection with extension incl. thermowell; Ex - approvals: transmitter only FM IS CSA IS FM/CSA IS. The full specification table on this page lists every published attribute for this part.
How quickly can TH14 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Endress+Hauser Endress+Hauser TH13Modular RTD thermometer, US style

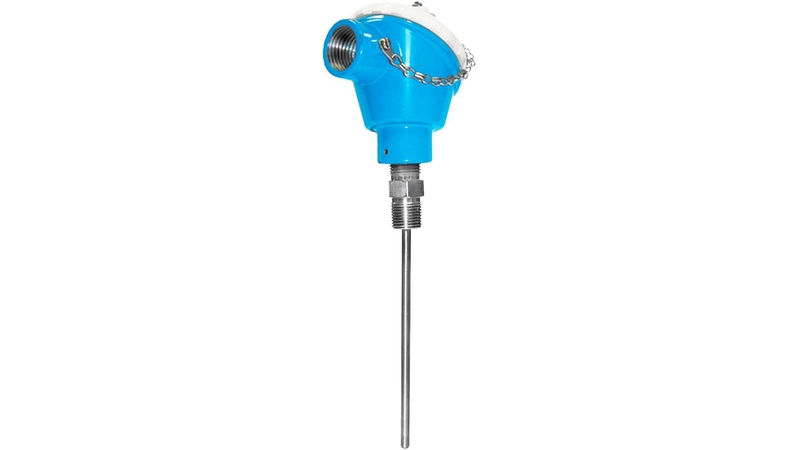

Endress+Hauser Endress+Hauser TH15Modular RTD thermometer, US style
Endress+Hauser Endress+Hauser iTHERM CableLine TH12Cable probe

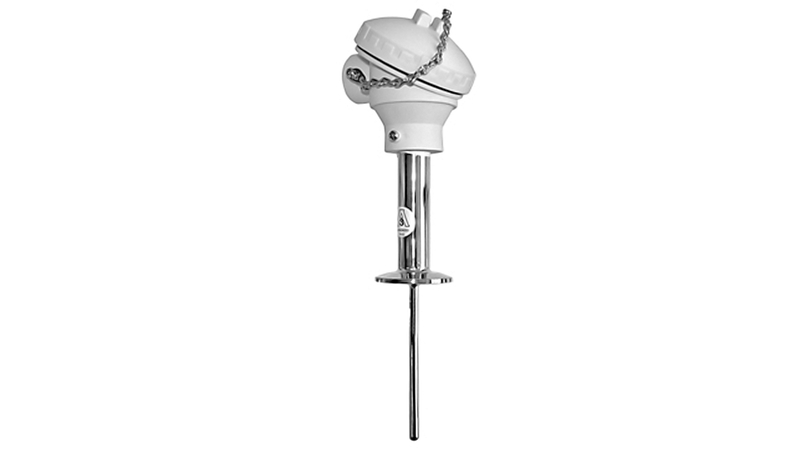

Endress+Hauser Endress+Hauser U.S. Style RTD-Assembly TH17
