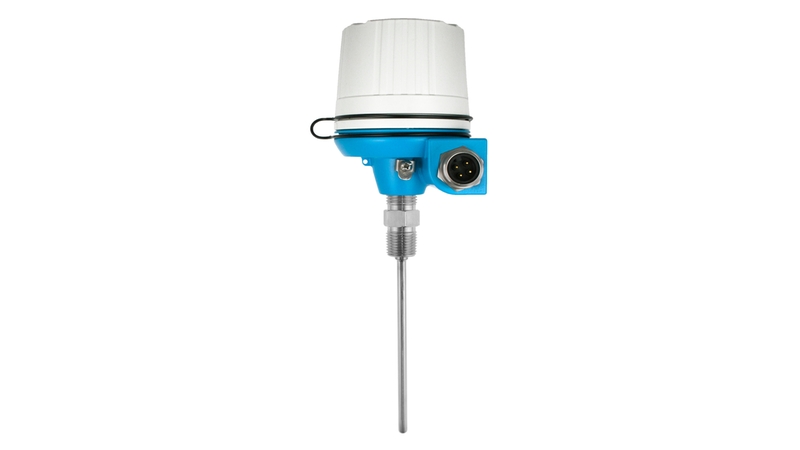

Endress+Hauser TH11Modular RTD thermometer, US style
Endress+Hauser TH11 - Temperature - Accuracy: class A acc. to IEC 60751 class B acc. to IEC 60751; Response time: 63% rt = 2,0 s; Measuring principle: Resistance Temperature Detector.
In our catalog, the TH11 from Endress+Hauser is listed under the Temperature category. The manufacturer's published data for this part number specifies Accuracy: class A acc. to IEC 60751 class B acc. to IEC 60751 and Response time: 63% rt = 2,0 s.
US style modular temperature assembly threaded process connection direct immersion style
Key manufacturer data on file for this item includes Measuring principle: Resistance Temperature Detector; Certification: SIL (transmitter only); Process Connection: male thread: G1/2" NPT1/2" compression fitting: NPT1/8" NPT1/4"; Thermowell / protection tube: without (not intended to be used with thermowell); Insert / probe: mineral insulated (MI), flexible PTFE-insulated, rigid; Outer diameter protection tube / Insert: 1/8'' (3,18 mm) 3/16''(4,76 mm) 1/4'' (6,35 mm) 3/8'' (9,53 mm); Max. immersion length on request: up to 96" (2439 mm) others on request; Material protection tube/ thermowell: Sensor sheath 316/316L; Tip shape: straight reduced; Surface roughness Ra: Not defined; Operating temperature range: PT 100: -200 °C ...600 °C (-328 °F ...1.112 °F); Max. process pressure (static): at 20°C: 250 bar (3.626 psi) depends on configuration. The complete technical table is shown in the Specifications tab on this page.
| Accuracy | class A acc. to IEC 60751 class B acc. to IEC 60751 |
|---|---|
| Certification | SIL (transmitter only) |
| Characteristic / Application | US style modular temperature assembly threaded process connection direct immersion style |
| Ex - approvals | transmitter only FM IS CSA IS FM/CSA IS |
| Insert / probe | mineral insulated (MI), flexible PTFE-insulated, rigid |
| Integration head transmitter | yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS) |
| Material protection tube/ thermowell | Sensor sheath 316/316L |
| Max. immersion length on request | up to 96" (2439 mm) others on request |
| Max. process pressure (static) | at 20°C: 250 bar (3.626 psi) depends on configuration |
| Measuring principle | Resistance Temperature Detector |
| Operating temperature range | PT 100: -200 °C ...600 °C (-328 °F ...1.112 °F) |
| Outer diameter protection tube / Insert | 1/8'' (3,18 mm) 3/16''(4,76 mm) 1/4'' (6,35 mm) 3/8'' (9,53 mm) |
| Process Connection | male thread: G1/2" NPT1/2" compression fitting: NPT1/8" NPT1/4" |
| Response time | 63% rt = 2,0 s |
| Surface roughness Ra | Not defined |
| Thermowell / protection tube | without (not intended to be used with thermowell) |
| Tip shape | straight reduced |
Frequently Asked Questions
How do I get pricing for TH11?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the TH11?
TH11 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of TH11?
Key specifications include Accuracy: class A acc. to IEC 60751 class B acc. to IEC 60751; Certification: SIL (transmitter only); Characteristic / Application: US style modular temperature assembly threaded process connection direct immersion style; Ex - approvals: transmitter only FM IS CSA IS FM/CSA IS. The full specification table on this page lists every published attribute for this part.
How quickly can TH11 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

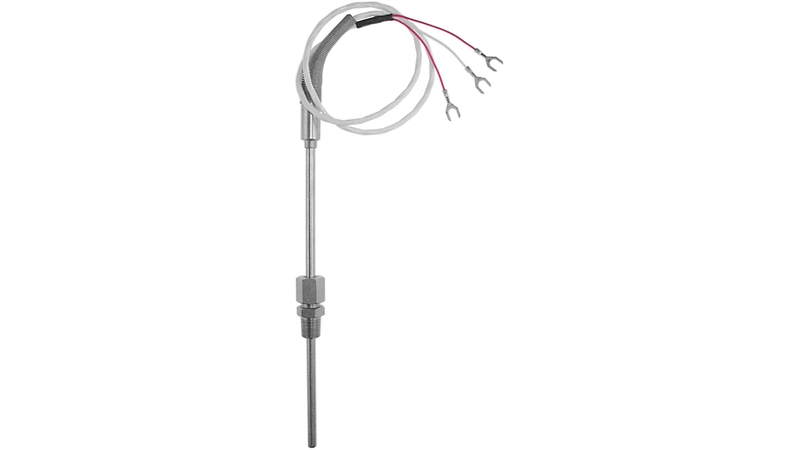

Endress+Hauser Endress+Hauser iTHERM CableLine TH12Cable probe

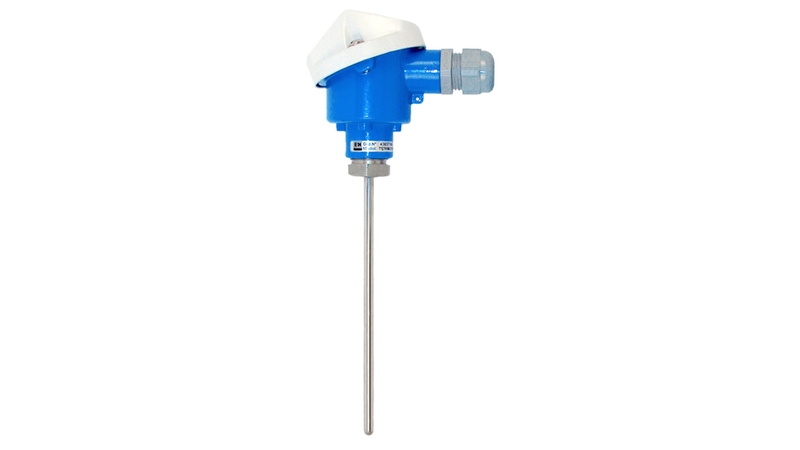

Endress+Hauser Endress+Hauser Thermocouple TEC420

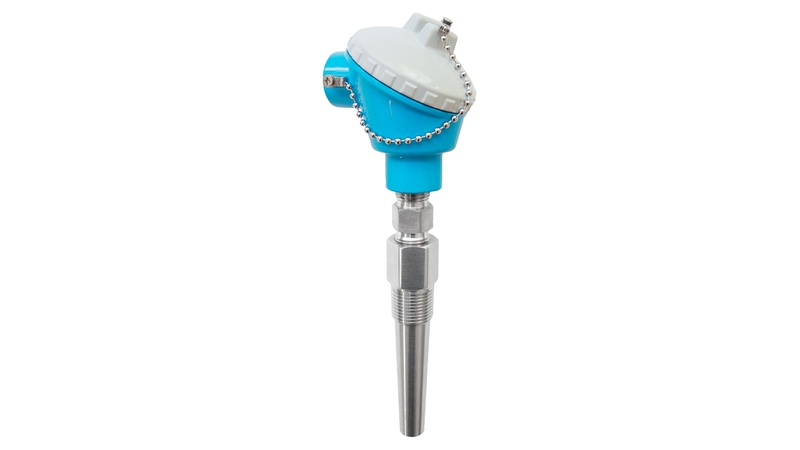

Endress+Hauser Endress+Hauser TH13Modular RTD thermometer, US style
Endress+Hauser Endress+Hauser Thermocouple TC88

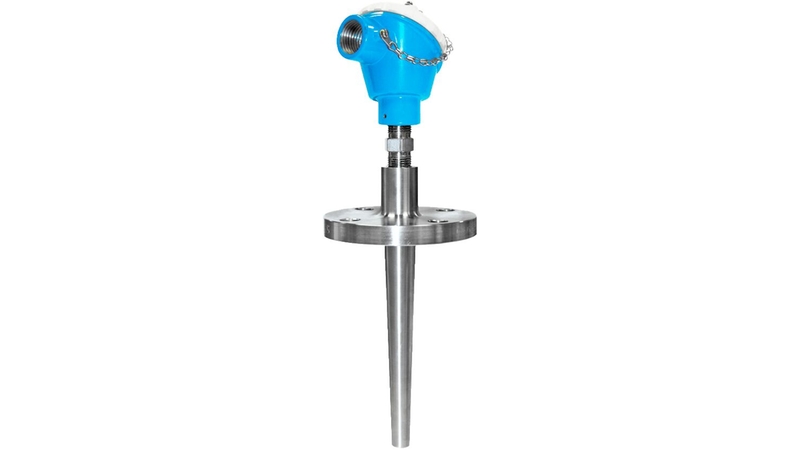

Endress+Hauser Endress+Hauser TH14Modular RTD thermometer, US style
