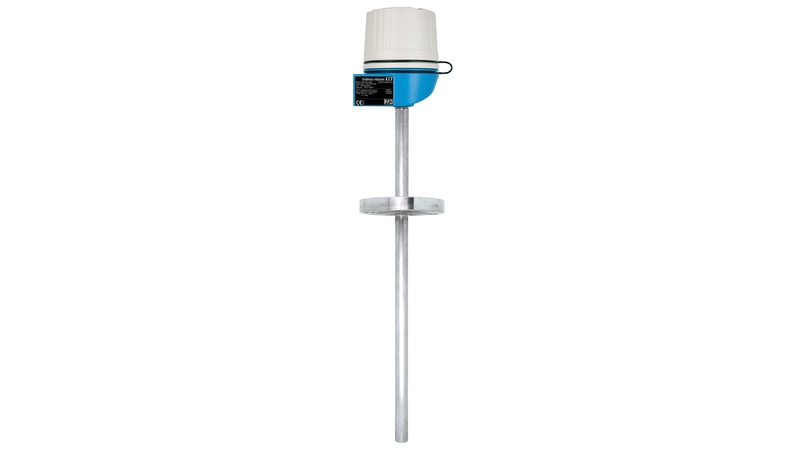

Endress+Hauser Thermocouple TC63
| Accuracy | class 1 acc. to IEC 60584 |
|---|---|
| Certification | Gost Metrology SIL (transmitter only) |
| Characteristic / Application | US style modular temperature assembly for heavy duty applications suitable for hazardous areas with neck incl. thermowell / protection tube (metal) |
| Ex - approvals | ATEX II IECEx NEPSI EAC Ex Explosion proof |
| Insert / probe | mineral insulated (MI), flexible |
| Integration head transmitter | yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS) |
| Material protection tube/ thermowell | 1.4401 (316) 1.4749 (~446) |
| Max. immersion length on request | up to 10.000,00 mm (393,70'') |
| Max. process pressure (static) | at 20 °C: 100 bar (1.450 psi) |
| Operating temperature range | Type K: -40 °C ... 1.100 °C (-40 °F ...2.012 °F) Type J: -200 °C ...750 °C (-328 °F ...1.382 °F) |
| Optional coating | Not defined |
| Outer diameter protection tube / Insert | 1/4" SCH80 1/2" SCH80 1/2" SCH40 3/4" SCH80 3/4" SCH40 |
| Process Connection | male thread: NPT1/2" NPT3/4" NPT1" compression fitting: flange: ASME 1" 150 RF (B16.5) ASME 1" 300 RF (B16.5) ASME 1" 600 RF (B16.5) ASME 1,5" 150 RF (B16.5) ASME 1,5" 300 RF (B16.5) ASME 1,5" 600 RF (B16.5) ASME 2" 300 RF (B16.5) ASME 2" 600 RF (B16.5) |
| Response time | depending on configuration t50 = 3 s t90 = 7 s |
| Surface roughness Ra | 1,6 μm (63,0 μin.) |
| Thermowell / protection tube | welded protection tube |
| Tip shape | straight reduced |
Frequently Asked Questions
How do I get pricing for TC63?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the TC63?
TC63 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of TC63?
Key specifications include Accuracy: class 1 acc. to IEC 60584; Certification: Gost Metrology SIL (transmitter only); Characteristic / Application: US style modular temperature assembly for heavy duty applications suitable for hazardous areas with neck incl. thermowell / protection tube (metal); Ex - approvals: ATEX II IECEx NEPSI EAC Ex Explosion proof. The full specification table on this page lists every published attribute for this part.
How quickly can TC63 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

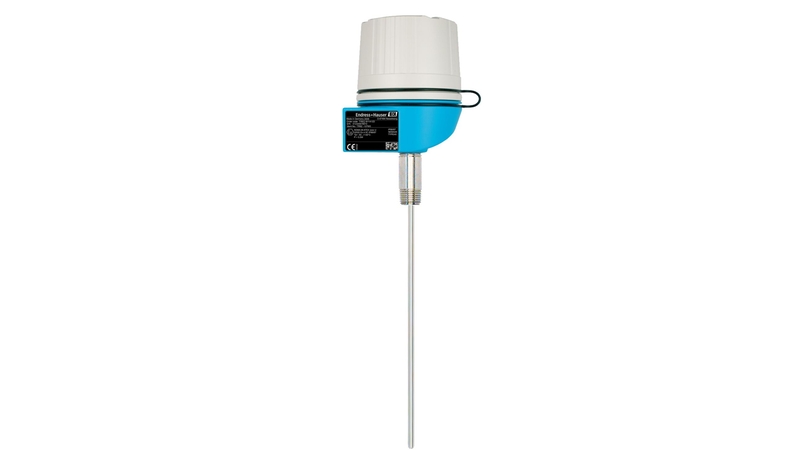

Endress+Hauser Endress+Hauser Thermocouple TC62

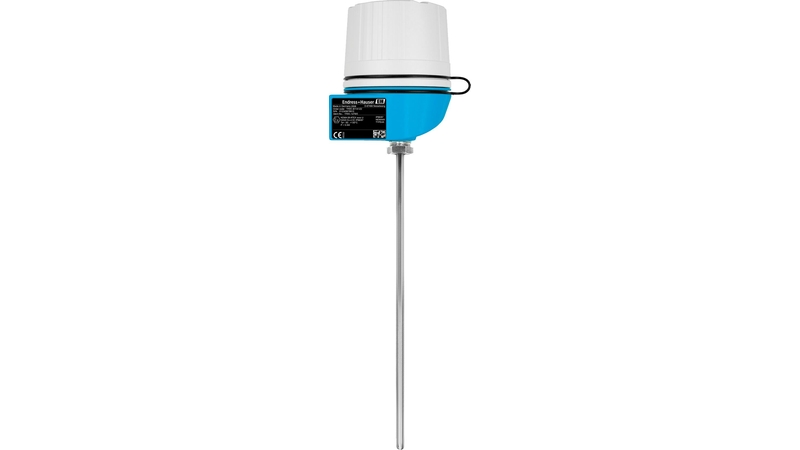

Endress+Hauser Endress+Hauser iTHERM ModuLine TC65Industrial modular thermometer

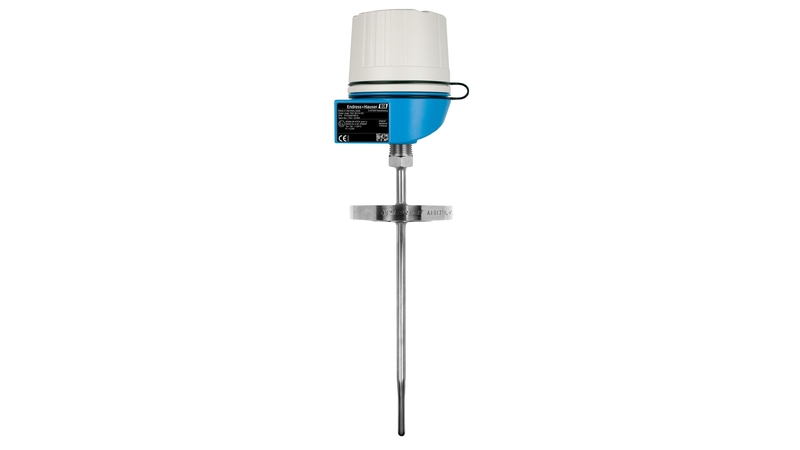

Endress+Hauser Endress+Hauser Thermocouple TC61

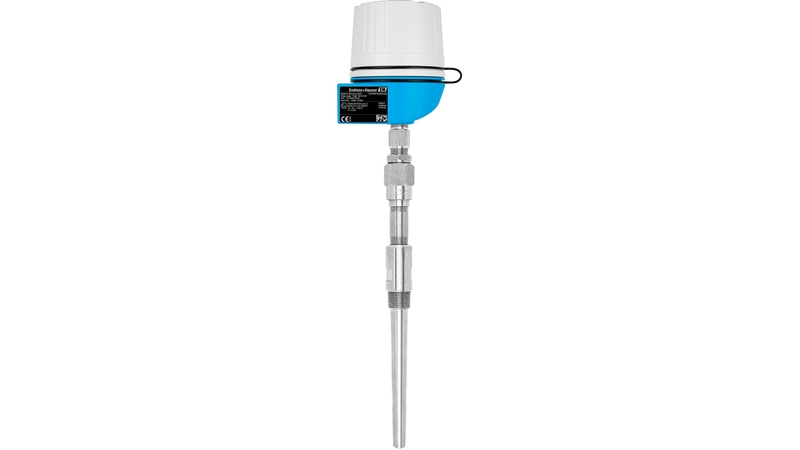

Endress+Hauser Endress+Hauser TC66Explosion-proof TC Thermometer

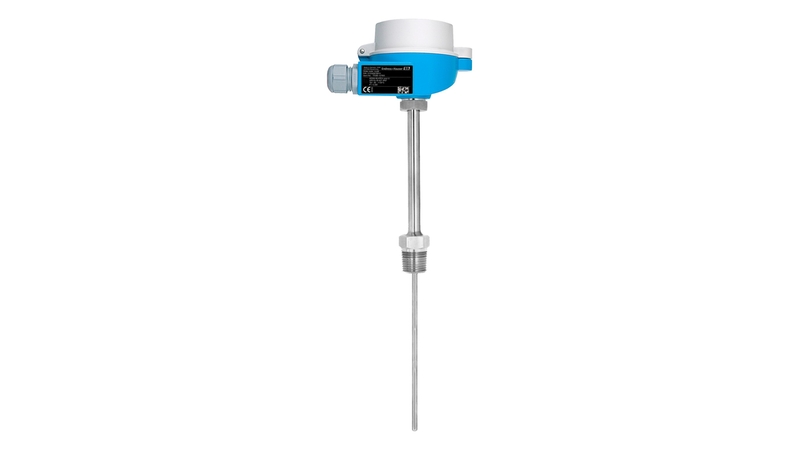

Endress+Hauser Endress+Hauser Thermocouple TC88
