Endress+Hauser Thermocouple TC61
Endress+Hauser TC61 - Temperature - Accuracy: class 1 acc. to IEC 60584; Response time: depending on configuration t50 = 3 s t90 = 7 s; Certification: Gost Metrology SIL (transmitter only).
In our catalog, the TC61 from Endress+Hauser is listed under the Temperature category. The manufacturer's published data for this part number specifies Accuracy: class 1 acc. to IEC 60584 and Response time: depending on configuration t50 = 3 s t90 = 7 s.
male thread: G1/2" G3/4" G1" NPT1/2" NPT3/4" M20x1,5 compression fitting: G1/2" G1" flange: DN25 PN40 B1 (EN1092) DN40 PN40 B1(EN1092) DN50 PN40 B1 (EN1092) ASME 1" 150 RF (B16.5) ASME 1" 300 RF (B16.5)
The specification set recorded for this part number covers Certification: Gost Metrology SIL (transmitter only); Thermowell / protection tube: welded protection tube; Insert / probe: mineral insulated (MI), flexible; Outer diameter protection tube / Insert: 9,0 mm (0,35'') 11,0 mm (0,43'') 12,0 mm (0,47''); Max. immersion length on request: up to 10.000,00 mm (393,70''); Material protection tube/ thermowell: 1.4404 (316L) 1.4571 (316Ti) Alloy 600 (2.4816) Alloy C276 (2.4819); Optional coating: Not defined; Tip shape: straight reduced tapered; Surface roughness Ra: 0,8 μm (31,5 μin.); Max. process pressure (static): at 20 °C: 100 bar (1.450 psi); Integration head transmitter: yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS); Ex - approvals: ATEX IECEx NEPSI EAC Explosion proof. The complete technical table is shown in the Specifications tab on this page.
| Accuracy | class 1 acc. to IEC 60584 |
|---|---|
| Certification | Gost Metrology SIL (transmitter only) |
| Characteristic / Application | metric style modular temperature assembly for heavy duty applications suitable for hazardous areas with neck incl. thermowell / protection tube (metal) |
| Ex - approvals | ATEX IECEx NEPSI EAC Explosion proof |
| Insert / probe | mineral insulated (MI), flexible |
| Integration head transmitter | yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS) |
| Material protection tube/ thermowell | 1.4404 (316L) 1.4571 (316Ti) Alloy 600 (2.4816) Alloy C276 (2.4819) |
| Max. immersion length on request | up to 10.000,00 mm (393,70'') |
| Max. process pressure (static) | at 20 °C: 100 bar (1.450 psi) |
| Operating temperature range | Type K: -40 °C ...1.100 °C (-40 °F ...2.012 °F) Type J: -40 °C ...750 °C (-40 °F ...1.382 °F) |
| Optional coating | Not defined |
| Outer diameter protection tube / Insert | 9,0 mm (0,35'') 11,0 mm (0,43'') 12,0 mm (0,47'') |
| Process Connection | male thread: G1/2" G3/4" G1" NPT1/2" NPT3/4" M20x1,5 compression fitting: G1/2" G1" flange: DN25 PN40 B1 (EN1092) DN40 PN40 B1(EN1092) DN50 PN40 B1 (EN1092) ASME 1" 150 RF (B16.5) ASME 1" 300 RF (B16.5) |
| Response time | depending on configuration t50 = 3 s t90 = 7 s |
| Surface roughness Ra | 0,8 μm (31,5 μin.) |
| Thermowell / protection tube | welded protection tube |
| Tip shape | straight reduced tapered |
Frequently Asked Questions
How do I get pricing for TC61?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the TC61?
TC61 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of TC61?
Key specifications include Accuracy: class 1 acc. to IEC 60584; Certification: Gost Metrology SIL (transmitter only); Characteristic / Application: metric style modular temperature assembly for heavy duty applications suitable for hazardous areas with neck incl. thermowell / protection tube (metal); Ex - approvals: ATEX IECEx NEPSI EAC Explosion proof. The full specification table on this page lists every published attribute for this part.
How quickly can TC61 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Endress+Hauser Endress+Hauser Thermocouple TC62
Endress+Hauser Endress+Hauser TC15Modular TC thermometer
Endress+Hauser Endress+Hauser Thermocouple TC63

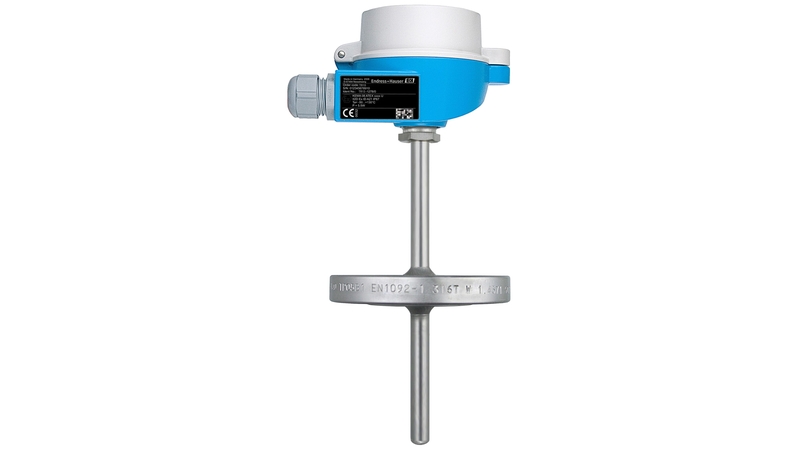

Endress+Hauser Endress+Hauser Thermocouple TC13
