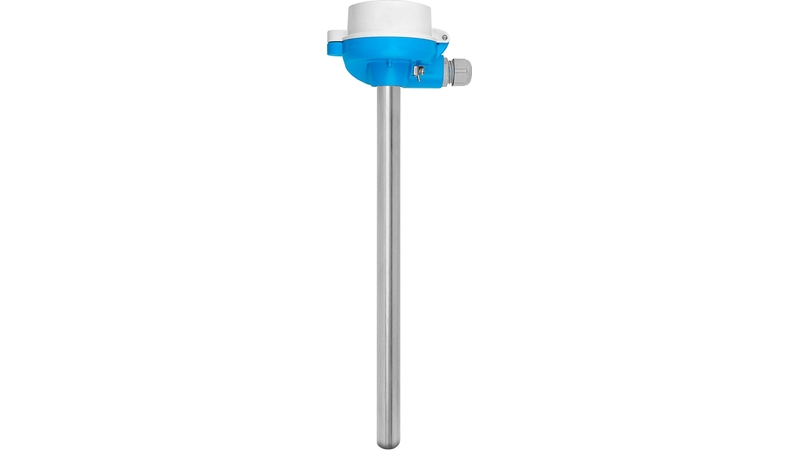

Endress+Hauser iTHERM FlameLine TAF16High temperature thermometer
| Accuracy | class 2 acc. to IEC 60584 |
|---|---|
| Certification | SIL (transmitter only) |
| Characteristic / Application | metric style modular temperature assembly high temperature probe (furnace) incl. thermowell / protection tube (metal) |
| Insert / probe | mineral insulated (MI), flexible ceramic capilarry, rigid |
| Integration head transmitter | yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS) |
| Material protection tube/ thermowell | 1.4401 (316) 1.4749 (~446) 1.4841 (310) Alloy 600 (2.4816) Alloy 601 (2.4851) Incoloy 800HT (1.4959) Kanthal AF Kanthal Super NiCo Siliciumnitrid(SiN) |
| Max. immersion length on request | up to 4.525,00 mm (178,15'') |
| Max. process pressure (static) | at 20 °C: 1 bar (15 psi) |
| Measuring principle | Thermocouple |
| Operating temperature range | Type K: -40 °C ...1.100 °C (-40 °F ...2.012 °F) Type J: -40 °C ...750 °C (-40 °F ...1.382 °F) Type N: -40 °C ...1.150 °C (-40 °F ...2102 °F) Type S: 0 °C ...1.400 °C (32 °F ...2.552 °F) |
| Outer diameter protection tube / Insert | 14,0 mm (0,55") 15,0 mm (0,59") 17,2 mm (0,68") 18,0 mm (0,71") 21,3 mm (0,84") 22,0 mm (0,87") 26,7 mm (1,05") 28,0 mm (1,10") |
| Process Connection | compression fitting: G1/2" G3/4" G1" G11/4" G11/2" adjustable Flange |
| Thermowell / protection tube | welded protection tube ceramic protection tube |
| Tip shape | straight |
Frequently Asked Questions
How do I get pricing for TAF16?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the TAF16?
TAF16 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of TAF16?
Key specifications include Accuracy: class 2 acc. to IEC 60584; Certification: SIL (transmitter only); Characteristic / Application: metric style modular temperature assembly high temperature probe (furnace) incl. thermowell / protection tube (metal); Insert / probe: mineral insulated (MI), flexible ceramic capilarry, rigid. The full specification table on this page lists every published attribute for this part.
How quickly can TAF16 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
