Endress+Hauser iTHERM FlameLine TAF11High temperature thermometer
| Accuracy | class 2 acc. to IEC 60584 |
|---|---|
| Certification | SIL (transmitter only) |
| Characteristic / Application | metric style modular temperature assembly high temperature probe (furnace) incl. single ceramic thermowell |
| Insert / probe | ceramic capilarry, rigid |
| Integration head transmitter | yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS) |
| Material protection tube/ thermowell | Ceramic (C610) silicon nitride ceramic (SiN) sintered silicon carbide (SiC) |
| Max. immersion length on request | up to 4.000,00 mm (157,48'') |
| Max. process pressure (static) | at 20 °C: 1 bar (15 psi) |
| Measuring principle | Thermocouple |
| Operating temperature range | Type K: -40 °C ...1.300 °C (-40 °F ...2.372 °F) Type J: -40 °C ...750 °C (-40 °F ...1.382 °F) Type N: -40 °C ...1.150 °C (-40 °F ...2102 °F) Type S: 0 °C ...1.600 °C (32 °F ...2.912 °F) Type R: 0 °C ...1.600 °C (32 °F ...2.912 °F) Type B: 600 °C ...1.600 °C (1.112 °F ...2.912 °F) |
| Outer diameter protection tube / Insert | 14,0 mm (0,55") 16,0 mm (0,59") 17,0 mm (0,68") 22,0 mm (0,87") 24,0 mm (0,94") 26,6 mm (1,05") |
| Process Connection | compression fitting: G3/4" G1" G11/2" adjustable Flange |
| Thermowell / protection tube | ceramic protection tube |
| Tip shape | straight |
Frequently Asked Questions
How do I get pricing for TAF11?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the TAF11?
TAF11 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of TAF11?
Key specifications include Accuracy: class 2 acc. to IEC 60584; Certification: SIL (transmitter only); Characteristic / Application: metric style modular temperature assembly high temperature probe (furnace) incl. single ceramic thermowell; Insert / probe: ceramic capilarry, rigid. The full specification table on this page lists every published attribute for this part.
How quickly can TAF11 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

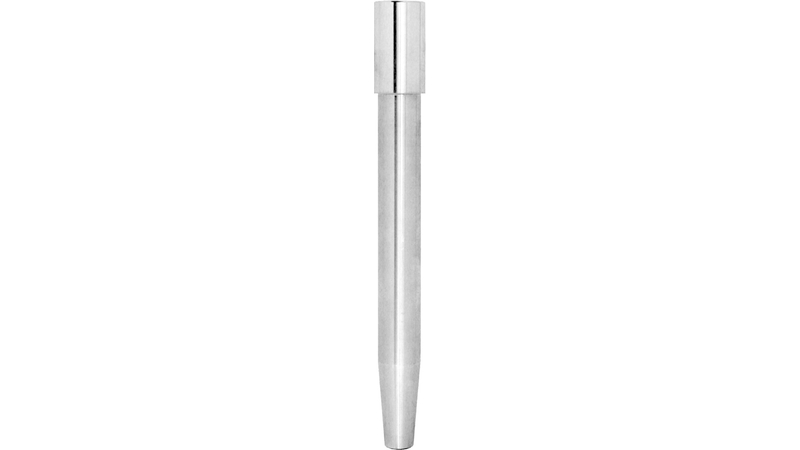

Endress+Hauser Endress+Hauser TA572Barstock thermowell

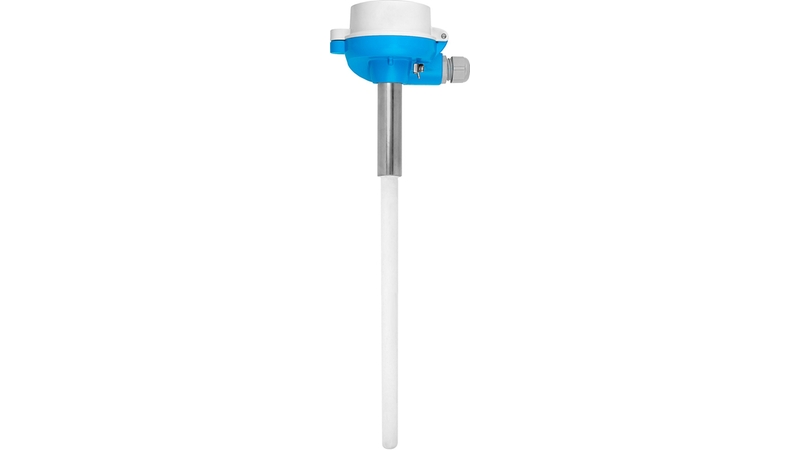

Endress+Hauser Endress+Hauser iTHERM FlameLine TAF12DHigh temperature thermometer
