Endress+Hauser Deltabar PMD78B - differential pressure transmitter
| Accuracy | Standard: up to 0.1 % |
|---|---|
| Ambient temperature | -54°C...+85°C (-65°F...+185°F) |
| Application limits | Keine |
| Certificates / Approvals | ATEX, CSA, IECEx, JPN Ex, INMETRO, NEPSI, UK Ex |
| Characteristic | Specialist with one or two capillaries for accurate differential pressure measurement. Intuitive and clear wizards for commissioning, proof tests and verification. |
| Characteristic / Application | Smart differential pressure transmitter with one or two capillaries, full range of certifications and Heartbeat Technology. Intuitive and clear wizards for commissioning, proof tests and verification. |
| Communication | 4...20 mA HART PROFIBUS PA PROFINET with Ethernet-APL Bluetooth® wireless technology and app (optional) |
| Design approvals | EN 10204-3.1, NACE MR0175, NACE MR0103 |
| Fill fluid | Silicone oil, inert oil, vegetable oil, low- / high temperature oil |
| Long term stability | 0.025 % of URL/ year 0.05 % of URL/ 5 years 0.10 % of URL/ 10 years |
| Main wetted parts | 316L, AlloyC, Tantal, Monel PTFE, Gold |
| Material gasket | PTFE, FKM, EPDM, FFKM |
| Material housing | Aluminium, 316L |
| Material process membrane | 316L, AlloyC, Tantal, Monel PTFE Gold |
| Max. measurement distance | 160 m (525 ft) H2O |
| Max. overpressure limit | 240 bar (3600 psi) |
| Max. Turn down | 100:1 |
| Measuring cell | 100 mbar...40 bar (1.5 psi...600 psi) |
| Measuring principle | Differential pressure |
| Options | Touch control display |
| Pressure measuring range | 100 mbar...40 bar (1.5psi...600 psi) |
| Process Connection | Thread: MNPT1/2, G1/2 Flange: NPS 2"...4", DN50...100 |
| Process pressure / max. overpressure limit | 160 bar (2.400 psi) |
| Process temperature | -40°C...+400°C (-40°F...+752°F) |
| Reference Accuracy | Standard: up to 0.1 % |
| Safety approvals | SIL |
| Smallest calibratable span | 5 mbar (0.075 psi) |
| Specialities | Heartbeat Technology, Bluetooth® Operation and maintenance SmartBlue App, LED Module, RFID TAG for easy identification, Plug and play functionalities HistoROM |
| Supply / Communication | Ex d, Ex e, non-Ex:: 10.5...35V DC Ex i: 10.5...30V DC |
| Supply voltage | Ex d, Ex e, non-Ex: 10.5...35V DC Ex i: 10.5...30V DC |
| Vacuum resistance | 50 mbar (0.73 psi) |
Frequently Asked Questions
How do I get pricing for PMD78B?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the PMD78B?
PMD78B is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of PMD78B?
Key specifications include Accuracy: Standard: up to 0.1 %; Ambient temperature: -54°C...+85°C (-65°F...+185°F); Application limits: Keine; Certificates / Approvals: ATEX, CSA, IECEx, JPN Ex, INMETRO, NEPSI, UK Ex. The full specification table on this page lists every published attribute for this part.
How quickly can PMD78B ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

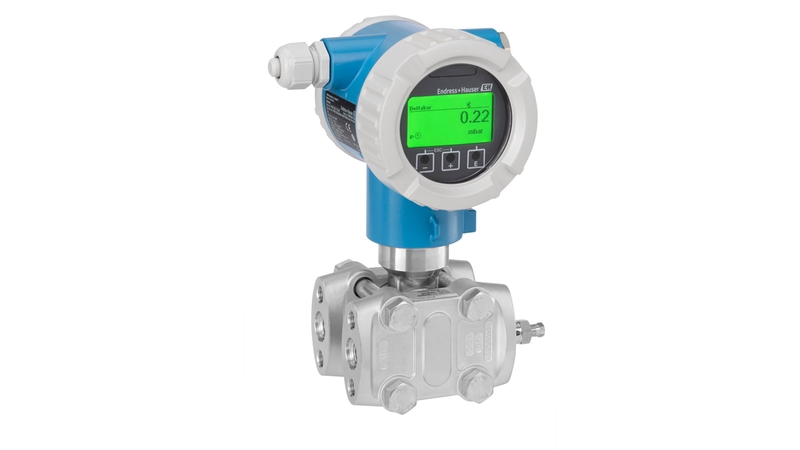

Endress+Hauser Endress+Hauser Deltabar PMD75B - differential pressure transmitter
Endress+Hauser Endress+Hauser Gauge pressureCerabar PMP11
Endress+Hauser Endress+Hauser Cerabar T PMP131

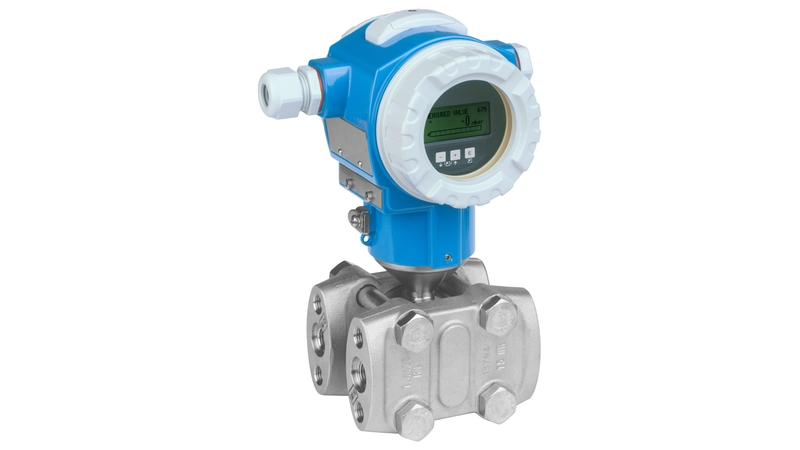

Endress+Hauser Endress+Hauser Differential pressureDeltabar PMD75
