Endress+Hauser Deltabar PMD63B - differential pressure transmitter
| Accuracy | Standard: up to 0.075 % |
|---|---|
| Ambient temperature | -40°C...+85°C (-40°F...+185°F) |
| Certificates / Approvals | ATEX, CAN/US Ex, IECEx, JPN Ex, KC Ex, EAC Ex, INMETRO, NEPSI, UK Ex |
| Characteristic | Specialist with one or two capillaries for accurate differential pressure measurement. Intuitive and clear wizards for commissioning, proof tests and verification. |
| Characteristic / Application | Specialist with one or two capillaries for accurate differential pressure measurement. Intuitive and clear wizards for commissioning, proof tests and verification. |
| Communication | 4...20 mA HART PROFIBUS PA PROFINET over Ethernet-APL Bluetooth® wireless technology and app (optional) |
| Design approvals | EN10204-3.1 |
| Drinking water approvals | KTW drinking water approval NSF |
| Fill fluid | Silicone oil, vegetable oil, high temperature oil |
| Hygienic approvals | CoC ASME-BPE cGMP 3A EHEDG |
| Long term stability | 0.025 % of URL/ year 0.05 % of URL/ 5 years 0.10 % of URL/ 10 years |
| Main wetted parts | 316L |
| Material gasket | PTFE, FKM, EPDM, FFKM |
| Material housing | Aluminum, 316L hygiene |
| Material process membrane | 316L |
| Max. overpressure limit | 240 bar (3600 psi) |
| Max. Turn down | 100:1 |
| Measuring cell | 100 mbar...40 bar (1.5 psi...600 psi) |
| Measuring principle | Differential pressure |
| Pressure measuring range | 100 mbar...40 bar (1.5 psi...600 psi) |
| Process Connection | Flange: DN50…80 NPS 1-1/2"…3", DIN11852 DN50…80, DRD, SMS 1-1/2"…2" |
| Process connection hygienic | Tri-Clamp 1-1/2"…3", Varivent, NEUMO BioControl D50…80 Universaladapter, Sanitary Tank Spud 2"…6" |
| Process pressure / max. overpressure limit | 240 bar (3600 psi) |
| Process temperature | -70°C...+250°C (-94°F...+482°F) |
| Reference Accuracy | Standard: up to 0.075 % |
| Safety approvals | SIL |
| Smallest calibratable span | 5 mbar (0.075 psi) |
| Specialities | Heartbeat Technologie, Bluetooth® Bedienung und Wartung mit der SmartBlue App, LED- Modul, RFID-TAG zur einfachen Identifikation, "Plug and play" Funktionen, HistoROM |
| Supply / Communication | 4...20 mA HART 10,5…35V DC (Non Ex, Exd, Ex e): Ex ia: 10,5...30V DC PROFINET with Ethernet-APL 9,6…15V DC PROFIBUS PA: 9...32 V DC (Non Ex, Ex d, Exe) 9…24V DC (Ex i) |
| Supply voltage | 4...20 mA HART 10,5…35V DC (Non Ex, Exd, Ex e): Ex ia: 10,5...30V DC PROFINET with Ethernet-APL 9,6…15V DC PROFIBUS PA: 9...32 V DC (Non Ex, Ex d, Exe) 9…24V DC (Ex i) |
| Vacuum resistance | 50 mbar (0.73 psi) |
Frequently Asked Questions
How do I get pricing for PMD63B?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the PMD63B?
PMD63B is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of PMD63B?
Key specifications include Accuracy: Standard: up to 0.075 %; Ambient temperature: -40°C...+85°C (-40°F...+185°F); Certificates / Approvals: ATEX, CAN/US Ex, IECEx, JPN Ex, KC Ex, EAC Ex, INMETRO, NEPSI, UK Ex; Characteristic: Specialist with one or two capillaries for accurate differential pressure measurement. Intuitive and clear wizards for commissioning, proof tests and verification.. The full specification table on this page lists every published attribute for this part.
How quickly can PMD63B ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

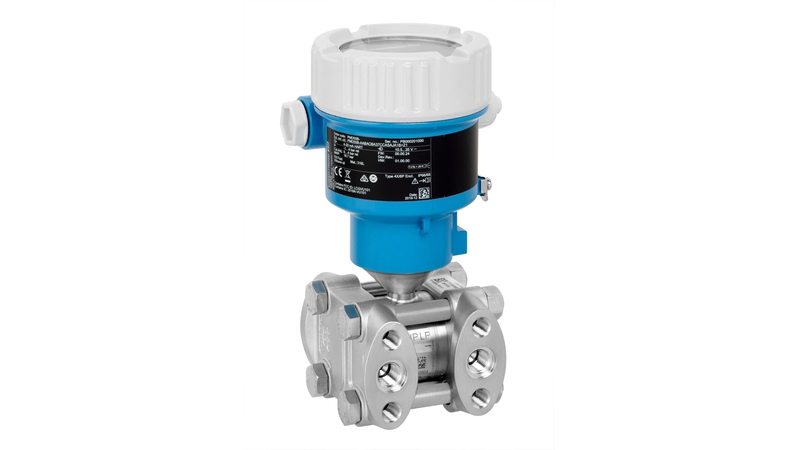

Endress+Hauser Endress+Hauser Deltabar PMD55B - differential pressure transmitter
Endress+Hauser Endress+Hauser Differential pressureDeltabar PMD75

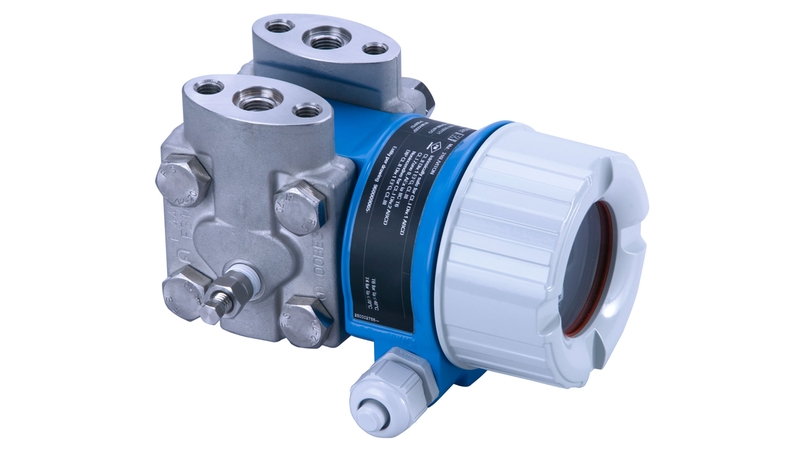

Endress+Hauser Endress+Hauser Differential pressureDeltabar PMD55
Endress+Hauser Endress+Hauser Deltabar PMD75B - differential pressure transmitter

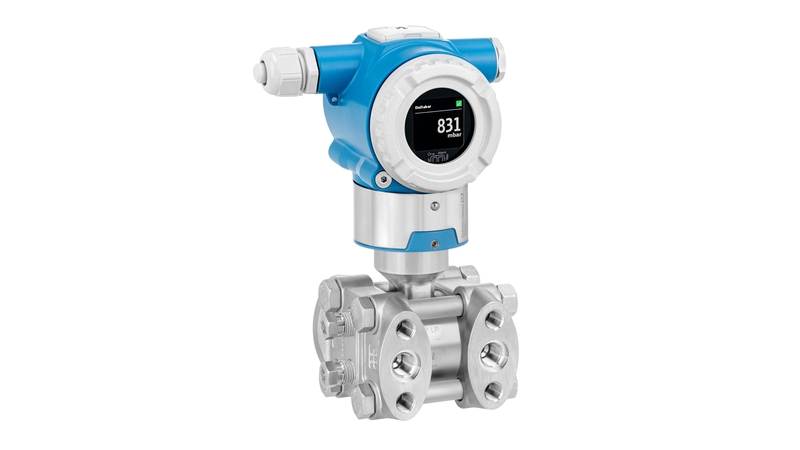

Endress+Hauser Endress+Hauser Deltabar PMD50 - differential pressure transmitter
