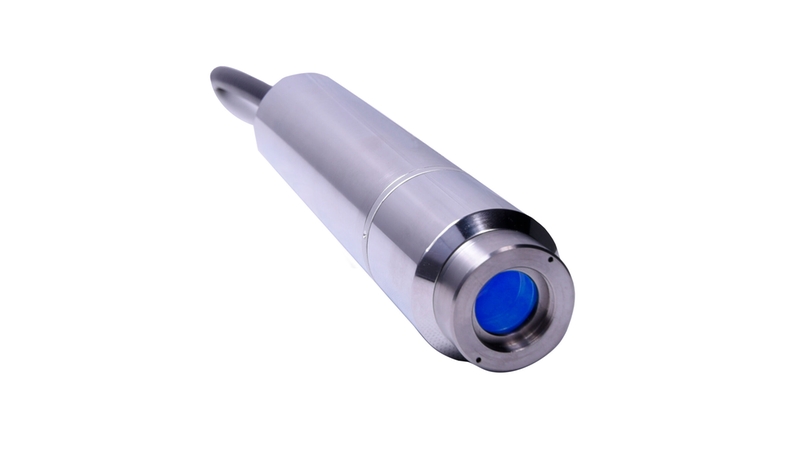

Endress+Hauser Raman Rxn-20 probe
Endress+Hauser KR20 - Optical analysis - Length: Rxn-20 probe (including fiber cable bend radius): 312 mm / 12.29 inch ft; Relative Humidity: 20 to 80 %, non-condensing; Ambient temperature: 10 to 40 °C / 50 to 104 °F.
Endress+Hauser KR20 is a Optical analysis catalog item from Endress+Hauser. The manufacturer's published data for this part number specifies Length: Rxn-20 probe (including fiber cable bend radius): 312 mm / 12.29 inch ft and Relative Humidity: 20 to 80 %, non-condensing.
Connections: proprietary electro-optic Temperature: -40 to 70 °C / -40 to 158 °F Lengths available: 3000 mm / 118.12 inch 10000 mm / 393.71 inch 15000 mm /590.56 inch Minimum bend radius: 75 mm / 2.96 inch
Published specifications for this part include Ambient temperature: 10 to 40 °C / 50 to 104 °F; Measuring principle: Raman spectroscopy; Diameter: Raman Rxn-20: 48 mm / 1.89 inch; Pressure: Ambient; Working distance: Based on the sampling optic selected; Laser wavelength: 785 nm; Spectral coverage: 175-1890 cm-1 (785 nm); Maximum laser power into probehead (mW): < 499; Body and window materials: Body: 316L stainless steel Window: optical-grade materials; Hazardous area certifications: ATEX, CSA, IECEx, UKCA, JPEx. See the Specifications tab on this page for the full technical table.
| Ambient temperature | 10 to 40 °C / 50 to 104 °F |
|---|---|
| Body and window materials | Body: 316L stainless steel Window: optical-grade materials |
| Diameter | Raman Rxn-20: 48 mm / 1.89 inch |
| Fiber optic cable | Connections: proprietary electro-optic Temperature: -40 to 70 °C / -40 to 158 °F Lengths available: 3000 mm / 118.12 inch 10000 mm / 393.71 inch 15000 mm /590.56 inch Minimum bend radius: 75 mm / 2.96 inch |
| Hazardous area certifications | ATEX, CSA, IECEx, UKCA, JPEx |
| Laser wavelength | 785 nm |
| Length | Rxn-20 probe (including fiber cable bend radius): 312 mm / 12.29 inch ft |
| Maximum laser power into probehead (mW) | < 499 |
| Measuring principle | Raman spectroscopy |
| Pressure | Ambient |
| Relative Humidity | 20 to 80 %, non-condensing |
| Sample interface | Temperature: 10 to 40 °C / 50 to 104 °F Relative humidity: 20 to 80 %, non-condensing |
| Spectral coverage | 175-1890 cm-1 (785 nm) |
| Working distance | Based on the sampling optic selected |
Frequently Asked Questions
How do I get pricing for KR20?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the KR20?
KR20 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of KR20?
Key specifications include Ambient temperature: 10 to 40 °C / 50 to 104 °F; Body and window materials: Body: 316L stainless steel Window: optical-grade materials; Diameter: Raman Rxn-20: 48 mm / 1.89 inch; Fiber optic cable: Connections: proprietary electro-optic Temperature: -40 to 70 °C / -40 to 158 °F Lengths available: 3000 mm / 118.12 inch 10000 mm / 393.71 inch 15000 mm /590.56 inch Minimum bend radius: 75 mm / 2.96 inch. The full specification table on this page lists every published attribute for this part.
How quickly can KR20 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

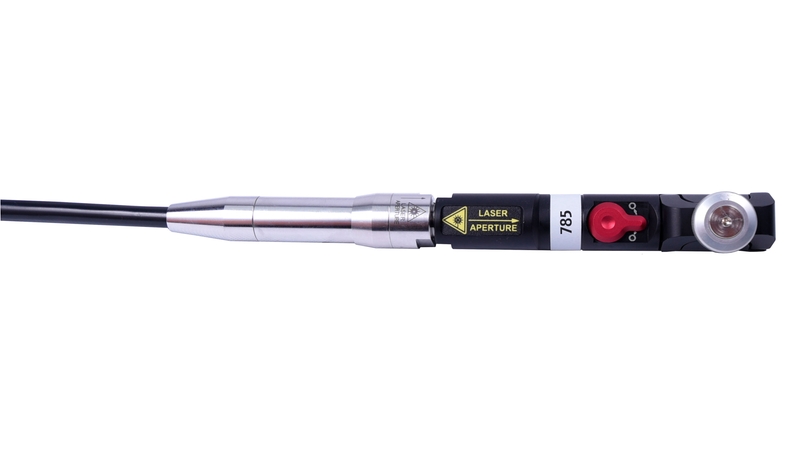

Endress+Hauser Endress+Hauser Raman Rxn-10 probe

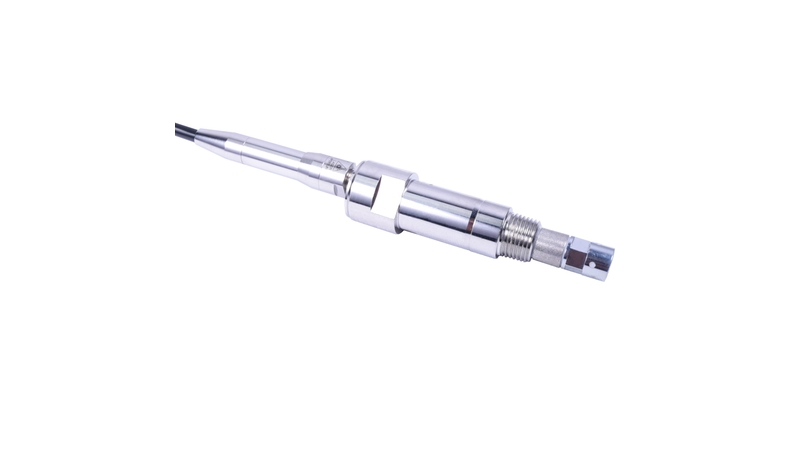

Endress+Hauser Endress+Hauser Raman Rxn-30 probe
