Endress+Hauser VibronicPoint level detectionLiquiphant FTL81
| Ambient temperature | -60°C...+70°C (-76°F...+160°F) |
|---|---|
| Certificates / Approvals | ATEX, FM, CSA, CSA C/US, IEC Ex, NEPSI, EAC |
| Characteristic / Application | Reliable point level switch with extension pipe for MIN and MAX safety applications up to SIL3. Dual Sealing / Second line of defense Modular housing concept |
| Communication | 2-wire 4...20 mA |
| Components | Nivotester FTL825, Transmitter |
| Design approvals | EN 10204-3.1 NACE MR0175, MR0103 ASME B31.3 AD2000 |
| Main wetted parts | 316L Alloy C |
| Marine approval | GL/ ABS/ LR/ BV/ DNV |
| Measuring principle | Vibration Liquids |
| Min. density of medium | Density from 0.4 g/cm3 (0.4 SGU) |
| Options | PWIS free Pressure tight feed through Weather protection |
| Process Connection | Flange: DN25...DN100, ASME 1"...4", JIS 10K...20K Thread: G3/4, G1, R3/4, R1, MNPT3/4, MNPT1 |
| Process pressure / max. overpressure limit | Vacuum...100 bar (1450 psi) |
| Process temperature | -60°C...+280°C (-76°F...+540°F) |
| Safety approvals | Overfill protection WHG Leakage Detection SIL3 |
| Sensor length | Extension pipe up to 3 m (9.8 ft) |
| Specialities | Outstanding features: - permanent LIVE signal monitors function safety - failsafe design and - high availability of the measuring values |
| Supply / Communication | 2-wire 4...20 mA |
Frequently Asked Questions
How do I get pricing for FTL81?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the FTL81?
FTL81 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of FTL81?
Key specifications include Ambient temperature: -60°C...+70°C (-76°F...+160°F); Certificates / Approvals: ATEX, FM, CSA, CSA C/US, IEC Ex, NEPSI, EAC; Characteristic / Application: Reliable point level switch with extension pipe for MIN and MAX safety applications up to SIL3. Dual Sealing / Second line of defense Modular housing concept; Communication: 2-wire 4...20 mA. The full specification table on this page lists every published attribute for this part.
How quickly can FTL81 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Endress+Hauser Endress+Hauser VibronicPoint level detectionNivotester FailSafe FTL825
Endress+Hauser Endress+Hauser VibronicPoint level detectionLiquiphant FTL80

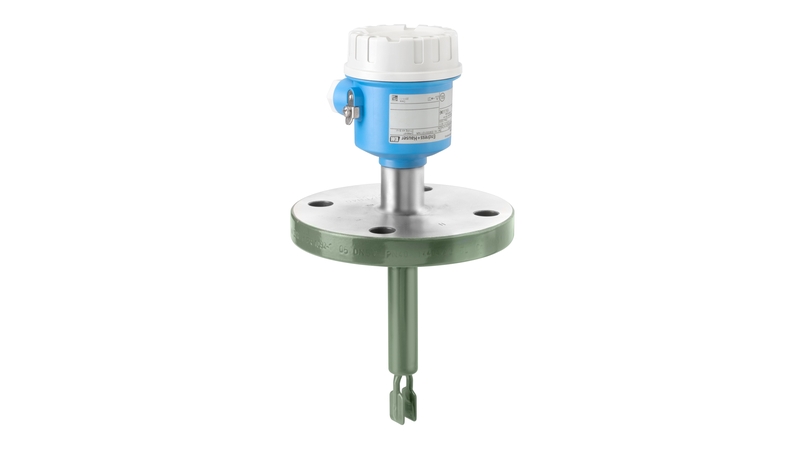

Endress+Hauser Endress+Hauser VibronicPoint level detectionLiquiphant FTL85
Endress+Hauser Endress+Hauser Liquiphant S FTL71

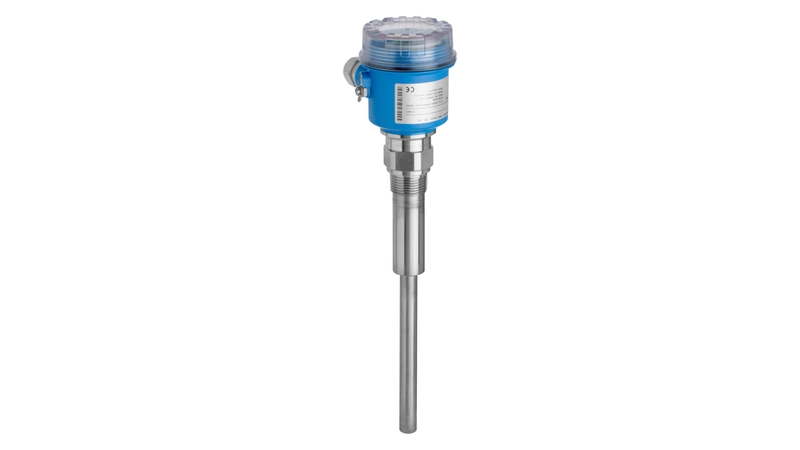

Endress+Hauser Endress+Hauser VibronicPoint level detectionSoliphant FTM20
