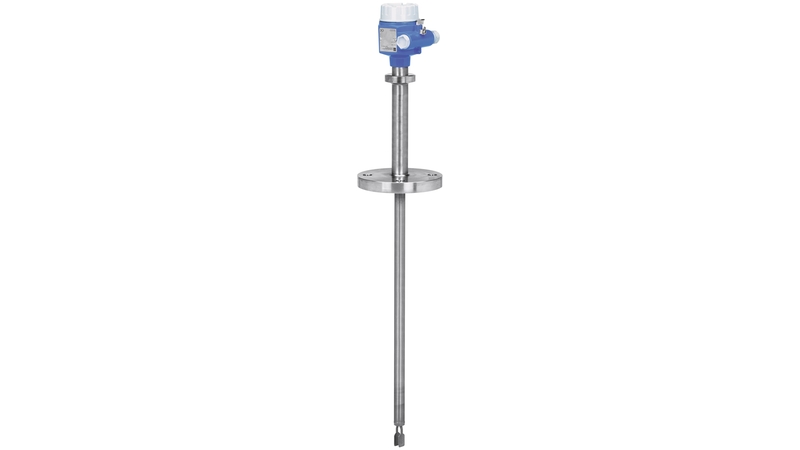

Endress+Hauser Liquiphant S FTL71
| Ambient temperature | -50 °C...+70 °C (-58 °F...+158 °F) |
|---|---|
| Certificates / Approvals | ATEX, FM, CSA C/US, IEC Ex, TIIS, INMETRO, NEPSI |
| Characteristic / Application | Modular housing concept High process temperatures up to 280°C wide range of process connections Analogue and bus interfaces Extensive certificate range (e.g. Ex,WHG) compact, e.g. pipes Dual Sealing / Second line of defense |
| Communication | PROFIBUS PA 19...253V AC 10...55V DC-PNP 19...253V AC bzw 10...55V DC 8/16mA, 11...36V DC NAMUR PFM |
| Components | FTL325P/FTL375P Interface PFM FTL325N/FTL375N Interface NAMUR |
| Design approvals | EN 10204-3.1 NACE MR0175, MR0103 ASME B31.3 AD2000 |
| Main wetted parts | 316L / Alloy PFA and Enamel on request |
| Marine approval | GL/ ABS |
| Measuring principle | Vibration Liquids |
| Min. density of medium | 0.5g/cm³ (0.4g/cm³ optional) |
| Options | Heavy duty stainless steel housing mainly for the oil and gas industry |
| Process Connection | Thread: G3/4A, G1A, R3/4", R1, NPT3/4, NPT1 Flange: DIN DN25...DN100, ASME 1"...4", JIS 25A...100A |
| Process pressure / max. overpressure limit | Vacuum...100 bar (Vacuum...1450 bar) |
| Process temperature | -60 °C...+280 °C (-76 °F...+540 °F) (300°C / 572°F, 50h cumulated) |
| Safety approvals | SIL |
| Sensor length | Length 130mm (5.12") (Liquiphant II) 148mm...3000mm / 6000mm optional (5.83"...118" / 236" optional) |
| Specialities | Foam detection Detect a density change second line of defense |
| Supply / Communication | PROFIBUS PA 19...253V AC 10...55V DC-PNP 19...253V AC bzw 10...55V DC 8/16mA, 11...36V DC NAMUR PFM |
Frequently Asked Questions
How do I get pricing for FTL71?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the FTL71?
FTL71 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of FTL71?
Key specifications include Ambient temperature: -50 °C...+70 °C (-58 °F...+158 °F); Certificates / Approvals: ATEX, FM, CSA C/US, IEC Ex, TIIS, INMETRO, NEPSI; Characteristic / Application: Modular housing concept High process temperatures up to 280°C wide range of process connections Analogue and bus interfaces Extensive certificate range (e.g. Ex,WHG) compact, e.g. pipes Dual Sealing / Second line of defense; Communication: PROFIBUS PA 19...253V AC 10...55V DC-PNP 19...253V AC bzw 10...55V DC 8/16mA, 11...36V DC NAMUR PFM. The full specification table on this page lists every published attribute for this part.
How quickly can FTL71 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

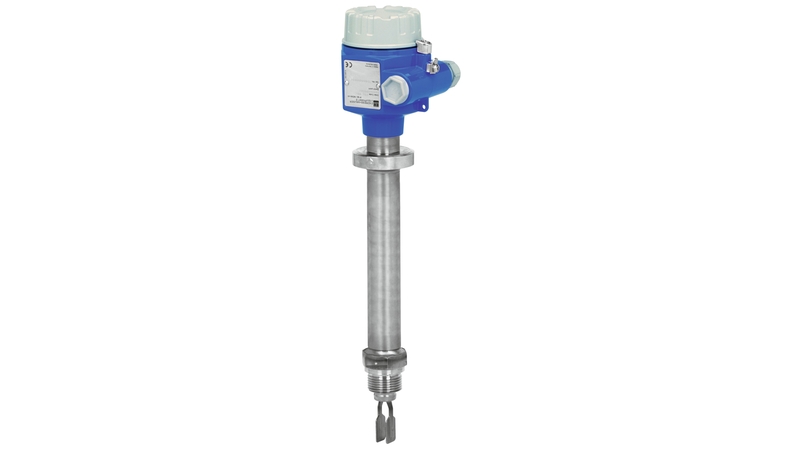

Endress+Hauser Endress+Hauser Liquiphant S FTL70

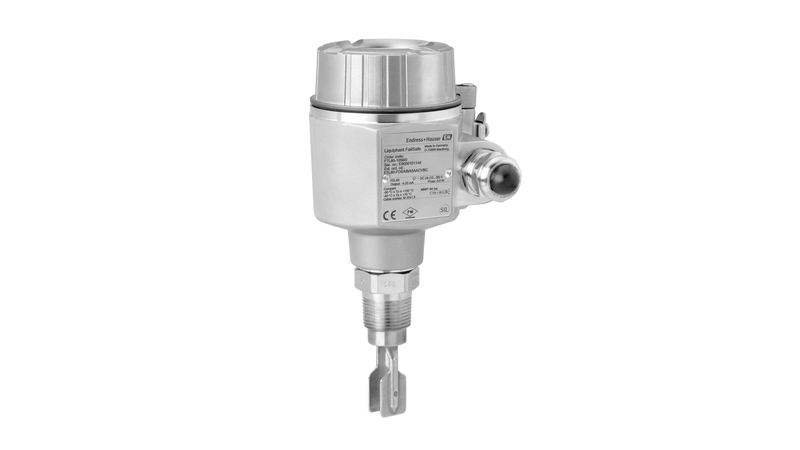

Endress+Hauser Endress+Hauser VibronicPoint level detectionLiquiphant FTL80
Endress+Hauser Endress+Hauser Liquiphant FTL64 - reliable detection at high temperatures

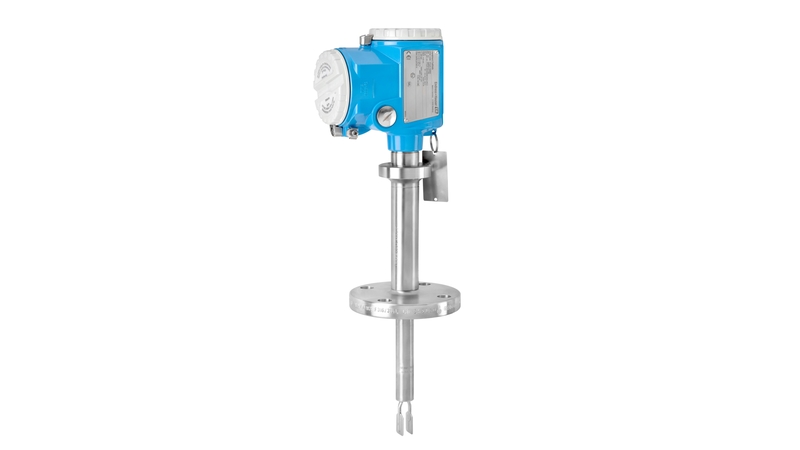

Endress+Hauser Endress+Hauser VibronicPoint level detectionLiquiphant FTL81

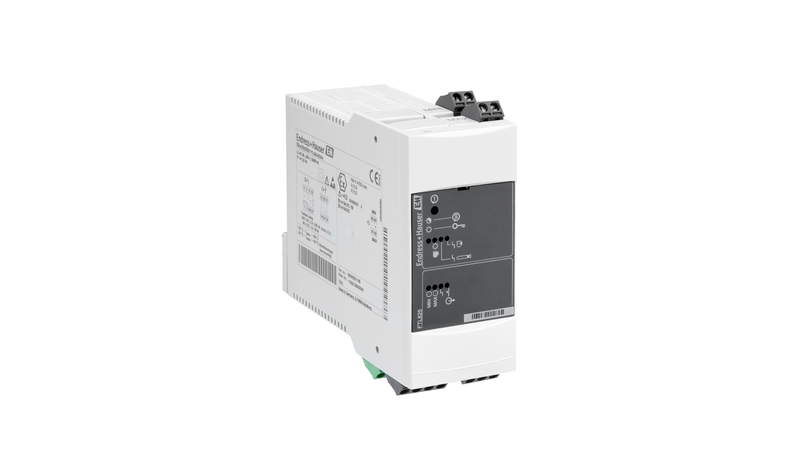

Endress+Hauser Endress+Hauser VibronicPoint level detectionNivotester FailSafe FTL825
