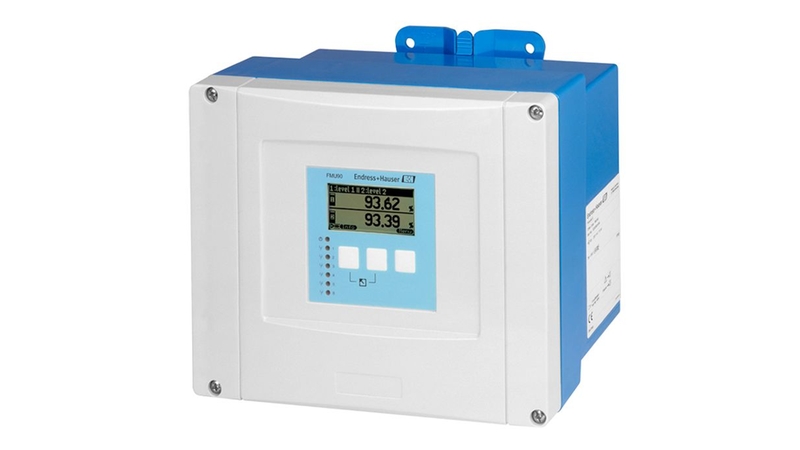

Endress+Hauser Ultrasonic measurementTime-of-FlightProsonic FMU90
| Accuracy | +/- 2mm + 0.17% of measured distance |
|---|---|
| Ambient temperature | -40 °C ... 60 °C (-4 °F ... 140 °F) |
| Certificates / Approvals | ATEX, CSA |
| Characteristic / Application | Separated version with Field housing or top hat rail housing for control cabinet instrumentation, up to 6 relays for limit control, 1 or 2 channel version |
| Communication | up to 2x 4 ... 20 mA HART Profibus DP |
| Components | Sensors FDU9x |
| Degree of protection | IP66 (Fieldhousing) IP20 (top hat rail housing) |
| Digital communication | HART, Profibus DP |
| Display/Operation | Illuminated display, 6 line graphic display with country specific menu guidance, on-site diagnosis with envelope curve on display |
| Hazardous area approvals | FMU allowed to operate FDU9x in Ex-zone |
| Inputs | up to 2 FDU9x sensors |
| Measuring principle | Ultrasonic |
| Options | Illuminated display, 6 line graphic display with country specific menu guidance, on-site diagnosis with envelope curve on display |
| Outputs | 4...20mA HART Optional: second 4...20 mA output (e.g. for 2 times flow measurement 1 relay (standard) Optional: 3 or 6 relays |
| Product headline | Separated version with field housing or top hat rail housing for control cabinet instrumentation, up to 6 relays for tendency alarm, flow pulse output or backwater / sludge alarm, 1 or 2 channel version |
| Sensor features | pre-programed flow curves for typical open channel measurement |
| Specialities | Protection Class IP 66 / NEMA 4x automatic sensor recognition of FDU9x sensors |
| Supply / Communication | 90 ... 253 VAC 10.5 ... 32 VDC up to 2x 4...20mA HART Profibus DP |
Frequently Asked Questions
How do I get pricing for FMU90?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the FMU90?
FMU90 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of FMU90?
Key specifications include Accuracy: +/- 2mm + 0.17% of measured distance; Ambient temperature: -40 °C ... 60 °C (-4 °F ... 140 °F); Certificates / Approvals: ATEX, CSA; Characteristic / Application: Separated version with Field housing or top hat rail housing for control cabinet instrumentation, up to 6 relays for limit control, 1 or 2 channel version. The full specification table on this page lists every published attribute for this part.
How quickly can FMU90 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

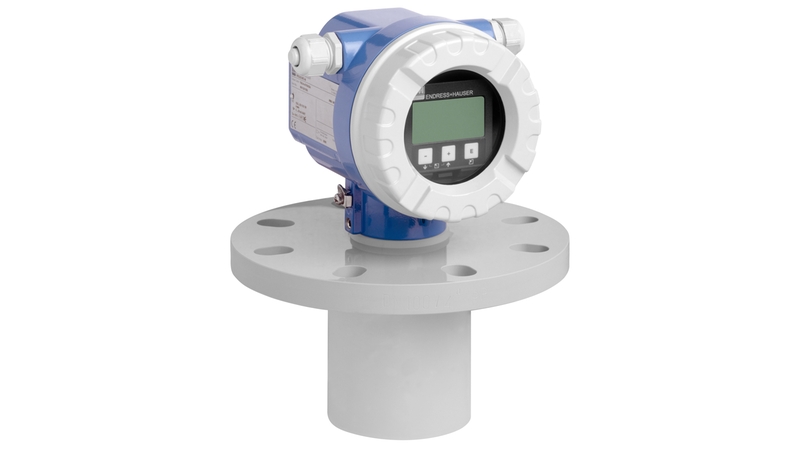

Endress+Hauser Endress+Hauser Ultrasonic measurementTime-of-FlightProsonic FMU44

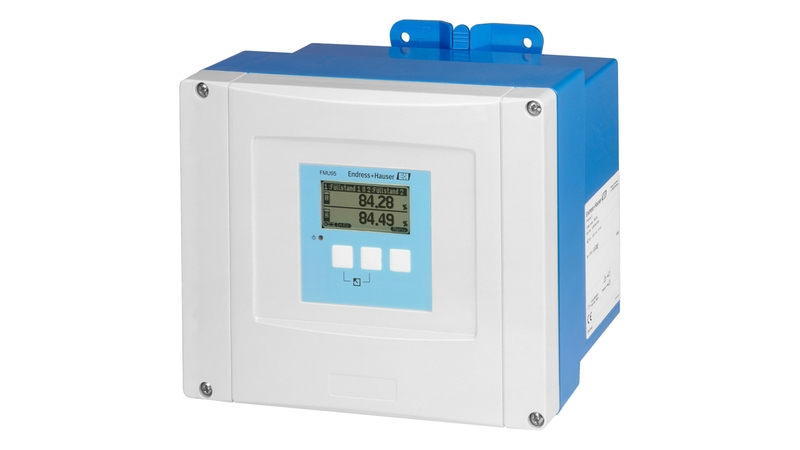

Endress+Hauser Endress+Hauser Ultrasonic measurementTime-of-FlightProsonic FMU95

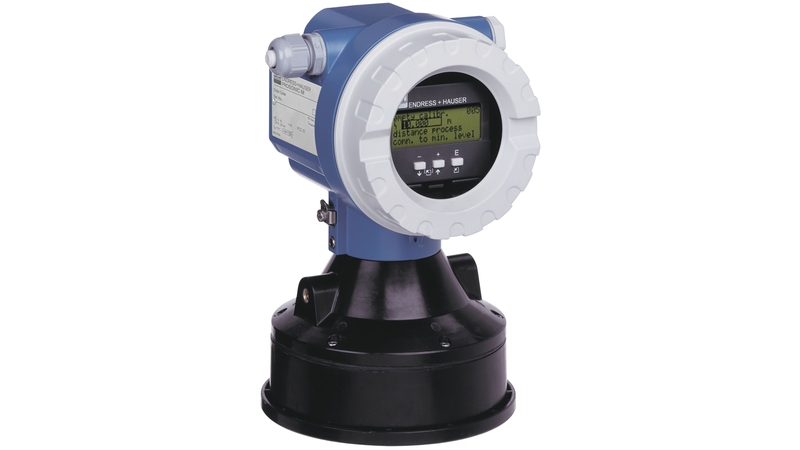

Endress+Hauser Endress+Hauser Prosonic M FMU43

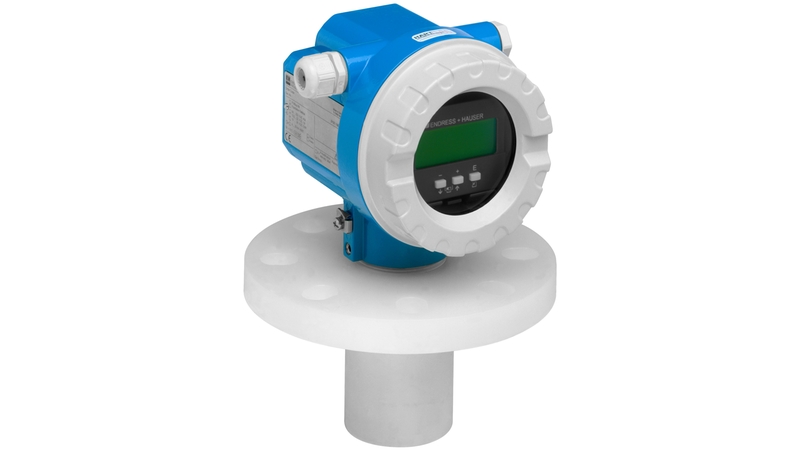

Endress+Hauser Endress+Hauser Ultrasonic measurementTime-of-FlightProsonic FMU42
