Endress+Hauser Ultrasonic measurementTime-of-FlightProsonic FMU40
| Accuracy | +/- 2 mm or +/- 0.2 % of set measuring range 1) |
|---|---|
| Ambient temperature | -40 °C ... 80 °C (-40 °F ... 176 °F) |
| Application limits | Take notice of range diagram |
| Blocking distance | 0.25 m (0.8 ft) |
| Certificates / Approvals | ATEX, FM, CSA, IEC, INMETRO, NEPSI |
| Characteristic / Application | Compact ultrasonic transmitter |
| Communication | 4...20 mA HART |
| Degree of protection | IP68 |
| Digital communication | HART |
| Hazardous area approvals | ATEX, IEC, FM, CSA, INMETRO, NEPSI |
| Inputs | 2-wire |
| Main wetted parts | PVDF |
| Max. measurement distance | Liquids: 5 m (16 ft), Solids: 2 m (6.6 ft) |
| Max. measurement error | > 2 mm depending on flow application |
| Max. process pressure | 0.7 bar...3 bar (10 psi...44 psi) |
| Measuring principle | Ultrasonic |
| Measuring range | 0.25...5 m [0.8...16 ft] |
| Medium temperature range | -40°C ... 80°C (-40°F...176°F) |
| Outputs | 4...20 mA HART |
| Process Connection | G / NPT 1 1/2" |
| Process pressure / max. overpressure limit | 0.7 bar ... 3 bar abs (10 psi ... 44 psi) |
| Process temperature | -40 °C ... 80 °C (-40 °F ... 176 °F) |
| Product headline | Compact ultrasonic measuring instrument Cost effective solution for open channel |
| Supply / Communication | 2-wire HART |
Frequently Asked Questions
How do I get pricing for FMU40?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the FMU40?
FMU40 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of FMU40?
Key specifications include Accuracy: +/- 2 mm or +/- 0.2 % of set measuring range 1); Ambient temperature: -40 °C ... 80 °C (-40 °F ... 176 °F); Application limits: Take notice of range diagram; Blocking distance: 0.25 m (0.8 ft). The full specification table on this page lists every published attribute for this part.
How quickly can FMU40 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

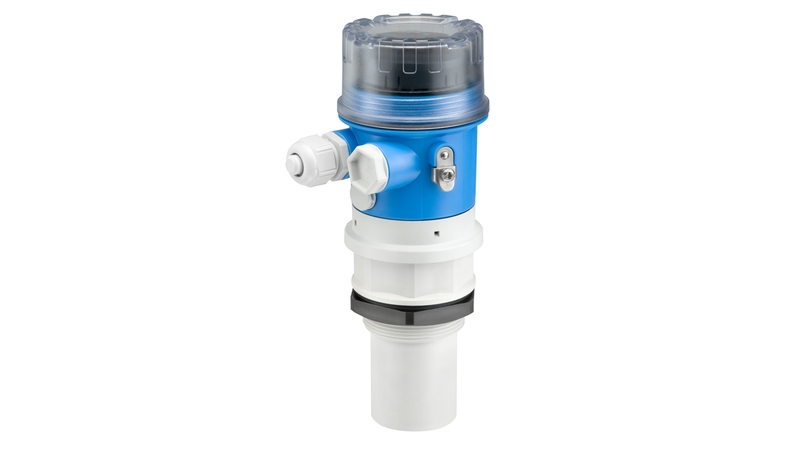

Endress+Hauser Endress+Hauser Ultrasonic measurementTime-of-FlightProsonic FMU30
Endress+Hauser Endress+Hauser Ultrasonic measurementTime-of-FlightProsonic FMU41

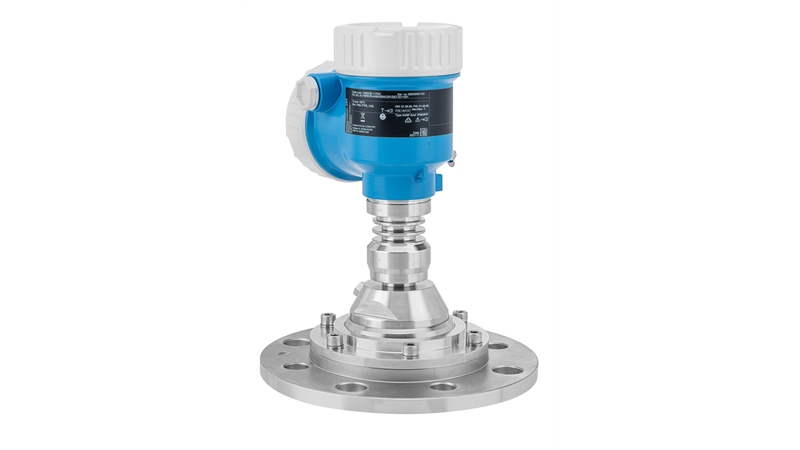

Endress+Hauser Endress+Hauser Micropilot FMR67B – 80 GHz radar sensor
