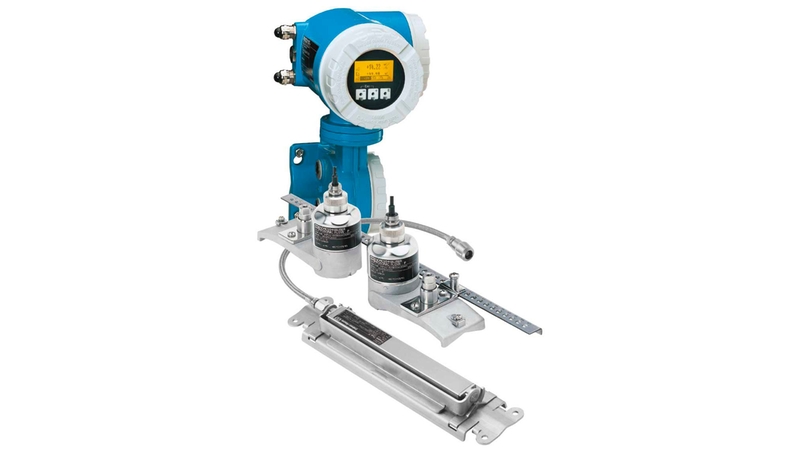

Endress+Hauser Prosonic Flow Clamp On 93P
Endress+Hauser 93P - Flow measurement - Power Supply: 85 to 260 V AC 20 to 55 V AC 16 to 62V DC; Measuring range: 0.3 to 10 m/s (1 to 33 ft/s); Measuring principle: Ultrasonic flow.
The Endress+Hauser 93P is part of the Flow measurement range in our industrial catalog. The manufacturer's published data for this part number specifies Power Supply: 85 to 260 V AC 20 to 55 V AC 16 to 62V DC and Measuring range: 0.3 to 10 m/s (1 to 33 ft/s).
IP67, type 4X for transmitter IP68 type 6P for sensors. Transmitter: IP67, type 4X enclosure
Key manufacturer data on file for this item includes Measuring principle: Ultrasonic flow; Outputs: 1x 4-20 mA HART 1x Pulse/frequency/switch output (passive); Display/Operation: 4 lines backlit display with three optical keys; Product safety: EAC marking; Hazardous area approvals: ATEX, FM/CSA, NEPSI, JPN; Metrological approvals and certificates: Flowmeter verification for DN15, 25, 40, 50 & 100 only; Max. measurement error: Volume flow: ±3% o.r. for DN15 ±2% o.r. for DN25 to DN200 ±2% o.r. above DN200; Max. process pressure: N/A; Ambient temperature range: -20 to +60 °C (-4 to +140 °F) -40 to +60 °C (-40 to +140 °F) optional; Sensor housing material: N/A; Transmitter housing material: Wall-mounted housing: powder-coated die-cast aluminum; Inputs: N/A. See the Specifications tab on this page for the full technical table.
| Ambient temperature range | -20 to +60 °C (-4 to +140 °F) -40 to +60 °C (-40 to +140 °F) optional |
|---|---|
| Degree of protection | IP67, type 4X for transmitter IP68 type 6P for sensors. Transmitter: IP67, type 4X enclosure |
| Digital communication | HART PROFIBUS PA Profibus DP FOUNDATION Fieldbus |
| Display/Operation | 4 lines backlit display with three optical keys |
| Hazardous area approvals | ATEX, FM/CSA, NEPSI, JPN |
| Inputs | N/A |
| Marine approvals and certificates | Marine certificate |
| Max. measurement error | Volume flow: ±3% o.r. for DN15 ±2% o.r. for DN25 to DN200 ±2% o.r. above DN200 |
| Max. process pressure | N/A |
| Measured variables | Volume flow channel 1&2, average volume flow, volume flow difference, sound velocity, flow velocity, totalizer |
| Measuring principle | Ultrasonic flow |
| Measuring range | 0.3 to 10 m/s (1 to 33 ft/s) |
| Medium temperature range | DN15 to 65 -40 to +100°C (-40 +212 °F) -40 to +150°C (-40 +302 °F) option DN50 to 4000 -40 to +80°C (-40 +276 °F) -40 to +170°C (-40 +338 °F) option |
| Metrological approvals and certificates | Flowmeter verification for DN15, 25, 40, 50 & 100 only |
| Nominal diameter range | Single channel, 1 or 2 paths : DN15 to 4000 (1/2 to 160") Dual channel, 1 or 2 paths : DN15 to 4000 (1/2 to 160") |
| Other approvals and certificates | Flowmeter verification for DN15, 25, 40, 50 & 100 only Marine certificate EAC marking |
| Outputs | 1x 4-20 mA HART 1x Pulse/frequency/switch output (passive) |
| Power Supply | 85 to 260 V AC 20 to 55 V AC 16 to 62V DC |
| Product headline | std_productprofile_product_usp_8209. std_productprofile_product_usp2_58665_1571899493. std_productprofile_product_field_of_application_8210. |
| Product safety | EAC marking |
| Sensor features | std_productprofile_product_benefits_8212. Long-term stable signal – maintenance-free permanent mounting from outside with coupling pads. Process transparency – diagnostic capability. std_successorproducts_product_differentiating_tech_features_58667_1571900174. Wide nominal diameter range: DN 15 to 4000 (½ to 160"). std_successorproducts_product_differentiating_tech_features_58669_1571900174. |
| Sensor housing material | N/A |
| Transmitter features | std_productprofile_product_benefits_8192. std_productprofile_product_benefits_8193. std_productprofile_product_benefits_58666_1571901005. std_successorproducts_product_differentiating_tech_features_58672_1571901893. std_successorproducts_product_differentiating_tech_features_58668_1571902040. std_successorproducts_product_differentiating_tech_features_58670_1571902090. |
| Transmitter housing material | Wall-mounted housing: powder-coated die-cast aluminum |
| Wetted materials | Clamp on system: Sensor holder 1.4308/CF-8 Sensor housing 1.4301/304 Strapping bands 1.4301/304 |
Frequently Asked Questions
How do I get pricing for 93P?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 93P?
93P is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 93P?
Key specifications include Ambient temperature range: -20 to +60 °C (-4 to +140 °F) -40 to +60 °C (-40 to +140 °F) optional; Degree of protection: IP67, type 4X for transmitter IP68 type 6P for sensors. Transmitter: IP67, type 4X enclosure; Digital communication: HART PROFIBUS PA Profibus DP FOUNDATION Fieldbus; Display/Operation: 4 lines backlit display with three optical keys. The full specification table on this page lists every published attribute for this part.
How quickly can 93P ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

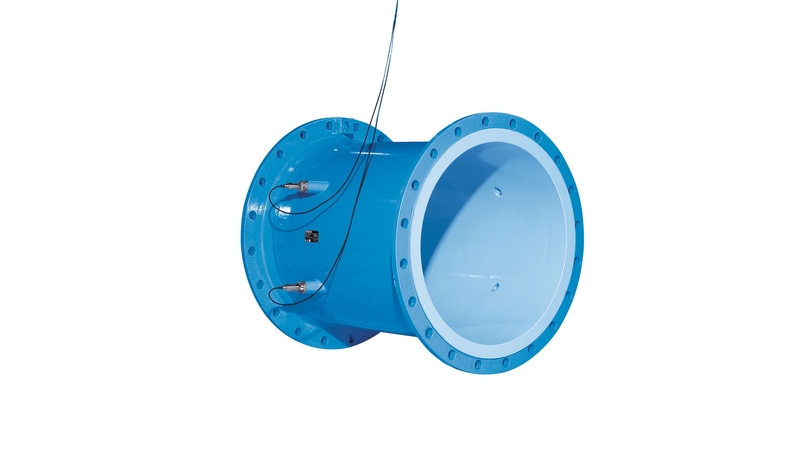

Endress+Hauser Endress+Hauser Prosonic Flow Inline 93C

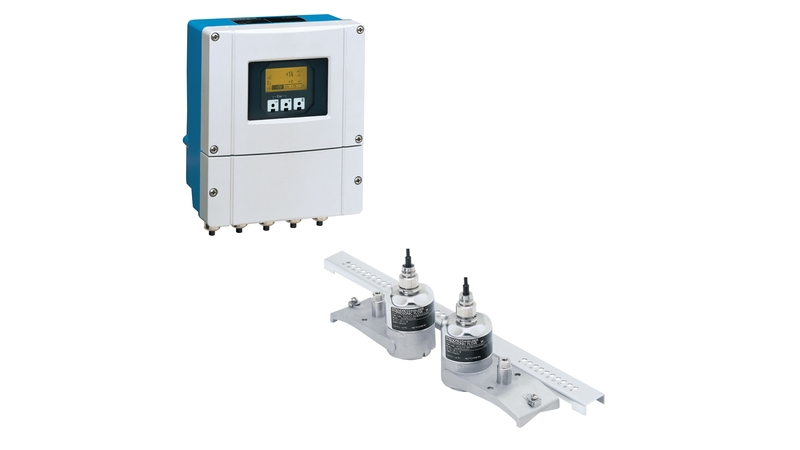

Endress+Hauser Endress+Hauser Prosonic Flow Clamp On 93W
Endress+Hauser Endress+Hauser Prosonic Flow Clamp-On 91W

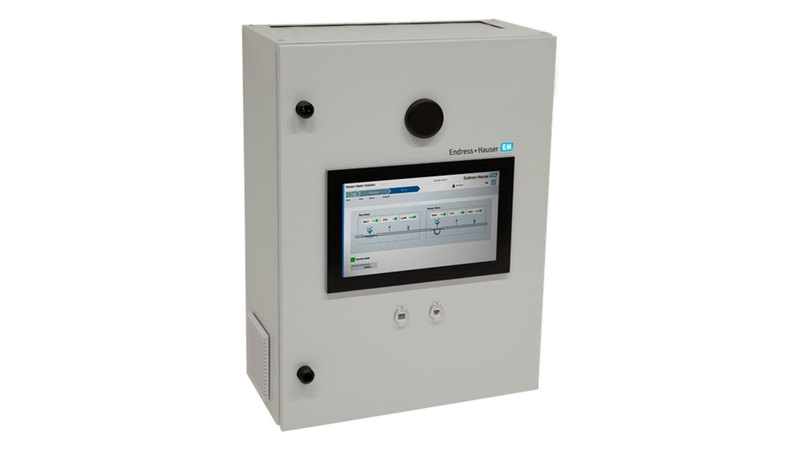

Endress+Hauser Endress+Hauser Master meter system DSK1MM
