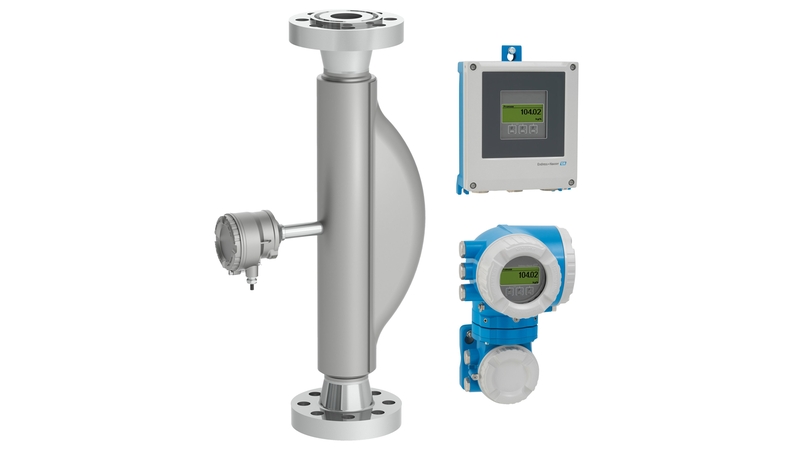

Endress+Hauser Proline Promass O 500 Coriolis flowmeter
Endress+Hauser 8O5B - Flow measurement - Power Supply: DC 24 V AC 100 to 230 V AC 100 to 230 V / DC 24 V (non-hazardous area); Measuring range: 0 to 2 200 000 kg/h (0 to 80.
Endress+Hauser 8O5B is a Flow measurement catalog item from Endress+Hauser. The manufacturer's published data for this part number specifies Power Supply: DC 24 V AC 100 to 230 V AC 100 to 230 V / DC 24 V (non-hazardous area) and Measuring range: 0 to 2 200 000 kg/h (0 to 80 850 lb/min).
Sensor remote version (standard): IP66/67, type 4X enclosure Sensor remote version (option): IP69. Transmitter remote version: IP66/67, Type 4X enclosure
The specification set recorded for this part number covers Measuring principle: Coriolis; Nominal diameter range: DN 80 to 250 (3 to 10"); Product safety: CE, C-tick, EAC marking; Hazardous area approvals: ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, KC; Material certificates: 3.1 material NACE MR0175/MR0103, PMI; welding test acc. to EN ISO, ASME, NORSOK; Max. process pressure: PN 250, Class 1500; Medium temperature range: –40 to +205 °C (–40 to +401 °F); Ambient temperature range: Standard: –40 to +60 °C (–40 to +140 °F) Option: –50 to +60 °C (–58 to +140 °F); Transmitter housing material: AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; Polycarbonat; Inputs: Status input 4-20 mA input; Pressure approvals and certificates: PED, CRN, AD 2000; Marine approvals and certificates: LR approval, DNV approval, ABS approval, BV approval, CCS approval. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature range | Standard: –40 to +60 °C (–40 to +140 °F) Option: –50 to +60 °C (–58 to +140 °F) |
|---|---|
| Degree of protection | Sensor remote version (standard): IP66/67, type 4X enclosure Sensor remote version (option): IP69. Transmitter remote version: IP66/67, Type 4X enclosure |
| Digital communication | HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, MODBUS TCP over Ethernet-APL, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA |
| Display/Operation | 4-line backlit display with touch control (operation from outside) Configuration via local display and operating tools possible |
| Functional safety | Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511 |
| Hazardous area approvals | ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, KC |
| Inputs | Status input 4-20 mA input |
| Marine approvals and certificates | LR approval, DNV approval, ABS approval, BV approval, CCS approval |
| Material certificates | 3.1 material NACE MR0175/MR0103, PMI; welding test acc. to EN ISO, ASME, NORSOK |
| Max. measurement error | Mass flow (liquid): ±0.10 % (standard), 0.05 % (option) Volume flow (liquid): ±0.10 % Mass flow (gas): ±0.35 % Density (liquid): ±0.0005 g/cm³ |
| Max. process pressure | PN 250, Class 1500 |
| Measured variables | Mass flow, density, temperature, volume flow, corrected volume flow (API tables), reference density, concentration |
| Measuring principle | Coriolis |
| Measuring range | 0 to 2 200 000 kg/h (0 to 80 850 lb/min) |
| Medium temperature range | –40 to +205 °C (–40 to +401 °F) |
| Metrological approvals and certificates | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation) MI-005 Liquids other than water (Hydrocarbons), Cryogenic Liquids, LPG OIML R117 Liquids other than water, Cryogenic Liquids, LPG MI-002, PTB |
| Nominal diameter range | DN 80 to 250 (3 to 10") |
| Outputs | 4 outputs: 4-20 mA HART (active/passive) 4-20 mA WirelessHART 4-20 mA (active/passive) Pulse/frequency/switch output (active/passive) Double pulse output (active/passive) Relay output |
| Power Supply | DC 24 V AC 100 to 230 V AC 100 to 230 V / DC 24 V (non-hazardous area) |
| Pressure approvals and certificates | PED, CRN, AD 2000 |
| Product headline | Robust high-pressure flowmeter, as remote version with up to 4 I/Os. For premium accuracy at highest process pressures, fully suitable for offshore conditions. |
| Product safety | CE, C-tick, EAC marking |
| Sensor features | Maximum safety – highest resistance to stress corrosion cracking. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs. Measuring tube in 25Cr Duplex, 1.4410 (UNS S32750). Process pressure up to PN 250 (Class 1500). Nominal diameter: DN 80 to 250 (3 to 10"). |
| Sensor housing material | 1.4404 (316L), highest corrosion resistance Sensor connection housing (standard): AlSi10Mg, coated Sensor connection housing (option): 1.4301 (304); 1.4404 (316L); 1.4409 (CF3M) similar to 316L |
| Transmitter features | Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology. Remote version with up to 4 I/Os. Backlit display with touch control and WLAN access. Standard cable between sensor and transmitter. |
| Transmitter housing material | AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; Polycarbonat |
| Wetted materials | Measuring tube: 25Cr duplex (Super Duplex), 1.4410 (UNS S32750) Connection: 25Cr duplex (Super Duplex), 1.4410 (F53) |
Frequently Asked Questions
How do I get pricing for 8O5B?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 8O5B?
8O5B is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 8O5B?
Key specifications include Ambient temperature range: Standard: –40 to +60 °C (–40 to +140 °F) Option: –50 to +60 °C (–58 to +140 °F); Degree of protection: Sensor remote version (standard): IP66/67, type 4X enclosure Sensor remote version (option): IP69. Transmitter remote version: IP66/67, Type 4X enclosure; Digital communication: HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, MODBUS TCP over Ethernet-APL, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA; Display/Operation: 4-line backlit display with touch control (operation from outside) Configuration via local display and operating tools possible. The full specification table on this page lists every published attribute for this part.
How quickly can 8O5B ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Endress+Hauser Endress+Hauser Proline Promass O 300 Coriolis flowmeter

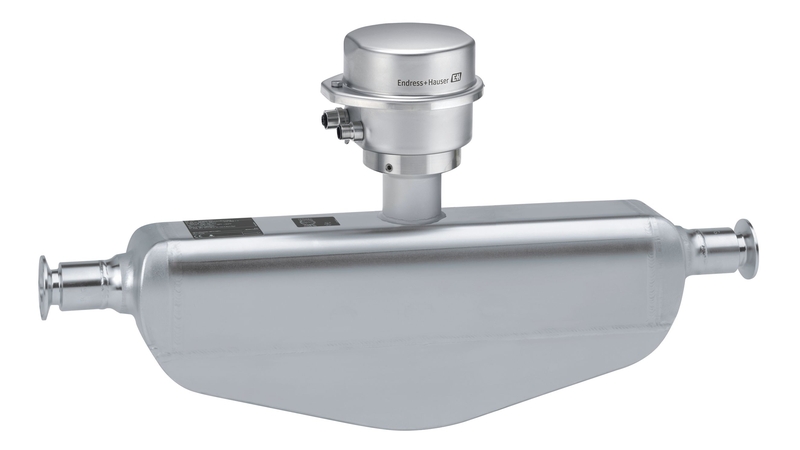

Endress+Hauser Endress+Hauser Proline Promass P 100 Coriolis flowmeter
Endress+Hauser Endress+Hauser Proline Promass O 100 Coriolis flowmeter

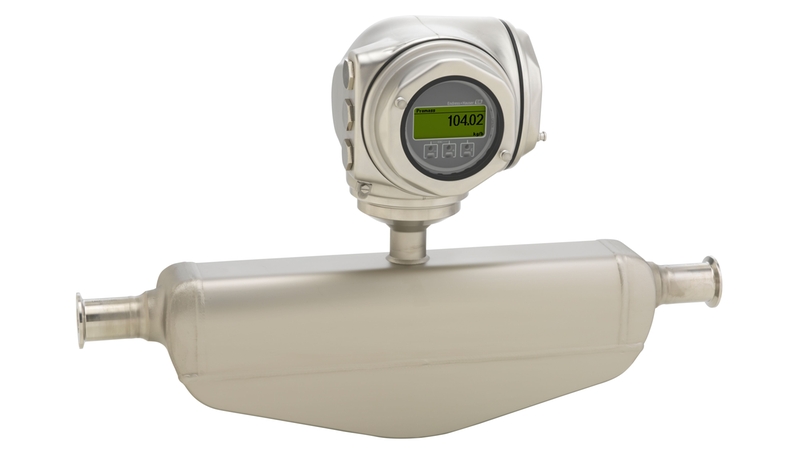

Endress+Hauser Endress+Hauser Proline Promass P 300 Coriolis flowmeter
