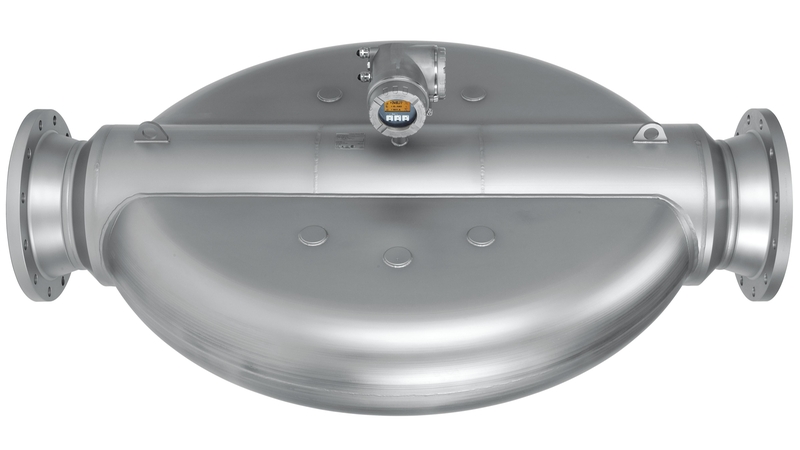

Endress+Hauser Promass 83X
Endress+Hauser 83X - Flow measurement - Degree of protection: IP67, type 4X enclosure. Remote transmitter: IP67, type 4X enclosure; Power Supply: DC 16 to 62 V AC 85 to 260 V (45 to 65 Hz) AC 20 to.
Endress+Hauser 83X is a Flow measurement catalog item from Endress+Hauser. The manufacturer's published data for this part number specifies Degree of protection: IP67, type 4X enclosure. Remote transmitter: IP67, type 4X enclosure and Power Supply: DC 16 to 62 V AC 85 to 260 V (45 to 65 Hz) AC 20 to 55 V (45 to 65 Hz).
Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511
Published specifications for this part include Measuring range: 0 to 4100 t/h (0 to 4520 tn. sh./h); Measuring principle: Coriolis; Nominal diameter range: DN 300 to 400 (12 to 16"); Product safety: CE, C-tick, EAC marking; Hazardous area approvals: ATEX, IECEx, FM, CSA, NEPSI; Material certificates: 3.1 material NACE MR0175/MR0103, PMI; welding test acc. to EN, ASME,NORSOK; Wetted materials: Measuring tube: 1.4404 (316/316L) Connection: 1.4404 (316/316L); Max. process pressure: PN 100, Class 600; Medium temperature range: –50 to +180 °C (–58 to +356 °F); Ambient temperature range: Standard: –20 to +60 °C (–4 to +140 °F) Option: –40 to +60 °C (–40 to +140 °F); Sensor housing material: 1.4404 (316L), highest corrosion resistance; Transmitter housing material: Powder‐coated die‐cast aluminium 1.4301 (304), sheet CF3M (316L), cast. See the Specifications tab on this page for the full technical table.
| Ambient temperature range | Standard: –20 to +60 °C (–4 to +140 °F) Option: –40 to +60 °C (–40 to +140 °F) |
|---|---|
| Degree of protection | IP67, type 4X enclosure. Remote transmitter: IP67, type 4X enclosure |
| Digital communication | HART, PROFIBUS PA/DP, FOUNDATION Fieldbus, Modbus RS485, EtherNet/IP |
| Display/Operation | 4‐line backlit display with touch control (operation from outside) Configuration via local display and operating tools possible |
| Functional safety | Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511 |
| Hazardous area approvals | ATEX, IECEx, FM, CSA, NEPSI |
| Inputs | 2 modular inputs: Status 0‐20 mA (active)/4‐20 mA (active/passive) |
| Marine approvals and certificates | Marine approval |
| Material certificates | 3.1 material NACE MR0175/MR0103, PMI; welding test acc. to EN, ASME,NORSOK |
| Max. measurement error | Mass flow (liquid): ±0.1 (standard), 0.05 % (option) Volume flow (liquid): ±0.1 % Mass flow (gas): ±0.35 % Density (liquid): ±0.0005 g/cm³ |
| Max. process pressure | PN 100, Class 600 |
| Measured variables | Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration |
| Measuring principle | Coriolis |
| Measuring range | 0 to 4100 t/h (0 to 4520 tn. sh./h) |
| Medium temperature range | –50 to +180 °C (–58 to +356 °F) |
| Metrological approvals and certificates | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR |
| Nominal diameter range | DN 300 to 400 (12 to 16") |
| Other approvals and certificates | 3.1 material, calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR, SIL, marine PED, CRN, AD 2000 NACE MR0175/MR0103, PMI; welding test acc. to EN, ASME, NORSOK |
| Outputs | 4 modular outputs: 0‐20 mA (active)/4‐20 mA (active/passive) Pulse/frequency/switch output (passive) Relay |
| Power Supply | DC 16 to 62 V AC 85 to 260 V (45 to 65 Hz) AC 20 to 55 V (45 to 65 Hz) |
| Pressure approvals and certificates | PED, CRN, AD 2000 |
| Product headline | The highest capacity four‐tube flowmeter with extended transmitter functionality. For highest flow rates and outstanding performance in on/offshore applications in the oil & gas industry. |
| Product safety | CE, C-tick, EAC marking |
| Sensor features | Increased profit – single installation point providing premium accuracy for large quantities. Fewer process measuring points – multivariable measurement (flow, density, temperature). Spacesaving installation – no in/outlet run needs. Nominal diameter: DN 300 to 400 (12 to 16"). Four‐tube system with low pressure drop. |
| Sensor housing material | 1.4404 (316L), highest corrosion resistance |
| Transmitter features | Quality – software for filling, density & concentration, advanced diagnostics. Flexible data transfer options – numerous communication types. Automatic recovery of data for servicing. 4‐line backlit display with touch control. Device in compact or remote version. |
| Transmitter housing material | Powder‐coated die‐cast aluminium 1.4301 (304), sheet CF3M (316L), cast |
| Wetted materials | Measuring tube: 1.4404 (316/316L) Connection: 1.4404 (316/316L) |
Frequently Asked Questions
How do I get pricing for 83X?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 83X?
83X is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 83X?
Key specifications include Ambient temperature range: Standard: –20 to +60 °C (–4 to +140 °F) Option: –40 to +60 °C (–40 to +140 °F); Degree of protection: IP67, type 4X enclosure. Remote transmitter: IP67, type 4X enclosure; Digital communication: HART, PROFIBUS PA/DP, FOUNDATION Fieldbus, Modbus RS485, EtherNet/IP; Display/Operation: 4‐line backlit display with touch control (operation from outside) Configuration via local display and operating tools possible. The full specification table on this page lists every published attribute for this part.
How quickly can 83X ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

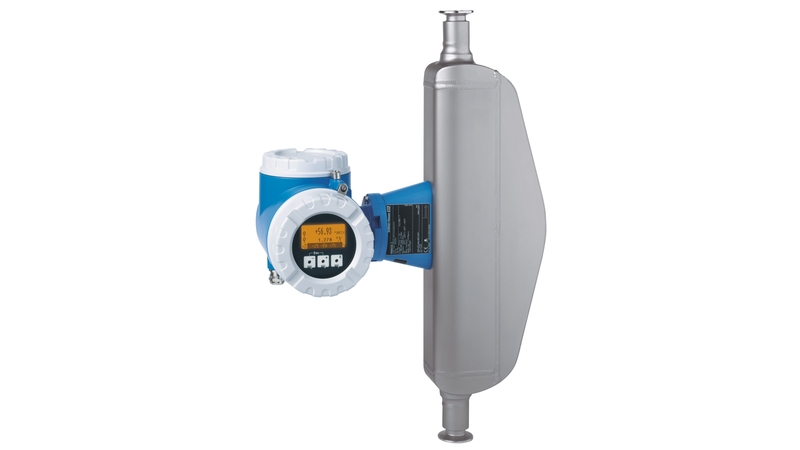

Endress+Hauser Endress+Hauser Promass 83S

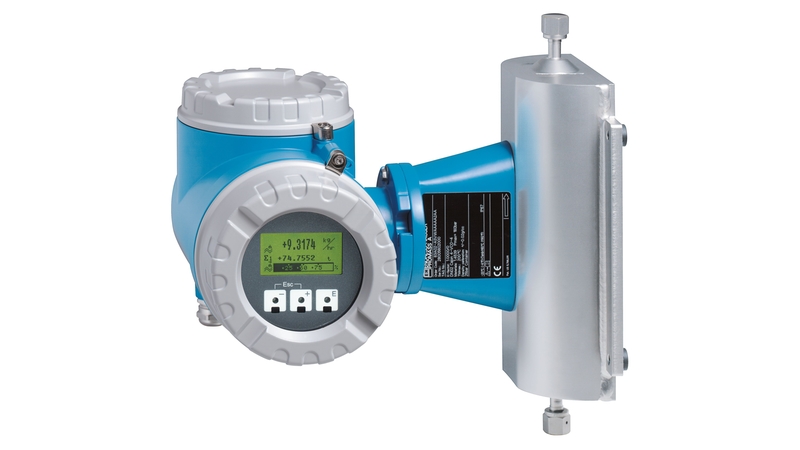

Endress+Hauser Endress+Hauser Promass 84A

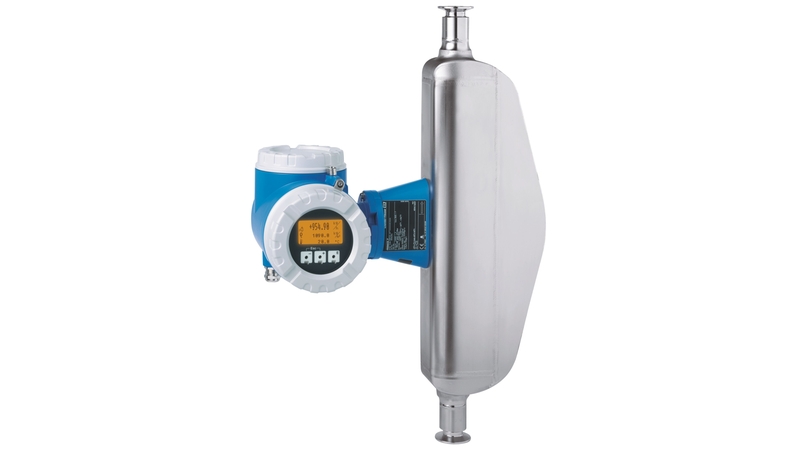

Endress+Hauser Endress+Hauser Promass 83P

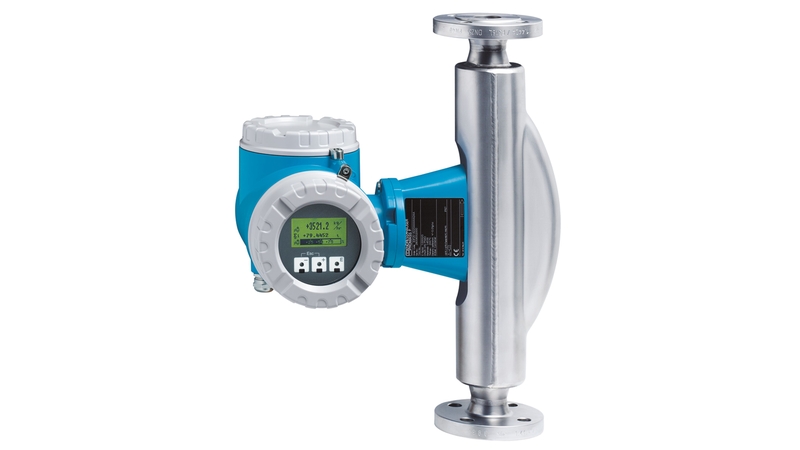

Endress+Hauser Endress+Hauser Promass 84F
